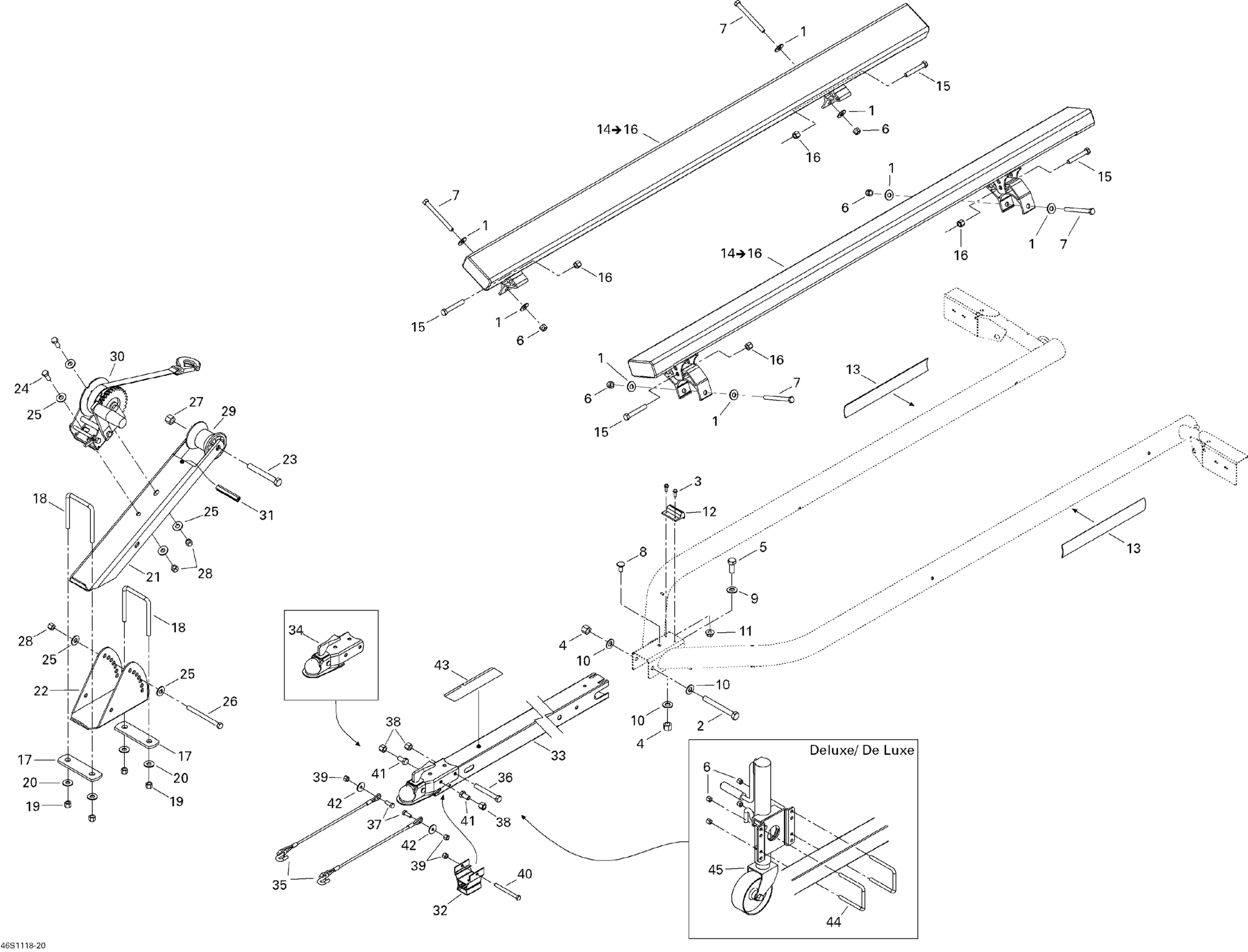

Sea-doo Trailer (Advanced Tec I De Luxe) 2011 09- Utilities Diagram

#

Description
Price

1

FLAT WASHER - Call your local BRP dealership

269800300

Unavailable

2

HEX. BOLT 1/2'' - 13 X 4 1/2'' - Call your local BRP dealership

269800307

Unavailable

3

SCREW - Call your local BRP dealership

269800136

Unavailable

4

CENTERLOCK NUT 1/2-1 - Call your local BRP dealership

269800310

$1.09

5

HEX. BOLT 1/2''-13 X 1-1/4'' - Call your local BRP dealership This part replaces 269800137.

269800308

Unavailable

6

CENTERLOCK NUT - Call your local BRP dealership

269800299

Unavailable

7

HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership

291003301

$4.00

8

CARRIAGE BOLT 3/8''-16 X 7/8'' - Call your local BRP dealership

269800311

Unavailable

9

WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139.

269800309

$6.79

10

WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139.

269800309

$6.79

11

CENTERLOCK NUT 3/8'' - Call your local BRP dealership

269800312

Unavailable

12

KEEL PROTECTOR - Call your local BRP dealership

269800173

Unavailable

13

Decal

219903242

Unavailable

14

GALVANIZED BUNK - Call your local BRP dealership | Includes 14 to 16, Galvanized Model

269800171

Unavailable

14

PAINT BUNK - Call your local BRP dealership | Includes 14 to 16, Black Model

269800179

Unavailable

15

HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership This part replaces 269800106.

269800316

Unavailable

16

LOCK NUT - Call your local BRP dealership

269800091

Unavailable

17

BAKING PLATE - Call your local BRP dealership

269800175

Unavailable

18

U BOLT - Call your local BRP dealership This part replaces 269800400.

269800138

$11.49

19

CENTERLOCK NUT - Call your local BRP dealership

269800299

Unavailable

20

LARGE WASHER OD - Call your local BRP dealership

269800306

$6.79

21

MOUNT CHANNEL SUPPORT, GALV - Call your local BRP dealership | Galvanized Model

269800076

Unavailable

21

SUPPORT_WINCH PAINTED - Call your local BRP dealership | Black Model This part replaces 269800177.

269801298

Unavailable

22

ADJUSTABLE WINCH SUPPORT GALVANIZED - Call your local BRP dealership | Galvanized Model This part replaces 269800074.

269800677

Unavailable

22

WINCH SUPPORT, BLACK - Call your local BRP dealership | Black Model

269800178

Unavailable

23

HEX. BOLT 1/2''-13 X 4'' - Call your local BRP dealership

269800401

Unavailable

24

HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership

269800305

$1.09

25

FLAT WASHER - Call your local BRP dealership

269800300

Unavailable

26

HEX. BOLT 3/8''-16 X 4 1/2'' - Call your local BRP dealership

269800317

$13.49

27

CENTERLOCK NUT 1/2-1 - Call your local BRP dealership

269800310

$1.09

28

CENTERLOCK NUT - Call your local BRP dealership

269800299

Unavailable

29

BOW ROLLER - Call your local BRP dealership

269800169

$20.99

30

WINCH - Call your local BRP dealership

269800078

Unavailable

31

GROMMET - Call your local BRP dealership

296000429

$8.69

32

TONGUE STAND - Call your local BRP dealership This part replaces 262000049.

295100594

$28.99

33

Tongue, Galvanized | Galvanized Model

262000048

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

COUPLER - Call your local BRP dealership

262000044

Unavailable

35

SAFETY CABLE - Call your local BRP dealership

262000045

Unavailable

36

HEX. BOLT 1/2''-13 X 4'' - Call your local BRP dealership

269800401

Unavailable

37

HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership

269800305

$1.09

38

CENTERLOCK NUT 1/2-1 - Call your local BRP dealership

269800310

$1.09

39

CENTERLOCK NUT - Call your local BRP dealership

269800299

Unavailable

40

HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership

291003301

$4.00

41

HEXAGONAL BOLT - Call your local BRP dealership This part replaces 269800402.

269800132

$5.99

42

LARGE WASHER OD - Call your local BRP dealership

269800306

$6.79

43

WARNING DECAL - Call your local BRP dealership This part replaces 219903238.

219904010

Unavailable

44

U BOLT - Call your local BRP dealership This part replaces 269800400.

269800138

$11.49

45

SWIVEL JACK - Call your local BRP dealership This part replaces 295100399.

295100731

$100.49
