- Trailer Advanced Tec 1 2010
09- Frame (North America, International)

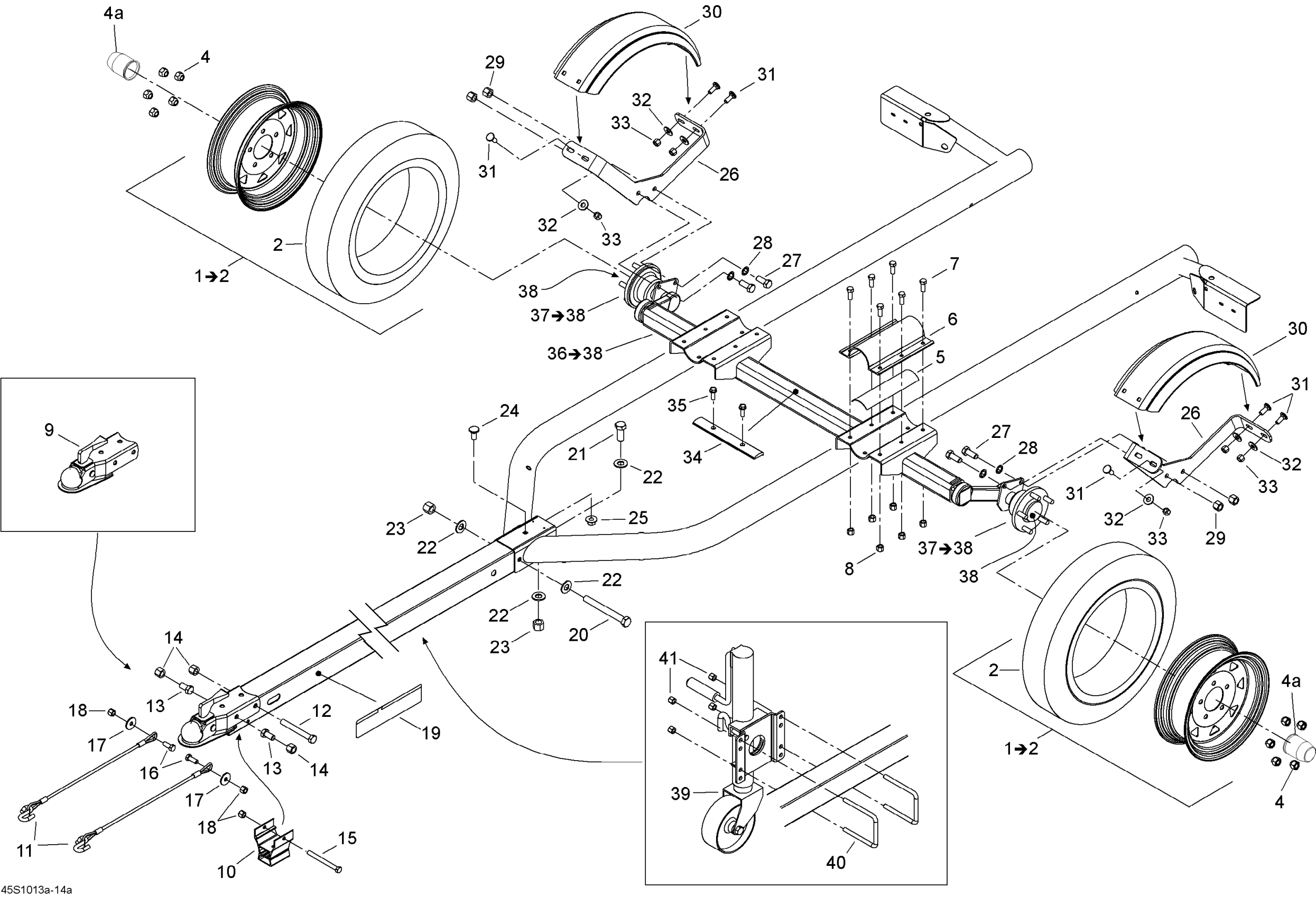

Sea-doo Trailer Advanced Tec 1 2010 09- Frame (North America, International) Diagram
#
1
WHEEL ASS'Y 12 - Call your local BRP dealership | Black Model, Includes 1 to 2
295100410
$128.49
1
WHEEL ASS'Y 12 - Call your local BRP dealership | Galvanized Model, Includes 1 to 2
295100409
$119.99
2
TIRE_4,80X12B - Call your local BRP dealership
271001678
$91.99
2
TIRE_4,80X12B - Call your local BRP dealership
271001678
$91.99
4
NUT - Call your local BRP dealership
269800122
$3.29
4a
CHROME CAP - Call your local BRP dealership
269800119
$29.99
5
Gasket
269800144
Unavailable
6
Clamp
262000043
Unavailable
7
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership
269800305
$1.09
8
LOCK NUT - Call your local BRP dealership
269800091
Unavailable
9
COUPLER - Call your local BRP dealership
262000044
Unavailable
10
TONGUE STAND - Call your local BRP dealership This part replaces 262000049.
295100594
$28.99
11
SAFETY CABLE - Call your local BRP dealership
262000045
Unavailable
12
HEX. BOLT 1/2''-13 X 4'' - Call your local BRP dealership
269800401
Unavailable
13
HEXAGONAL BOLT - Call your local BRP dealership This part replaces 269800402.
269800132
$5.99
14
Lock Nut
269800130
Unavailable
15
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership
291003301
$4.00
16
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership
269800305
$1.09
17
WASHER - Call your local BRP dealership
269800184
$13.99
17
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
18
LOCK NUT - Call your local BRP dealership
269800091
Unavailable
19
WARNING DECAL - Call your local BRP dealership This part replaces 219903238.
219904010
Unavailable
20
HEX. BOLT 1/2'' - 13 X 4 1/2'' - Call your local BRP dealership
269800307
Unavailable
21
HEX. BOLT 1/2''-13 X 1-1/4'' - Call your local BRP dealership This part replaces 269800137.
269800308
Unavailable
22
WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139.
269800309
$6.79
23
Lock Nut
269800130
Unavailable
24
CARRIAGE BOLT 3/8''-16 X 7/8'' - Call your local BRP dealership
269800311
Unavailable
25
CENTERLOCK NUT 3/8'' - Call your local BRP dealership
269800312
Unavailable
26
Bracket | Galvanized Model
262000041
Unavailable
26
BRACKET - Call your local BRP dealership | Black Model
262000067
Unavailable
27
Hexagonal Bolt
269800185
Unavailable
28
LOCK WASHER - Call your local BRP dealership
269800161
Unavailable
29
Lock Nut
269800130
Unavailable
30
WHEEL FENDER, GREY - Call your local BRP dealership
262000042
Unavailable
31
Carriage Bolt
269800186
Unavailable
32
FLAT WASHER - Call your local BRP dealership
269800300
Unavailable
33
LOCK NUT - Call your local BRP dealership
269800091
Unavailable
34
Protector
291003015
Unavailable
35
SCREW - Call your local BRP dealership
269800136
Unavailable
36
SUSPENSION ASS'Y - Call your local BRP dealership | Includes 2 to 5
262000040
Unavailable
37
HUB ASS'Y - Call your local BRP dealership | Includes 4 to 5
296000319
Unavailable
38
HUB DUST CAP - Call your local BRP dealership This part replaces 296000320.
271001851
Unavailable
39
Not Available As Spare Parts
XXX
Unavailable
40
Not Available As Spare Parts
XXX
Unavailable
41
Not Available As Spare Parts
XXX
Unavailable
