REAR TORQUE ARM TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231B014)

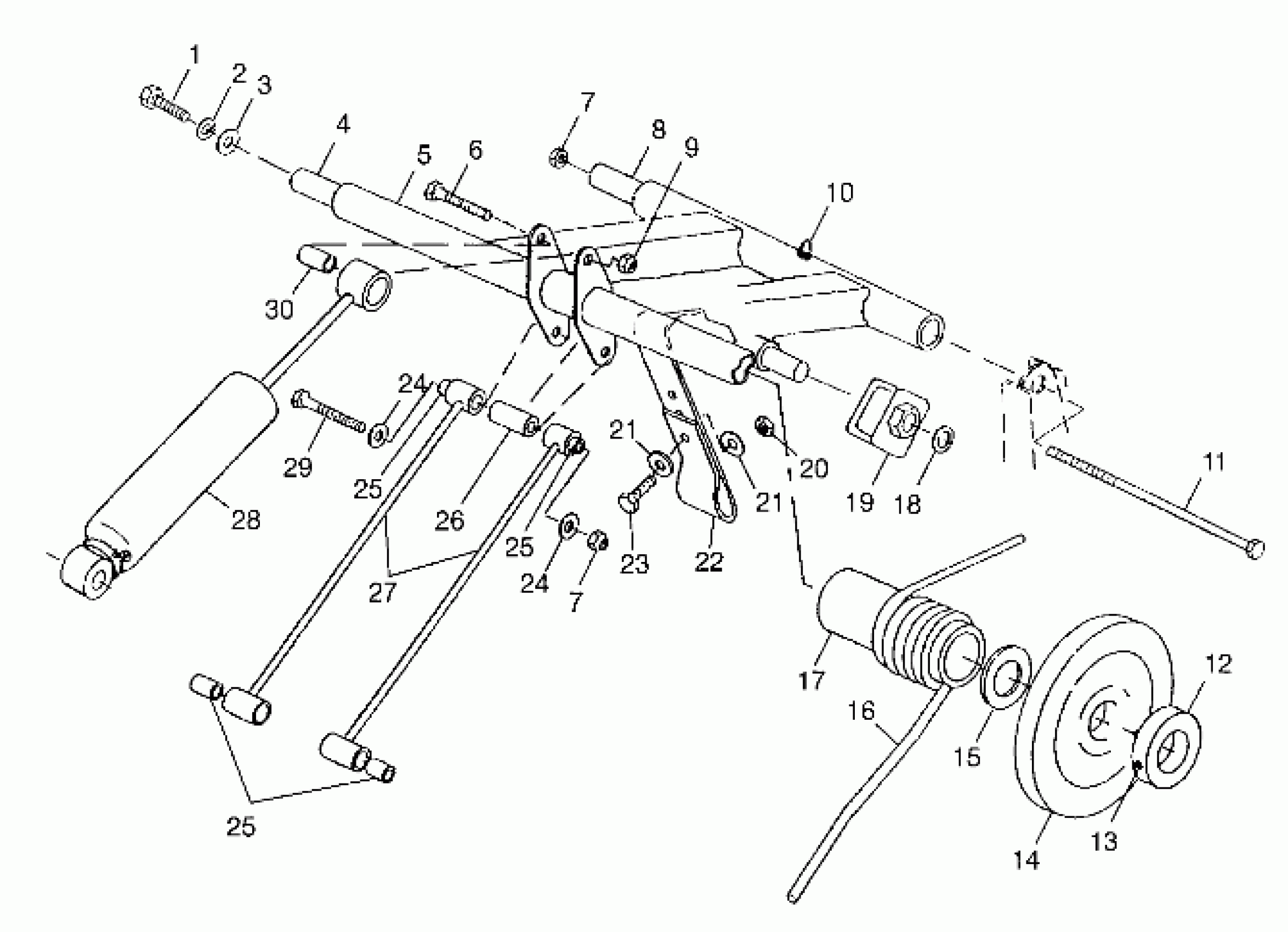

Polaris TRAIL TOURING - 0982362 REAR TORQUE ARM TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231B014) Diagram
#
1
SCREW,(10)
7517247
$3.19
2
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
3
WASHER(10)
7555893
$1.49
4
SHAFT,R.TORQUE,UPPER
5020845
$63.99
5
ARM,R.TORQUE,BLK
1541152-067
Unavailable
6
BOLT(10) Substituted by 7515492
7512410
Unavailable
7
NUT LOCK(10)
7542411
$3.19
7
NUT LOCK(10)
7542411
$3.19
8
Shaft
5333536
Unavailable
9
NUT FLEX-LOC(10)
7542303
$6.39
10
ZERK,FITTING,THREADED(10)
7080433
$1.49
11
Screw
7517232
$19.99
12
COLLAR,BRG LOCK
5010404
Unavailable
13
SCREW-SET(10)
7512257
$3.99
14
Wheel, Carrier
1543023
Unavailable
15
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
16
SPRING,LH,TORS(.421DIA) (.421) (Opt.)
7041461-067
Unavailable
16
SPRING,RH,TORS(.437/77) (.437) (Std.)
7041466-067
$107.99
16
SPRING,LH,TORS(.437/77) (.437) (Std.)
7041465-067
Unavailable
16
SPRING,RH,TORS(.406DIA) (.406) (Opt.)
7041464-067
Unavailable
16
SPRING,RH,TORS(.421DIA) (.421) (Opt.)
7041462-067
$113.32
16
SPRING,LH,TORS(.406DIA) (.406) (Opt.)
7041463-067
Unavailable
17
SLEEVE,TORSION SPRING
5431923
$6.39
18
CLIP-PUSH ON
7080394
$2.39
19
ROLLER, SPRING ADJ.
5431168
Unavailable
20
NUT-5/16-18 NYLOK-Y
7542324
$1.49
21
WASHER(10)
7555716
$1.59
21
WASHER(10)
7555716
$1.59
22
STRAP-LIMITER,RR,SA
5411062
Unavailable
23
SCREW(10)
7512310
$2.39
24
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
24
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
25
BUSHING,PIVOT TUBE
5020561
$1.59
25
BUSHING,PIVOT TUBE
5020561
$1.59
25
BUSHING,PIVOT TUBE
5020561
$1.59
26
Spacer
5333559
Unavailable
27
ROD,SHOCK,(XTRA 10)133
1541021-067
Unavailable
28
SHOCK,GAS,R.TRACK
7041438
Unavailable
29
BOLT(10)
7515472
$2.39
30
BUSHING
5010422
$11.99
