- TRAIL TOURING - 0982362
HOOD TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231A013)

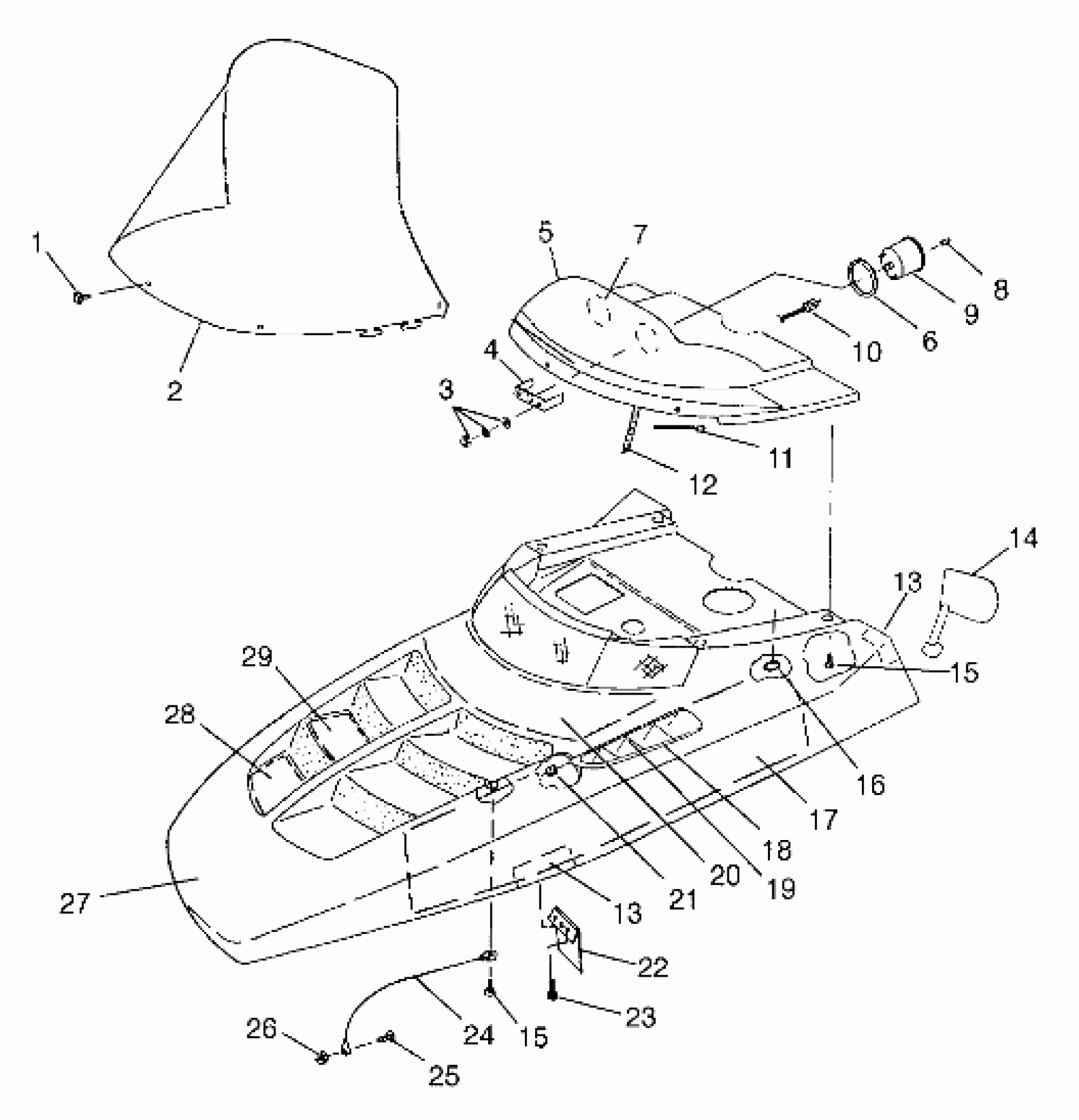

Polaris TRAIL TOURING - 0982362 HOOD TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231A013) Diagram
#
1
RIVET,PLASTI-LOC.(50)
7621509
$1.49
2
WNDSHLD,HI CLEAR(TRL.DLX/XLT TOUR)
5431465
$159.99
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
BRKT,TACH/SPEEDO,5"
3280210
$28.32
5
HOUSING ASM,INSTR. (Incl. Warning Decals)
2652153
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
7
PLUG,HOLE,(SKS)
7080444
Unavailable
8
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
9
BULB TAILLIGHT(10)
4030015
$4.03
9
SPEEDO,BACKLIT,190 KPH (Euro)
3280212
$131.99
9
SPEEDO,BACKLIT (US)
3280204
Unavailable
10
CABLE,SPEEDO.
3280094
$60.70
11
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
12
HARNESS, H/L
2460527
Unavailable
13
FOIL,TAPE,1.5X6
5810949
$3.19
13
FOIL,TAPE,1.5X6
5810949
$3.19
14
NUT, WELL(10)
7541901
$6.39
14
SCREW(10)
7512040
Unavailable
14
MIRRORS,DELUXE,PR (Pair)
2871531
$69.99
15
SCREW(10)
7512070
Unavailable
15
SCREW(10)
7512070
Unavailable
16
RETAINER,WINDSHIELD,(10)
5410970
$1.49
17
FOAM,HOOD,RH.
5811047
Unavailable
17
FOIL,HOOD,RH.
5811048
Unavailable
17
FOAM,HOOD,LH.
5811046
Unavailable
18
VENT,LH,HD.TEAL,MET.
5431763-168
Unavailable
18
VENT,RH,HD.TEAL,MET.
5431764-168
Unavailable
19
FOIL,LOUVER
5811090
Unavailable
20
FOAM,HOOD,CTR.
5810875
Unavailable
21
NUT, PUSH-ON(10)
7670068
$2.39
22
BAFFLE,FRONT
5240552
Unavailable
23
SCREW(10)
7511861
Unavailable
24
CABLE,HOOD RETAINER
7080521
$24.27
25
SCREW(10)
7511930
$2.39
26
NUT FLEX LOC(10)
7541906
$3.19
27
HOOD,F/C,TEAL,FOAM/FOIL (Incl. 13, 17-20, 28, 29)
2631630-168
Unavailable
28
FOIL,HOOD,FRONT
5810874
Unavailable
29
FOIL,HOOD,CTR.
5810873
Unavailable
