ENGINE MOUNTING TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231C005)

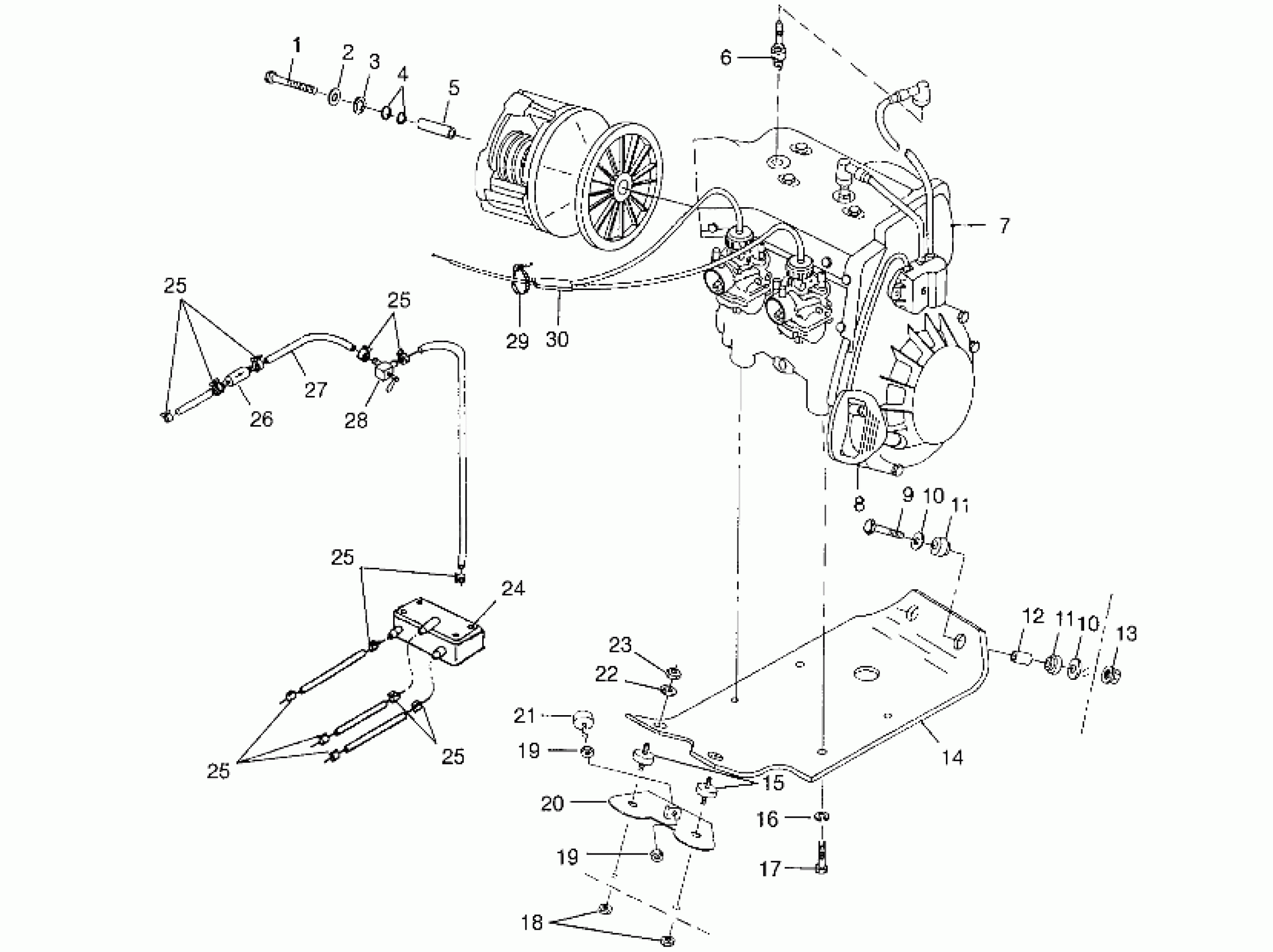

Polaris TRAIL TOURING - 0982362 ENGINE MOUNTING TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231C005) Diagram
#
Description
Price
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
SPARKPLUG (10)
3070156
$3.99
7
ENG.(S.B.)EC50PM-01/02 [No Longer Available] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization
3084625
Unavailable
8
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
9
SCREW(10)
7512530
$5.59
10
WASHER(10)
7555740
$1.59
10
WASHER(10)
7555740
$1.59
11
MOUNT, ENGINE
5410390
Unavailable
11
MOUNT, ENGINE
5410390
Unavailable
12
TUBE,SPACER
5333354
Unavailable
13
NUT,FLANGE(10)
7542522
$5.59
14
PLATE,MTR.MT,LWT
5131772
$108.99
15
MOUNT,ENG.
3110061
$84.99
16
WASHER LOCK(10)
7553101
$3.99
17
BOLT(10)
7512539
$3.99
18
NUT,FLEXLOCK,(10)
7547008
$6.39
19
NUT,HEX(10)
7542414
$4.79
19
NUT,HEX(10)
7542414
$4.79
20
LIMITER,TORQUE,TWIN-Z
1012608
$35.51
21
STOP,TORQUE,COARSE,1.94 DIA
3110063
$29.99
22
WASHER(10)
7555893
$1.49
23
NUT FLEX LOC,(10)
7542402
$6.39
24
Asm., Fuel Pump (See Pg. A38, Ref. 2)
-------
Unavailable
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
25
HOSE CLAMP, RED
7080003
$1.49
26
FILTER FUEL,(10)
2530008
$4.84
27
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
VALVE,FUEL SHUT-OFF
7052060
Unavailable
29
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
30
CABLE,THROTTLE,W/OIL
7080552
Unavailable
