CHAINCASE TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231B008)

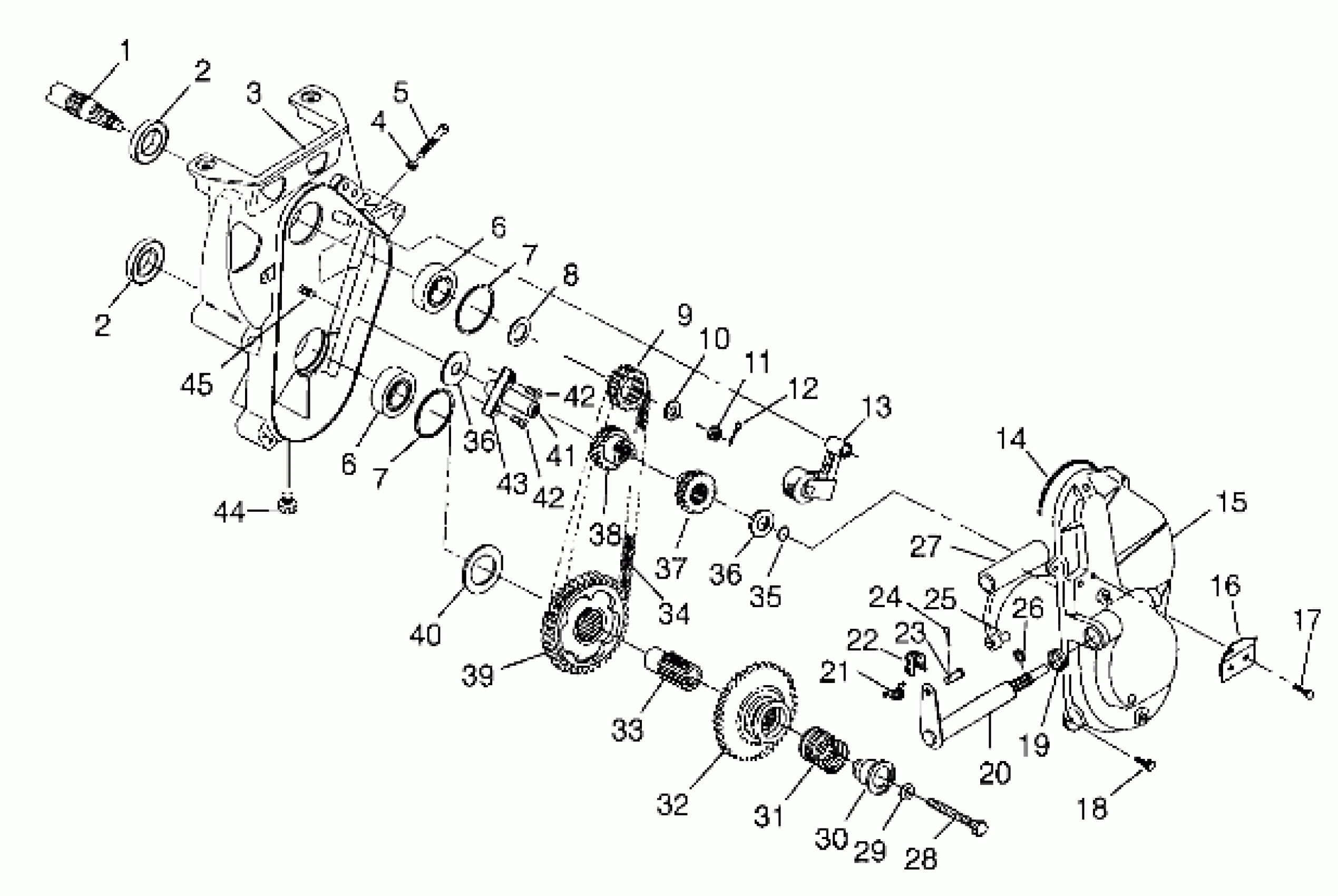

Polaris TRAIL TOURING - 0982362 CHAINCASE TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231B008) Diagram
#
1
Asm., Jackshaft (See Pg. A22, Ref. 16)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
2
SEAL-OIL
3610030
$20.22
3
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
4
NUT(10)
7542404
$1.59
5
SCREW(10)
7515551
$6.39
6
BEARING,BALL
3514309
$15.87
6
BEARING,BALL
3514309
$15.87
7
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
8
WASHER(10)
7555917
$2.39
9
SPKT,20T,3/4W,15T SPL,HYVO Substituted by 2900004
3221087
$109.99
10
WASHER, SLOTTED(10)
7571620
$7.19
11
NUT
7542811
Unavailable
12
COTTER PIN(10)
7661401
$1.49
13
PIN,CHAIN TIGHTENER
7662210
Unavailable
13
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
13
BEARING
3553002
$11.99
13
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
13
WHEEL,C/C IDLER
5630123
Unavailable
13
WASHER THRUST(10)
7558702
$1.59
14
GASKET-CHAINCASE
5410277
$24.99
15
COVER,CHAINCASE,REV.
5131753
Unavailable
16
BRKT,CABLE MOUNT
5222502-067
Unavailable
17
SCREW,(10)
7517386
$1.49
18
SCREW(10)
7512242
$2.39
19
Seal, Oil
3610029
$8.89
20
SHAFT, SHIFT
1341093-067
$29.37
21
SPRING,REV.CABLE TENSION
7042044
Unavailable
22
CLEVIS
5222606
Unavailable
23
PIN, CLEVIS(10)
7661830
$3.99
24
PIN-COTTER(10)
7661205
$1.49
25
PIN, SHIFT FORK(10)
7661826
$5.65
26
RING, RETAINER(10)
7710415
$3.99
27
KIT,SHIFT FORK/SHAFT (Incl. 19, 20, 25, 27)
2200363
Unavailable
27
Fork, Shift
5130805
Unavailable
28
SCREW, NYLOK(10)
7515348
$4.79
29
LOCK WASHER(10)
7552901
$1.49
30
RETAINER,DRIVE COUPLER
5130727
Unavailable
31
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
32
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
33
Coupler, Drive
5130720
Unavailable
34
CHAIN,66P,3/4W,HYVO Substituted by 3221113
3224071
$124.99
35
O RING
5410589
$4.99
36
WASHER,THRUST(10)
7555877
$3.99
36
WASHER,THRUST(10)
7555877
$3.99
37
GEAR,SPUR PINION
1341075
$149.99
37
Bearing, Needle
3554508
$16.99
38
SPROCKET,PINION
1341241
Unavailable
39
SPKT,40T,3/4W,REV,HYVO Substituted by 1341227
1341224
Unavailable
40
WASHER, REVERSE(10)
7555871
$5.59
41
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
42
SCREW(10)
7512019
$3.99
42
SCREW(10)
7512019
$3.99
43
BRKT,CHAIN RETENTION
5222298
Unavailable
44
PLUG(10)
7052115
$5.65
45
BOLT(10)
7515477
$34.99
