BACKREST TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231A007)

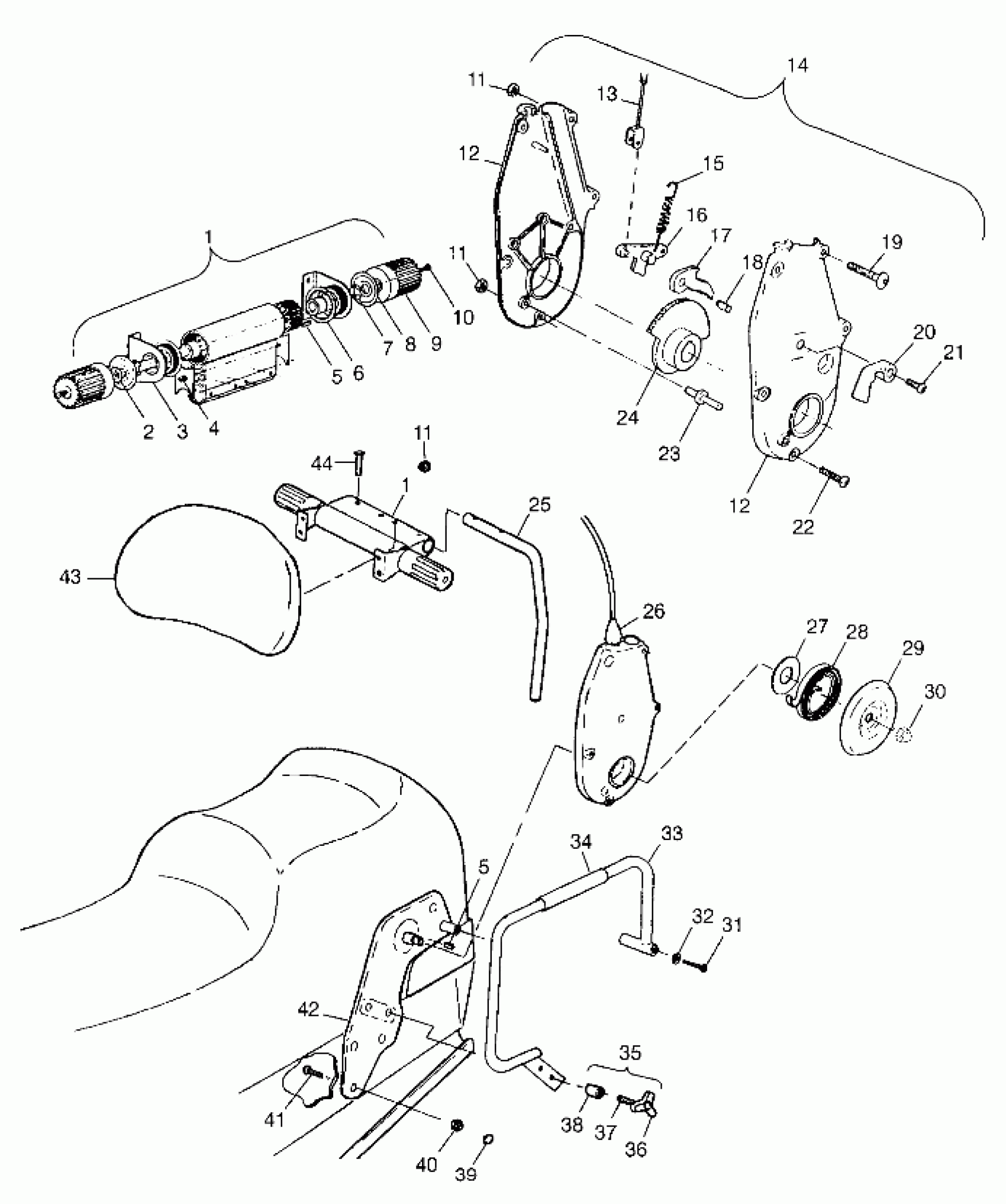

Polaris TRAIL TOURING - 0982362 BACKREST TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231A007) Diagram
#
1
ADJ.ASM,B'REST CUSHION (Incl. 2-10)
1012534
Unavailable
1
ADJ.ASM,B'REST CUSHION (Incl. 2-10)
1012534
Unavailable
2
WASHER,WAVE(10)
7571635
$4.23
3
BRKT,MOUNTING
1012535
$37.11
4
SCREW(10)
7511866
$4.79
5
KEY,SQUARE(10)
7721118
$3.59
5
KEY,SQUARE(10)
7721118
$3.59
6
Rotor
5131207
$16.47
7
E RING(10)
7710901
$7.19
8
WASHER,(10)
7571634
$2.39
9
KNOB, ADJ.
5432112
Unavailable
10
SCREW,(10)
7512087
$1.83
11
NUT-LOCK(10)
7542122
$1.49
11
NUT-LOCK(10)
7542122
$1.49
11
NUT-LOCK(10)
7542122
$1.49
12
HSG,RH (ADJ.B'REST)
5131212
$62.39
12
HSG,LH,(ADJ. B'REST)
5131211
$62.39
12
HSG,RH (ADJ.B'REST)
5131212
$62.39
12
HSG,LH,(ADJ. B'REST)
5131211
$62.39
13
CABLE ASM,ACTUATOR
7080582
$87.19
14
ADJUSTER ASM,B'REST Substituted by 1013409 (Incl. 11-24)
1012536
Unavailable
15
SPRING,LOCKING
7041411
$25.59
16
PAWL ASM,LH,LOCK.,MASTER
1012320
$40.48
16
PAWL ASM,RH,LOCK,MASTER
1012321
Unavailable
17
SECTOR,ENGAGEMENT
5211610
Unavailable
18
PIN,PIVOT
5020806
Unavailable
19
BOLT ,(10)
7515171
Unavailable
20
LEVER,LOCKING.BLK. Substituted by 5631126-067
5630561-067
Unavailable
21
SCREW,(10)
7516915
$1.06
22
Bolt
7515170
$2.39
23
STUD-LIMITER
5020822
$66.39
24
GEAR,STATIONARY
1012537
Unavailable
25
TUBE,B'REST MT,BLK
5224761-067
$29.75
26
COVER,CABLE,BLK
5432259
Unavailable
27
WASHER,THRUST(10)
7555926
$1.99
28
SPRING,TORSION,PRELOAD
7041412
Unavailable
29
COVER,SPRING,1/2" ID,BLK
5241935-067
$4.95
30
NUT,(10)
7547015
$6.23
31
SCREW(10)
7512307
$3.99
32
WASHER(10)
7555734
$1.49
33
HANDLE,GRAB,LH,BLACK
1012657-067
$58.39
33
HANDLE,GRAB,RH,BLACK
1012658-067
$53.59
34
GRIP ASM,PASSENGER
2460660
Unavailable
35
KNOB,GRAB HANDLE (Incl. 36-38)
1012385
Unavailable
36
Knob, Backrest
5630386-067
$20.22
37
BOLT(10) Substituted by 7515339
7515328
Unavailable
38
SPACER,ADJ.KNOB
5432123
$5.83
39
CAPLUG, 3/4"(10)
7080592
Unavailable
40
NUT, NYLOK(10)
7542327
$4.79
41
BOLT(10)
7512377
$4.79
42
MAINFRAME,LH,BLK
1012539-067
Unavailable
42
MAINFRAME,RH,BLK
1012540-067
Unavailable
43
COVER ASM,BACKREST
2681833
Unavailable
43
CUSHION ASM,BACKREST
2682336
Unavailable
44
RIVET,INTERLOCK,B(50)
7661638
$1.49
