CHASSIS AND SEAT Supertrak Updated 10/88 (4915871587001A)

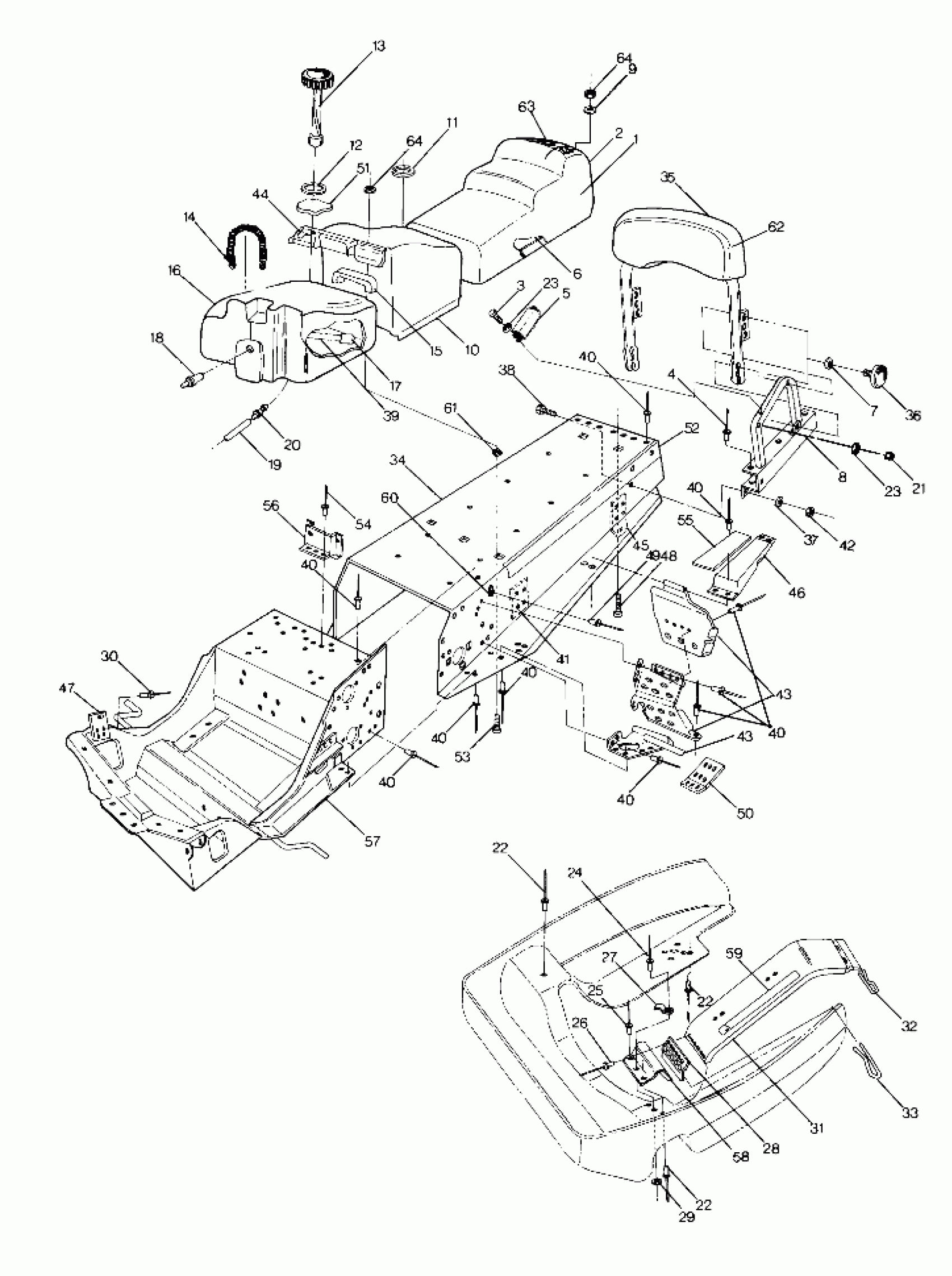

Polaris TRAIL SUPERTRAK - 0890161 CHASSIS AND SEAT Supertrak Updated 10/88 (4915871587001A) Diagram
#
1
SEAT ASM.(TRAIL<R) Substituted by 2200749 (Incl. 2, 63, 77)
2681368
Unavailable
2
COVER, SEAT Substituted by 2200740
2681391
Unavailable
3
SCREW(10)
7510504
$6.76
4
RIVET(50)
7621429
$1.49
5
GRIP, HAND Substituted by 5433383
5431015
$19.68
6
SEAT BUN [No Longer Available]
5430927
Unavailable
7
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
8
GRAB BAR,LH Substituted by 1011729-067
1011729
Unavailable
8
GRAB BAR,RH Substituted by 1011730-067
1011730
Unavailable
9
WASHER(10)
7558221
$2.39
10
COVER, TANK [No Longer Available]
2681369
Unavailable
11
GROMMET-GAS TANK
5430575
Unavailable
12
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
13
GAUGE,GAS Substituted by 2511246
2511149
Unavailable
14
SPRING,TANK,(10)
7042020
$13.75
15
CUSHION,TANK H.D.
5420126
Unavailable
16
TANK,GAS
2511150
Unavailable
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
FITTING - OUTLET(10)
7052023
$24.99
19
KIT-TANK VENT
2200190
Unavailable
20
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
21
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
22
RIVET(50)
7621457
$1.49
22
RIVET(50)
7621457
$1.49
23
WASHER(10)
7555783
$3.99
23
WASHER(10)
7555783
$3.99
24
POP RIVET(50)
7621402
$1.49
25
RIVET(50)
7621452
$1.49
26
RIVET, POP(50)
7621330
$1.49
27
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
28
HINGE
5211047
$3.49
29
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
30
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
31
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
32
PIN,RETAINING,(10)
7080216
$9.70
33
PIN, FRONT
7080311
Unavailable
34
TUNNEL ASM(SUPERTRAK) [No Longer Available]
1011684
Unavailable
35
BACKREST(SUPERTRAK) [No Longer Available] (Incl. 62)
2681408
Unavailable
36
KNOB,ADJ. Substituted by 2670130
7030007
Unavailable
37
WASHER,WROUGHT(10)
7558302
$1.59
38
BOLT(10)
7512325
$2.39
39
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
41
BRKT. Substituted by 5220542-067
5220542
Unavailable
42
NUT-5/16-18 NYLOK-Y
7542324
$1.49
43
FOOTREST ASM,LH
2200250
Unavailable
43
FOOTREST ASM,RH
2200254
Unavailable
43
FOOTREST ASM,LH
2200250
Unavailable
43
FOOTREST ASM,RH
2200254
Unavailable
44
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
45
PAD,LH,R.SUSP.MTG. Substituted by 1011727-067
1011727
Unavailable
45
PAD,RH,R.SUSP.MTG.01 Substituted by 1011728-067
1011728
Unavailable
46
FOOTREST,LH REAR
5220893
Unavailable
46
FOOTREST,RH REAR
5220894
$32.15
47
SUPPORT, MUFFLER Substituted by 1011601-067
1011601
Unavailable
48
SCREW(10)
7512116
Unavailable
49
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
50
PLATE,TUNNEL,LH
5220634
Unavailable
50
PLATE,TUNNEL,RH
5220635
Unavailable
51
FOAM, FILLER
5810201
Unavailable
52
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
53
BOLT(10)
7512193
$2.39
54
RIVET(50)
7621301
$3.99
55
PAD,LH FOOT SAFETY
5830007
$7.89
55
PAD,RH FOOT SAFETY
5830008
$4.92
56
BRACKET Substituted by 5221932-067
5221932
Unavailable
57
BULKHEAD, (TRAIL)
1011612
Unavailable
58
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
59
DECAL, WARNING [No Longer Available]
7072153
Unavailable
60
SNAP-MALE(10)
7080227
Unavailable
61
SPEED NUT(10)
7670021
$6.99
62
COVER,BACKREST [No Longer Available]
2681332
Unavailable
63
BUCKLE&STRAP
2681291
Unavailable
64
NUT-LOCK(10)
7542122
$1.49
64
NUT-LOCK(10)
7542122
$1.49
