TUNNEL Trail RMK 0980961 (4942214221A005)

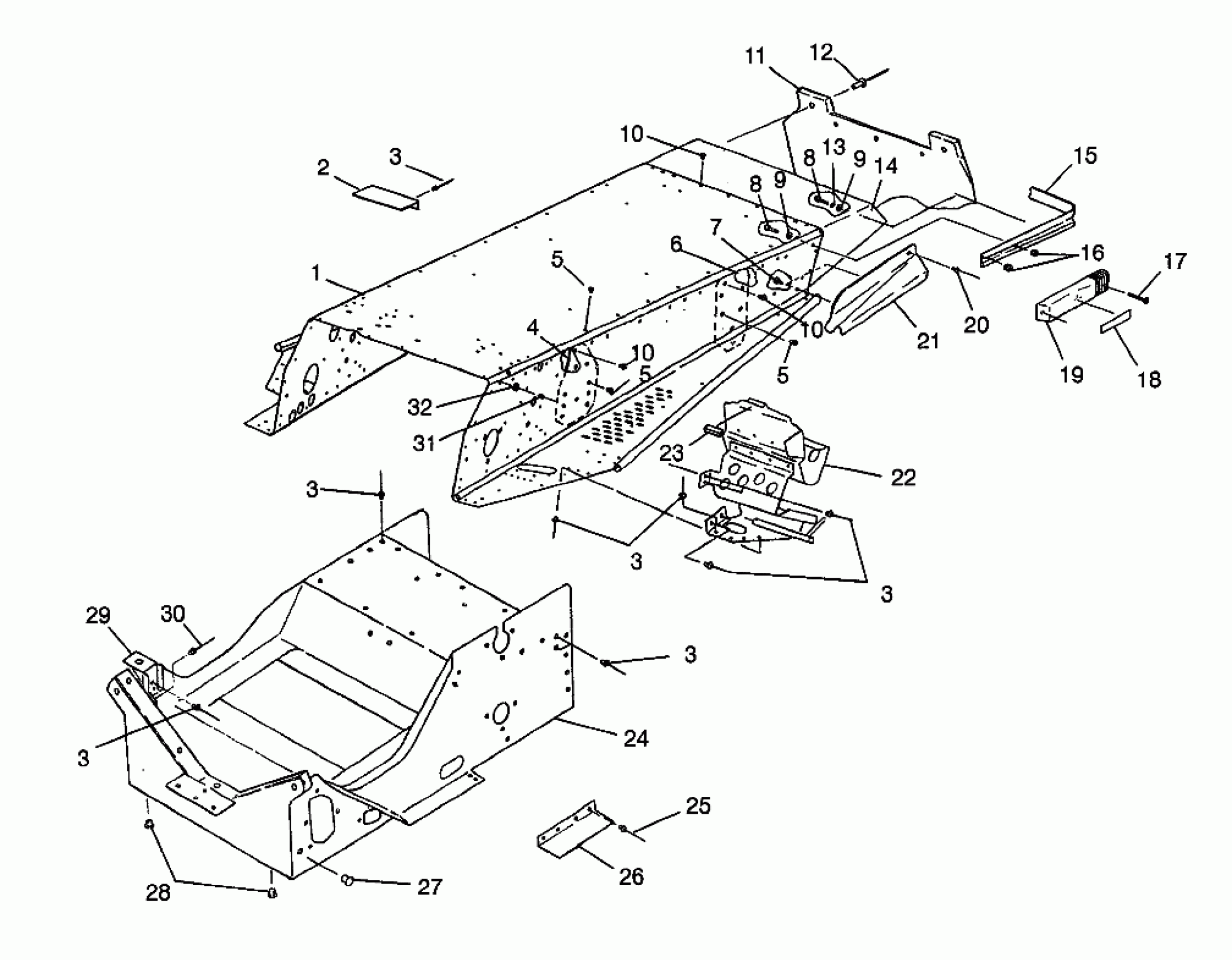

Polaris TRAIL RMK - 0980961 TUNNEL Trail RMK 0980961 (4942214221A005) Diagram
#
1
TUNNEL ASM,F/C,(RMK) (Incl. 2, 4, 6, 14)
1012453
Unavailable
2
BRKT, TOOL BOX
5220973
Unavailable
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
4
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
4
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
5
RIVET ,(50)
7661837
$1.49
5
RIVET ,(50)
7661837
$1.49
5
RIVET ,(50)
7661837
$1.49
6
BRKT,LH,R.SUSP,BLK.
1012563-067
Unavailable
6
BRKT,RH,R.SUSP,BLK.
1012564-067
Unavailable
7
SCREW(10)
7512091
$3.99
8
BOLT(10)
7512240
$3.99
8
BOLT(10)
7512240
$3.99
9
WASHER(10)
7558301
$1.49
9
WASHER(10)
7558301
$1.49
10
RIVET ,(50)
7661836
$0.63
10
RIVET ,(50)
7661836
$0.63
10
RIVET ,(50)
7661836
$0.63
11
FLAP,SNOW
5432033
Unavailable
12
POP RIVET(50)
7621418
$1.49
13
LOCK WASHER(10)
7552801
$1.59
14
PANEL ASM,TUNNELBACK
1012436
Unavailable
15
BUMPER, REAR
2670170
Unavailable
16
NUT-LOCK(10)
7542122
$1.49
17
SCREW(10)
7511863
$1.99
18
REFLECTOR RED
2670070
$9.91
19
CAP, BUMPER, BLK.
5430930-070
Unavailable
20
RIVET,(50)
7621342
$1.49
21
SKIRT,SNOW,LH
5432049-070
$33.91
21
SKIRT,SNOW,RH
5432050-070
$30.16
22
FOOTREST ASM,LH
1011890
Unavailable
22
FOOTREST ASM, RH
1011891
$164.79
23
EXTRUSION,CLUTCHGUARD
5521238
$6.46
24
BULKHEAD
1012654-067
Unavailable
25
RIVET(50)
7621452
$1.49
26
GUARD,ADAPTER GUIDE
5222857
$12.94
27
PLUG, HOLE(10)
7080416
$5.65
28
PLUG-HOLE
7080398
$4.84
29
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
30
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
31
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
32
SNAP-MALE(10)
7080227
Unavailable
