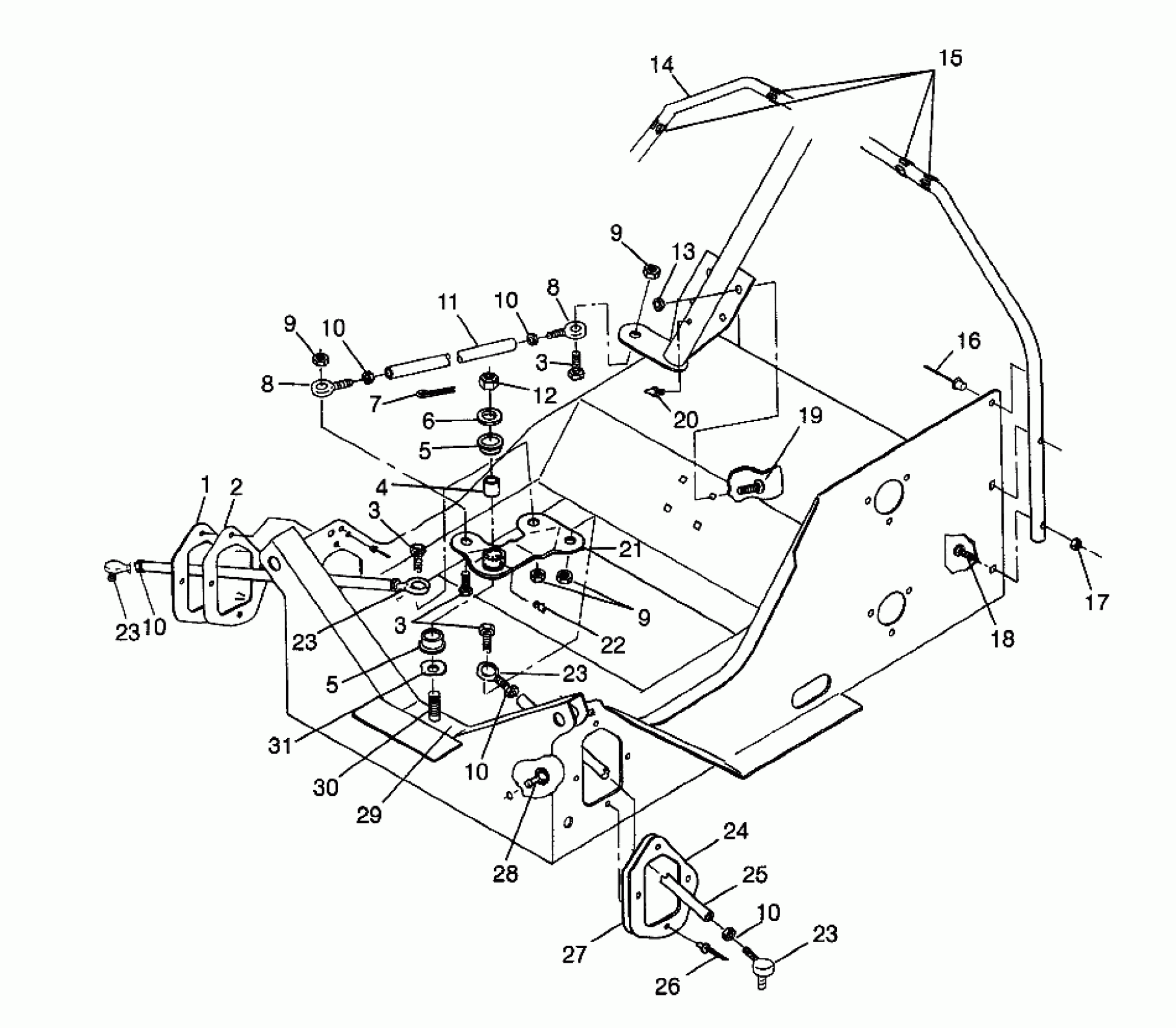

Polaris TRAIL RMK - 0980961 STEERING - 0980961 (4942214221b004) Diagram
#
1
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
2
BOOT,TIEROD,RH,XTRA
5411123
$20.22
3
BOLT(10)
7512404
$3.99
3
BOLT(10)
7512404
$3.99
3
BOLT(10)
7512404
$3.99
4
BUSHING
5010463
$9.70
5
BUSHING
3563907
$3.99
5
BUSHING
3563907
$3.99
6
WASHER(10)
7555721
$1.49
7
PIN COTTER(10)
7661203
$1.49
8
ROD END, RH.
7060165
$48.56
8
ROD END, LH.
7060164
$48.56
8
ROD END, RH.
7060165
$48.56
8
ROD END, LH.
7060164
$48.56
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
10
NUT HEX(10)
7542401
$2.39
10
NUT
7542424
$1.49
10
NUT HEX(10)
7542401
$2.39
10
NUT
7542424
$1.49
10
NUT HEX(10)
7542401
$2.39
10
NUT
7542424
$1.49
10
NUT HEX(10)
7542401
$2.39
10
NUT
7542424
$1.49
10
NUT HEX(10)
7542401
$2.39
10
NUT
7542424
$1.49
11
ROD-DRAG LINK
5332712
Unavailable
12
NUT FLEX,(10)
7542703
Unavailable
13
NUT FLEX-LOC(10)
7542303
$6.39
14
HOOP,STEERING
1012369-067
Unavailable
15
CLIP(10)
7080278
$2.63
16
RIVET-3/16-.090-.290
7661637
$1.49
17
NUT, LOCK(10)
7542103
$5.59
18
BOLT-CARRIAGE(10)
7512275
$3.99
19
BOLT,(10)
7517428
$2.39
20
FITTING,LUB/VEN(10)
7080561
$4.79
21
STRG.ASM,CTR. (Incl. 13,22)
1822286
$29.60
22
ZERK,FITTING,THREADED(10)
7080433
$1.49
23
ROD END, LH.
7060164
$48.56
23
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
23
ROD END, LH.
7060164
$48.56
23
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
23
ROD END, LH.
7060164
$48.56
23
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
23
ROD END, LH.
7060164
$48.56
23
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
24
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
25
ROD,TIE,BLK
5020878-067
Unavailable
26
POP RIVET(50)
7621323
$1.49
27
BOOT,TIEROD,LH,XTRA
5411122
Unavailable
28
CLIP, PLASTIC(10)
4020139
$4.79
29
BLOCK,STRG,(CAST)
5630563
$32.37
30
BOLT(10)
7512682
Unavailable
31
WASHER,WAVE(10)
7555735
$3.99
