SEAT and GAS TANK Trail RMK 0980961 (4942214221A006)

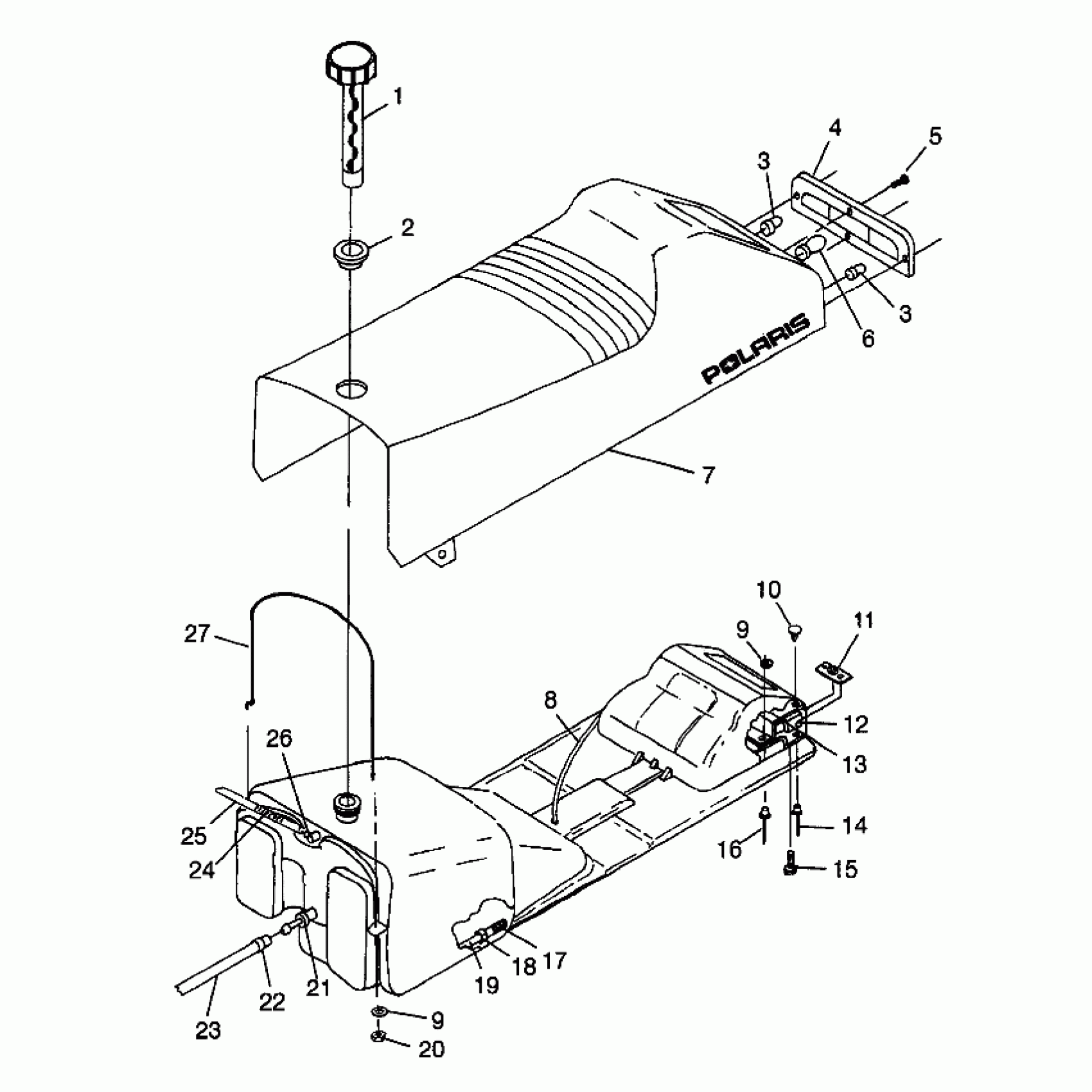

Polaris TRAIL RMK - 0980961 SEAT and GAS TANK Trail RMK 0980961 (4942214221A006) Diagram
#
Description
Price
1
GASKET, GAS CAP
5810513
$8.89
1
CAP,GAS,W/GAUGE
2511248
$44.51
2
GROMMET,FUELTANK
5410842
Unavailable
3
BULB,TAILLIGHT(10)
4030024
$4.84
3
BULB,TAILLIGHT(10)
4030024
$4.84
4
LENS,TAILLIGHT
5430423
Unavailable
5
SCREW(10)
7511840
Unavailable
6
Bulb, Brakelight
4030045
Unavailable
7
COVER ASM,SEAT
2682228
Unavailable
7
SEAT ASM,LONG,(RMK) (Incl. 3-14, 16-22, 26, 27)
2682285
Unavailable
8
HARNESS,TAILLIGHT
2460398
Unavailable
9
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
9
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
10
CLIP,DART,(10)
7670097
Unavailable
11
NUT,RETAINER-WELD.(10)
7542147
$17.59
12
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
13
COVER,T/L PROTECTOR
5431436
$21.43
14
RIVET(50)
7621301
$3.99
15
SCREW(10)
7512242
$2.39
16
RIVET(50)
7621464
$3.99
17
FUELPICKUP,W/STRAINER
7052037
$12.94
18
RING, COMPRESSION(10)
7080402
$1.60
19
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
20
NUT(10)
7541925
$1.49
21
FITTING - OUTLET(10)
7052023
$24.99
22
HOSE CLAMP, RED
7080003
$1.49
23
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
24
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
25
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
26
FITTING,90 DEG,1/8,(10)
7052095
$4.79
27
CABLE,TANK,RETENTION
7080559
Unavailable
