FRONT SUSPENSION and SKI - 0980961 (4942214221b001)

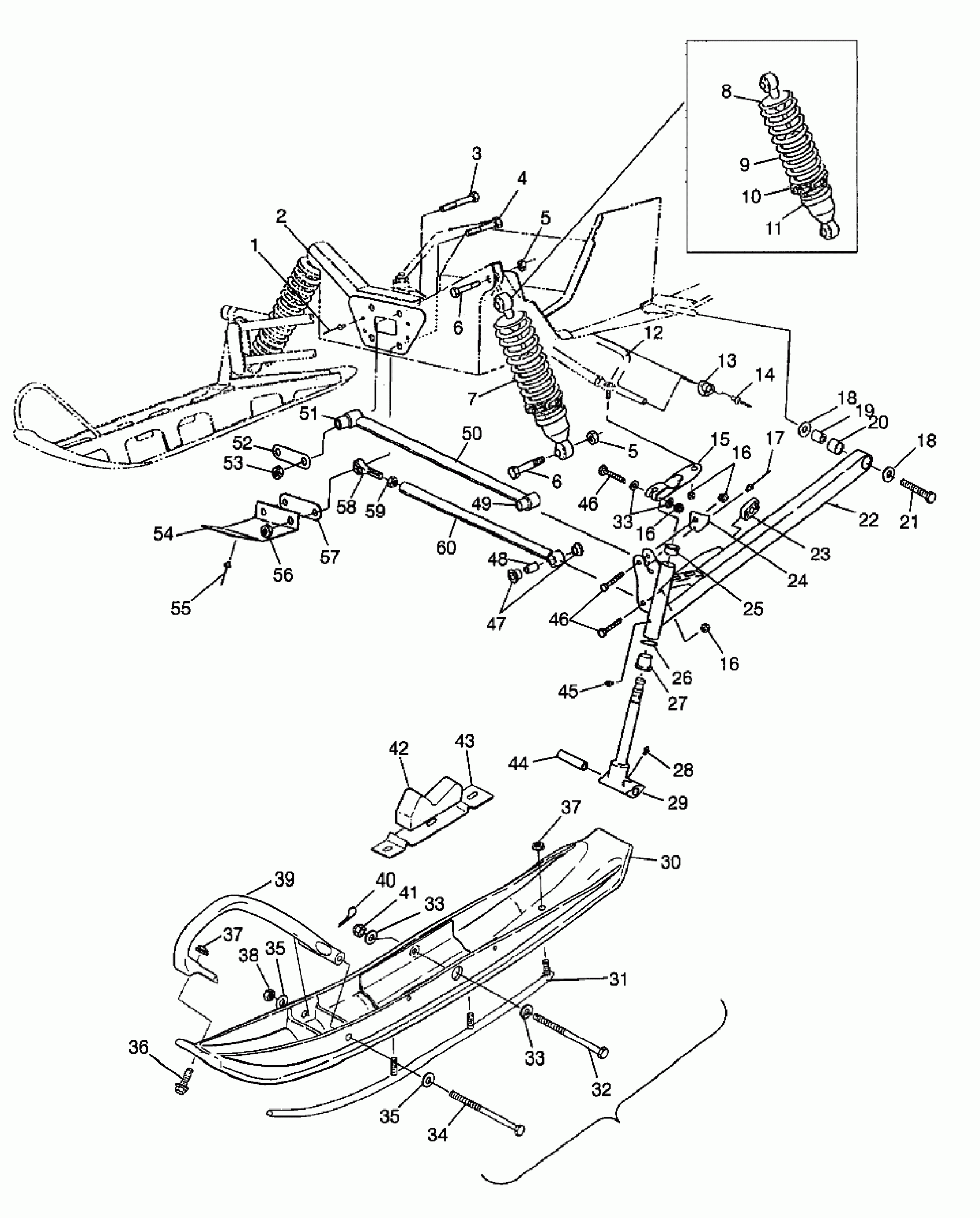

Polaris TRAIL RMK - 0980961 FRONT SUSPENSION and SKI - 0980961 (4942214221b001) Diagram
#
1
RIVET-3/16-.090-.290
7661637
$1.49
2
BRACE,FR.BULKHEAD,BLK [No Longer Available]
5242117-067
Unavailable
3
BOLT(10)
7512582
$8.79
4
BOLT(10)
7512684
Unavailable
5
NUT, NYLOC(10)
7542453
Unavailable
5
NUT, NYLOC(10)
7542453
Unavailable
6
BOLT(10) Substituted by 7515415
7515515
Unavailable
6
BOLT(10) Substituted by 7515415
7515515
Unavailable
7
SHOCK,GAS,IFS
7041544
Unavailable
8
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
9
SPRING,COMP,IFS
7041552-067
$44.51
10
RING,SPRING PRELOAD ADJ.
5431734
$52.60
11
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
12
BAR,SWAY
5224757-067
Unavailable
13
BUSHING,SWAYBAR,9/16 Substituted by 5432412
5432886
$15.87
14
RIVET(50)
7621433
$1.49
15
ARM,STRG,BLK
5241560-067
Unavailable
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
17
RIVET(50) Substituted by 7661130
7661643
Unavailable
18
WASHER(10)
7555721
$1.49
18
WASHER(10)
7555721
$1.49
19
TUBE, BUSHING
5010310
$9.70
20
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
21
BOLT(10)
7512557
$7.60
22
ARM,TRLG,LH Substituted by 2201319 (Incl. 19,20)
1822366
$344.99
22
ARM,TRLG,RH Substituted by 2201320 (Incl. 19,20)
1822367
Unavailable
23
SLIDE,SWAYBAR,9/16
5432332
$32.37
24
STOP,LH,STRG,BLK.
5241569-067
$7.27
24
STOP,RH,STRG,BLK.
5241570-067
$7.27
25
BUSHING-FLANGE
3573909
$2.39
26
WASHER SPECIAL(10)
7556509
$1.59
27
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
28
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
29
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
30
SKI/SHORTSADDLE,COMP,W/O TOE Substituted by 1820473-070
1820473
Unavailable
31
SKAG,CARBIDE 4",60DEG,COMP (Pair)
2871688
$63.99
32
SCREW,(10)
7512596
$19.99
33
WASHER(10) Substituted by 7555832
7555851
Unavailable
33
WASHER(10) Substituted by 7555832
7555851
Unavailable
33
WASHER(10) Substituted by 7555832
7555851
Unavailable
34
BOLT(10)
7515514
$7.19
35
WSHR-.813X.406X.105-Y
7555832
$2.39
35
WSHR-.813X.406X.105-Y
7555832
$2.39
36
BOLT(10)
7515307
$3.99
37
NUT LOCK(10)
7542321
$1.49
37
NUT LOCK(10)
7542321
$1.49
38
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
39
TOE,PLASTIC SKI Substituted by 5432209-070
5432209
$40.46
40
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
41
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
42
STOP,RUBBER
5411094
Unavailable
43
SUPPORT,SKI,RUBBER,BLK
5241912-067
Unavailable
44
BUSHING,PIVOT,(10)
5010158
$19.99
45
ZERK,FITTING,THREADED(10)
7080433
$1.49
46
BOLT(10) Substituted by 7517583
7515491
Unavailable
46
BOLT(10) Substituted by 7517583
7515491
Unavailable
47
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
48
BUSHING-RADIUS ROD,(10)
5010127
$7.99
49
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
50
ROD,RAD,UP.,FIXED
1822420
$119.99
51
BUSHING,PIVOT,7/16
5411095
$15.99
52
STRAP,SPACER TOP
5211344
$7.27
53
NUT, LOCK,(10)
7542503
$10.39
54
BRACE, PAN
5223997-067
Unavailable
55
RIVET(50)
7621452
$1.49
56
NUT FLEX,(10)
7542703
Unavailable
57
STRAP,SPACER BOTTOM
5211345
$12.99
58
ROD END,RH Substituted by 7061011
7060156
Unavailable
59
NUT-JAM(10)
7542711
$2.39
60
ROD,RAD,LOWER,BLK
1822444-067
$60.70
