CARBURETOR Trail RMK 0980961 (4942214221C008)

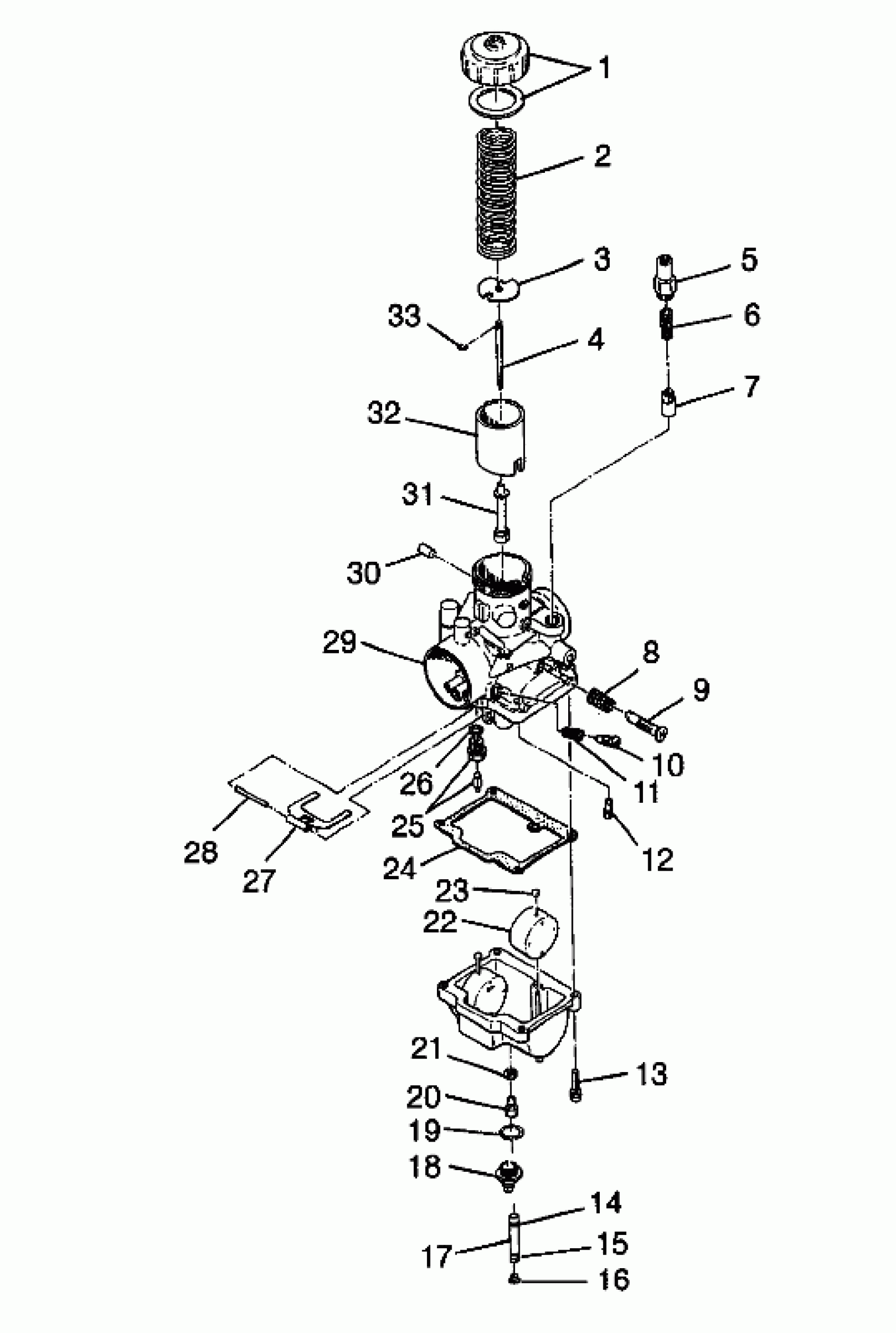

Polaris TRAIL RMK - 0980961 CARBURETOR Trail RMK 0980961 (4942214221C008) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
JET NEEDLE,(6EJ3-2) (6EJ3-3)
3130680
Unavailable
5
HOLDER,GUIDE
3130199
$28.32
6
SPRING,PLUNGER
3130006
$8.89
7
PLUNGER ASM, STARTER
3130328
$32.37
8
SPRING,THROTTLE ADJ.
3130010
$8.89
9
SCREW,THROTTLE STOP
3130009
$19.99
10
SCREW,AIR
3130011
$19.99
11
SPRING,AIR ADJUST
3130012
$8.89
12
JET,PILOT,#45(10) (#45)
3130068
$8.89
13
SCREW & WASHER(10)
3130025
$3.19
14
CLAMP,SPRING,(10)
7080534
$1.59
15
CLAMP,HOSE(10)
7080544
Unavailable
16
PLUG,TRAP
5431893
$12.94
17
FUEL LINE, 5 FT.
8450045-153
Unavailable
18
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
19
O RING
3130239
Unavailable
20
JET,MAIN,HX.HD#270(10) (#270)
3130130
$7.27
21
WASHER (10)
3130014
$1.59
22
FLOAT ASM.
3130430
$43.56
23
CAP,(10)
3130237
$4.03
24
PACKING,FLOAT CHAMBER
3130020
$16.17
25
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
26
PACKING(10)
3130017
$4.03
27
ARM,FLOAT
3130018
$24.27
28
PIN, FLOAT
3130361
$8.89
29
CARBURETOR 2 ASM. [No Longer Available] (PTO Side) (Incl. 1-13, 18-29, 31-33)
3130736
Unavailable
29
CARBURETOR 1 ASM,(MAG) [No Longer Available] (MAG Side) (Incl. 1-13, 18-33)
3130734
Unavailable
30
CAP
3130479
$14.56
31
NEEDLE JET,(0-6) Substituted by 3130429 (0-6) 480
3130735
Unavailable
32
VALVE,THROTTLE,2.0 (2.0)
3130464
Unavailable
33
E RING(10) Substituted by 3130508
3130003
Unavailable
