TUNNEL Trail RMK 0970961 (4938333833A005)

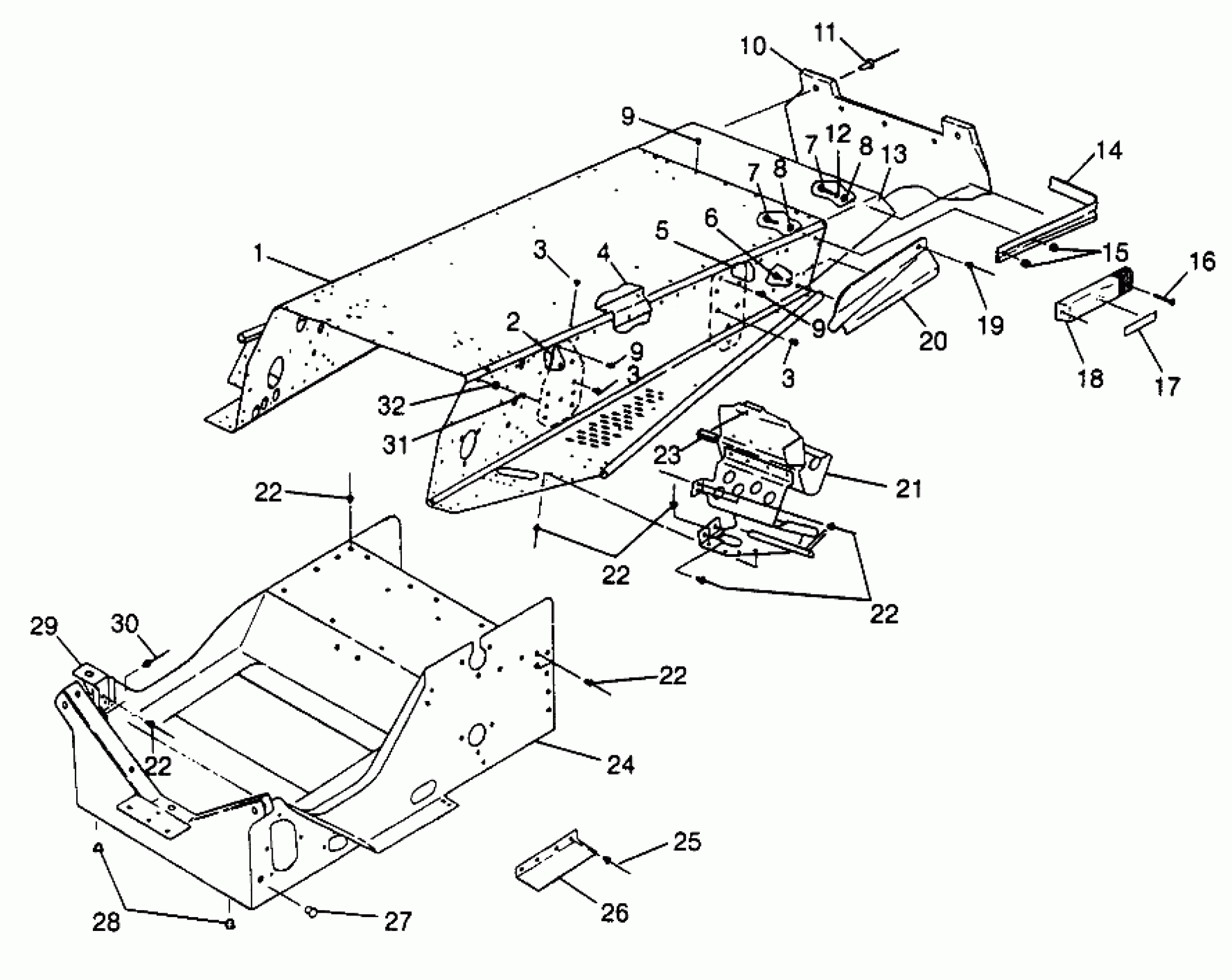

Polaris TRAIL RMK - 0970961 TUNNEL Trail RMK 0970961 (4938333833A005) Diagram
#
1
TUNNEL ASM,F/C,(RMK) (Incl. 2, 4, 5, 13)
1012453
Unavailable
2
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
2
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
3
RIVET ,(50)
7661837
$1.49
3
RIVET ,(50)
7661837
$1.49
3
RIVET ,(50)
7661837
$1.49
4
BRACE,TUNNEL,REINF.CORNER Substituted by 5244452
5241852
Unavailable
5
BRKT,LH,R.SUSP,BLK.
1012563-067
Unavailable
5
BRKT,RH,R.SUSP,BLK.
1012564-067
Unavailable
6
SCREW(10)
7512091
$3.99
7
BOLT(10)
7512240
$3.99
7
BOLT(10)
7512240
$3.99
8
WASHER(10)
7558301
$1.49
8
WASHER(10)
7558301
$1.49
9
RIVET ,(50)
7661836
$0.63
9
RIVET ,(50)
7661836
$0.63
9
RIVET ,(50)
7661836
$0.63
10
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106
5432149
Unavailable
11
POP RIVET(50)
7621418
$1.49
12
LOCK WASHER(10)
7552801
$1.59
13
PANEL ASM,TUNNELBACK
1012436
Unavailable
14
BUMPER, REAR
2670170
Unavailable
15
NUT-LOCK(10)
7542122
$1.49
16
SCREW(10)
7511863
$1.99
17
REFLECTOR RED
2670070
$9.91
18
CAP, BUMPER, BLK.
5430930-070
Unavailable
19
RIVET,(50)
7621342
$1.49
20
SKIRT,SNOW,LH
5432049-070
$33.91
20
SKIRT,SNOW,RH
5432050-070
$30.16
21
FOOTREST ASM,LH
1011890
Unavailable
21
FOOTREST ASM, RH
1011891
$164.79
22
RIVET-3/16-.090-.290
7661637
$1.49
22
RIVET-3/16-.090-.290
7661637
$1.49
22
RIVET-3/16-.090-.290
7661637
$1.49
22
RIVET-3/16-.090-.290
7661637
$1.49
22
RIVET-3/16-.090-.290
7661637
$1.49
23
EXTRUSION,CLUTCHGUARD
5521238
$6.46
24
BULKHEAD,BLK
1012452-067
$573.29
25
RIVET(50)
7621452
$1.49
26
GUARD,ADAPTER GUIDE
5222857
$12.94
27
PLUG, HOLE(10)
7080416
$5.65
28
PLUG-HOLE
7080398
$4.84
29
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
30
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
31
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
32
SNAP-MALE(10)
7080227
Unavailable
