RAIL MOUNTING (SUSPENSION) Trail RMK 0970961 (4938333833B009)

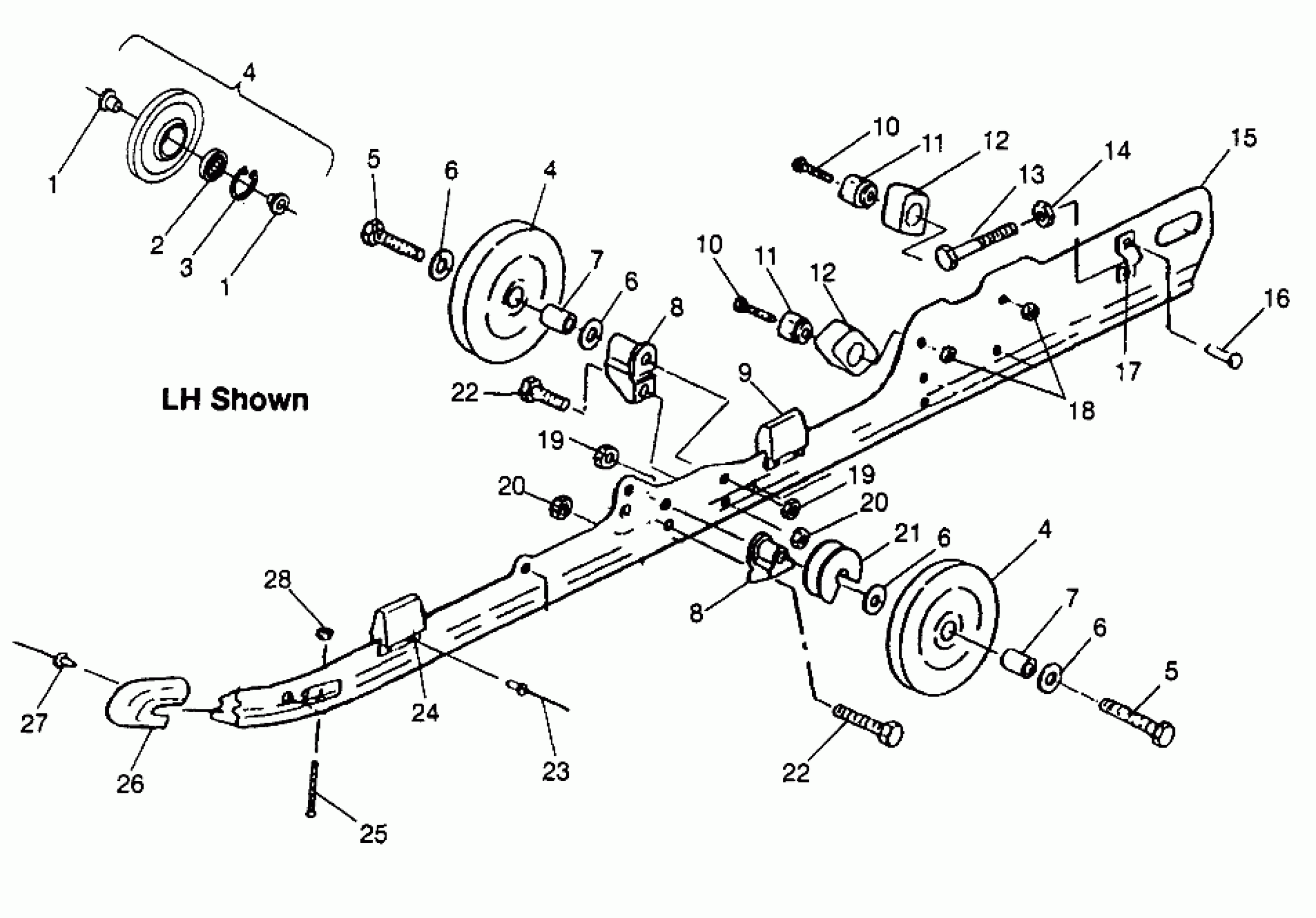

Polaris TRAIL RMK - 0970961 RAIL MOUNTING (SUSPENSION) Trail RMK 0970961 (4938333833B009) Diagram
#
Description
Price
1
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
1
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
2
BEARING (1 per Wheel)
3514303
$11.99
3
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
4
WHEEL, IDLER (Incl. 1-3)
1543018
$56.65
4
WHEEL, IDLER (Incl. 1-3)
1543018
$56.65
4
WHEEL, IDLER (Incl. 1-3)
1543018
$56.65
5
BOLT(10)
7512538
$6.39
5
BOLT(10)
7512538
$6.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
6
WASHER, FLAT(10)
7555852
$2.39
7
SPACER, WHEEL
5333116
$7.99
7
SPACER, WHEEL
5333116
$7.99
8
SPACER
5630399
$11.99
8
SPACER
5630399
$11.99
9
REINF., BUMPER
5222629
$13.75
9
BUMPER, RAIL
5810554
$7.27
10
BOLT(10)
7515537
$10.99
10
BOLT(10)
7515537
$10.99
11
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
11
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
12
BUMPER,F.PIVOT ARM
5410925
$12.94
12
BUMPER,F.PIVOT ARM
5410925
$12.94
13
BOLT, ADJUSTER(10)
7515455
$29.99
14
NUT(10)
7542440
Unavailable
15
RAIL ASM,RH,133" (Incl. 9, 16, 17, 23, 24, 26, 27)
1540947
$339.99
15
RAIL ASM,LH,133" (Incl. 9, 16, 17, 23, 24, 26, 27)
1540946
$269.55
16
RIVET,(50)
7621501
$2.39
17
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
18
NUT LOCK(10)
7542403
$3.99
19
NUT, NYLOCK(10)
7542525
$4.79
19
NUT, NYLOCK(10)
7542525
$4.79
20
NUT-LOCK(10)
7542439
$1.49
20
NUT-LOCK(10)
7542439
$1.49
21
ROLLER,SPRING
5432170
Unavailable
22
BOLT(10)
7512404
$3.99
22
BOLT(10)
7512404
$3.99
23
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
24
BUMPER,SUSPENSION
5811097
Unavailable
25
BOLT(10)
7515175
$3.99
26
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
27
RIVET(50)
7621435
$1.49
28
NUT-LOCK(10)
7542122
$1.49
