FRONT SUSPENSION and SKI Trail RMK 0970961 (4938333833B001)

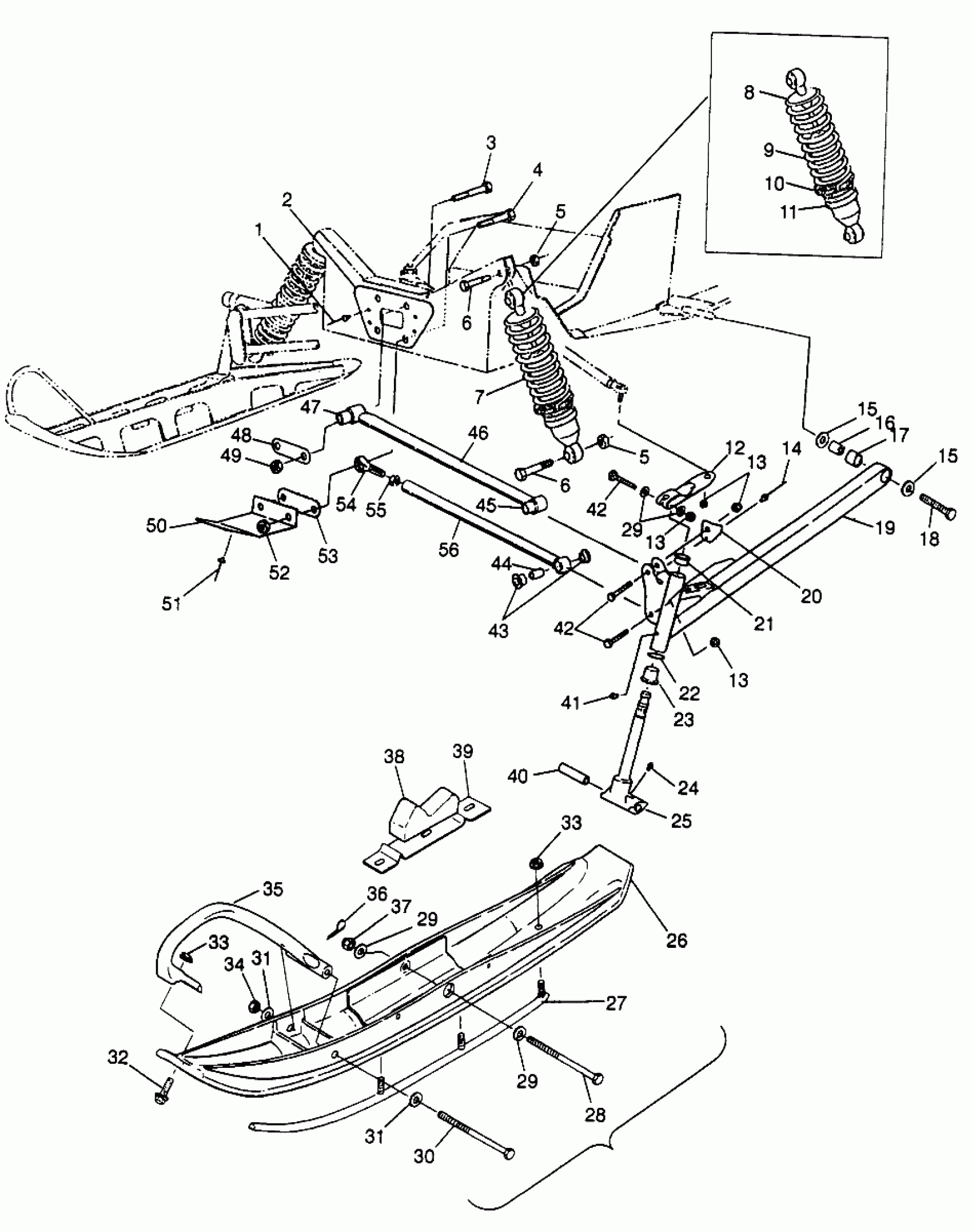

Polaris TRAIL RMK - 0970961 FRONT SUSPENSION and SKI Trail RMK 0970961 (4938333833B001) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
BOLT(10)
7512582
$8.79
4
BOLT(10)
7512656
$6.23
5
NUT, NYLOC(10)
7542453
Unavailable
5
NUT, NYLOC(10)
7542453
Unavailable
6
BOLT(10) Substituted by 7515415
7515515
Unavailable
6
BOLT(10) Substituted by 7515415
7515515
Unavailable
7
SHOCK,GAS,IFS
7041544
Unavailable
8
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
9
SPRING,COMP,IFS
7041552-067
$44.51
10
RING,SPRING PRELOAD ADJ.
5431734
$52.60
11
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
12
ARM,STRG,BLK
5241560-067
Unavailable
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
RIVET(50) Substituted by 7661130
7661643
Unavailable
15
WASHER(10)
7555721
$1.49
15
WASHER(10)
7555721
$1.49
16
TUBE, BUSHING
5010310
$9.70
17
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
18
BOLT(10)
7512557
$7.60
19
ARM,TRLG,LH Substituted by 2201319 (Incl. 16, 17)
1822366
$344.99
19
ARM,TRLG,RH Substituted by 2201320 (Incl. 16, 17)
1822367
Unavailable
20
STOP,LH,STRG,BLK.
5241569-067
$7.27
20
STOP,RH,STRG,BLK.
5241570-067
$7.27
21
BUSHING-FLANGE
3573909
$2.39
22
WASHER SPECIAL(10)
7556509
$1.59
23
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
24
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
25
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
26
SKI/SHORTSADDLE,COMP,W/O TOE Substituted by 1820473-070
1820473
Unavailable
27
SKAG,CARBIDE 4",60DEG,COMP (Pair)
2871688
$63.99
28
SCREW,(10)
7512596
$19.99
29
WASHER(10) Substituted by 7555832
7555851
Unavailable
29
WASHER(10) Substituted by 7555832
7555851
Unavailable
29
WASHER(10) Substituted by 7555832
7555851
Unavailable
30
BOLT(10)
7515514
$7.19
31
WSHR-.813X.406X.105-Y
7555832
$2.39
31
WSHR-.813X.406X.105-Y
7555832
$2.39
32
BOLT(10)
7515307
$3.99
33
NUT LOCK(10)
7542321
$1.49
33
NUT LOCK(10)
7542321
$1.49
34
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
35
TOE,PLASTIC SKI Substituted by 5432209-070
5432209
$40.46
36
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
37
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
38
STOP,RUBBER
5411094
Unavailable
39
SUPPORT,SKI,RUBBER,BLK
5241912-067
Unavailable
40
BUSHING,PIVOT,(10)
5010158
$19.99
41
ZERK,FITTING,THREADED(10)
7080433
$1.49
42
BOLT(10) Substituted by 7517583
7515491
Unavailable
42
BOLT(10) Substituted by 7517583
7515491
Unavailable
43
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
44
BUSHING-RADIUS ROD,(10)
5010127
$7.99
45
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
46
ROD,RAD,UP.,FIXED
1822420
$119.99
47
BUSHING,PIVOT,7/16
5411095
$15.99
48
STRAP,SPACER TOP
5211344
$7.27
49
NUT, LOCK,(10)
7542503
$10.39
50
BRACE, PAN
5223997-067
Unavailable
51
RIVET(50)
7621452
$1.49
52
NUT FLEX,(10)
7542703
Unavailable
53
STRAP,SPACER BOTTOM
5211345
$12.99
54
ROD END,RH Substituted by 7061011
7060156
Unavailable
55
NUT-JAM(10)
7542711
$2.39
56
ROD,RAD,LOWER,BLK
1822444-067
$60.70
