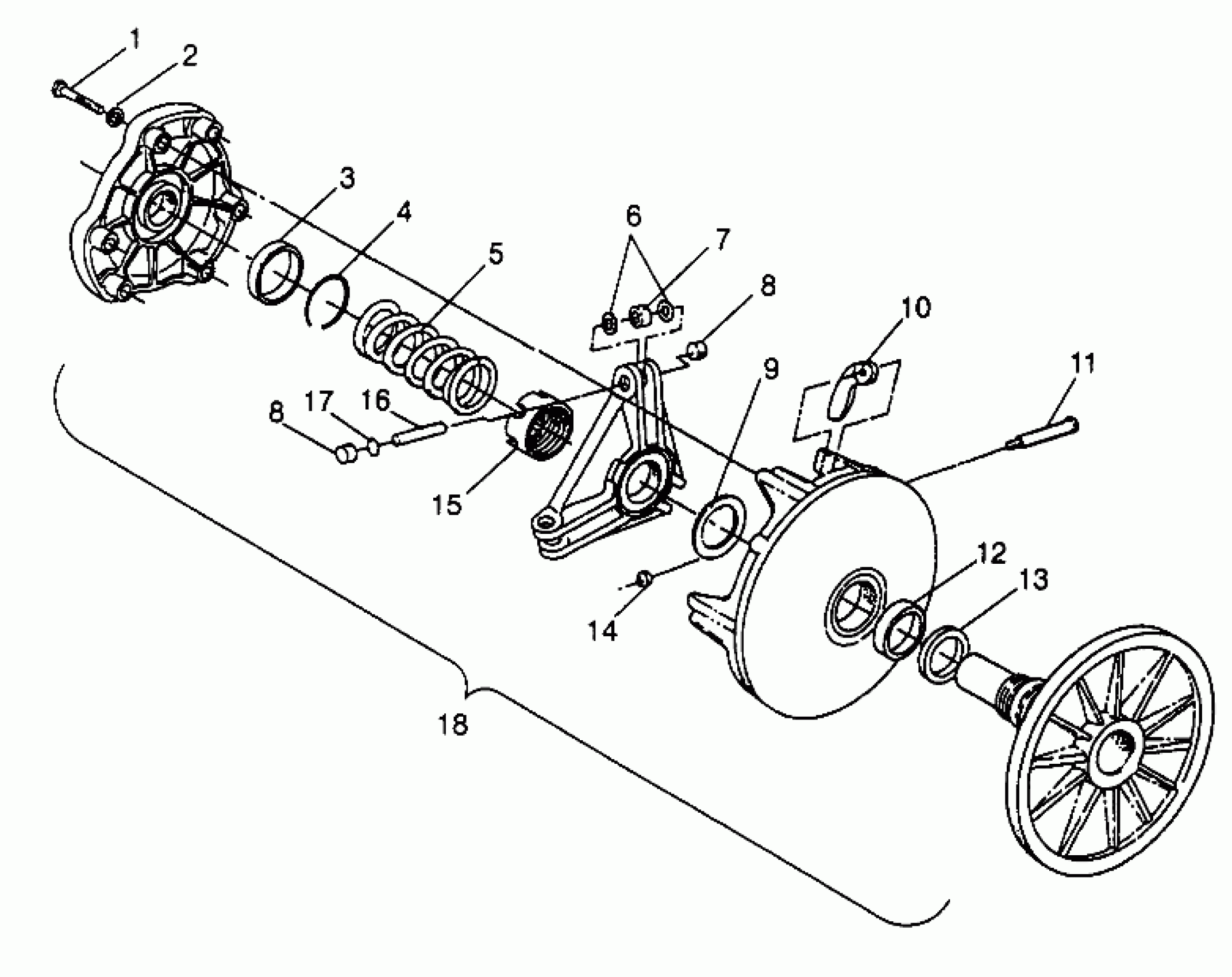

Polaris TRAIL RMK - 0970961 DRIVE CLUTCH Trail RMK 0970961 (4938333833B012) Diagram

#

Description
Price

-

KIT,CLUTCH UPDATE (Incl. 6-8, 11, 16, 17)

2200386

$161.89

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

BEARING, COVER,(10)

3576510

$9.59

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-RED&WHITE (Red/White)

7041150

$64.99

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321457

$40.46

8

BUTTON, GUIDE,(10)

5430445

$6.39

8

BUTTON, GUIDE,(10)

5430445

$6.39

9

SPACER(10) (.050mm)

5210754

Unavailable

9

SPACER(10) (.020mm)

5210752

Unavailable

9

SPACER(10) (.032mm)

5210753

Unavailable

10

WT/BUSH.ASM,10M-B(3) (10M-B)

1321529

$44.99

11

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

12

SLEEVE, BEARING

3576502

$23.99

13

INSERT-MOVEABLE

5010188

$7.99

14

NUT FLEX LOC(10)

7541906

$3.19

15

NUT-JAM

5020425

$23.99

16

PIN-ROLLER

5020422

$2.39

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

CLUTCH,BASIC#76(DRIVE) Substituted by 1321735 (Less 5, 10)

1321716

Unavailable
