CYLINDER Trail RMK 0970961 (4938333833C006)

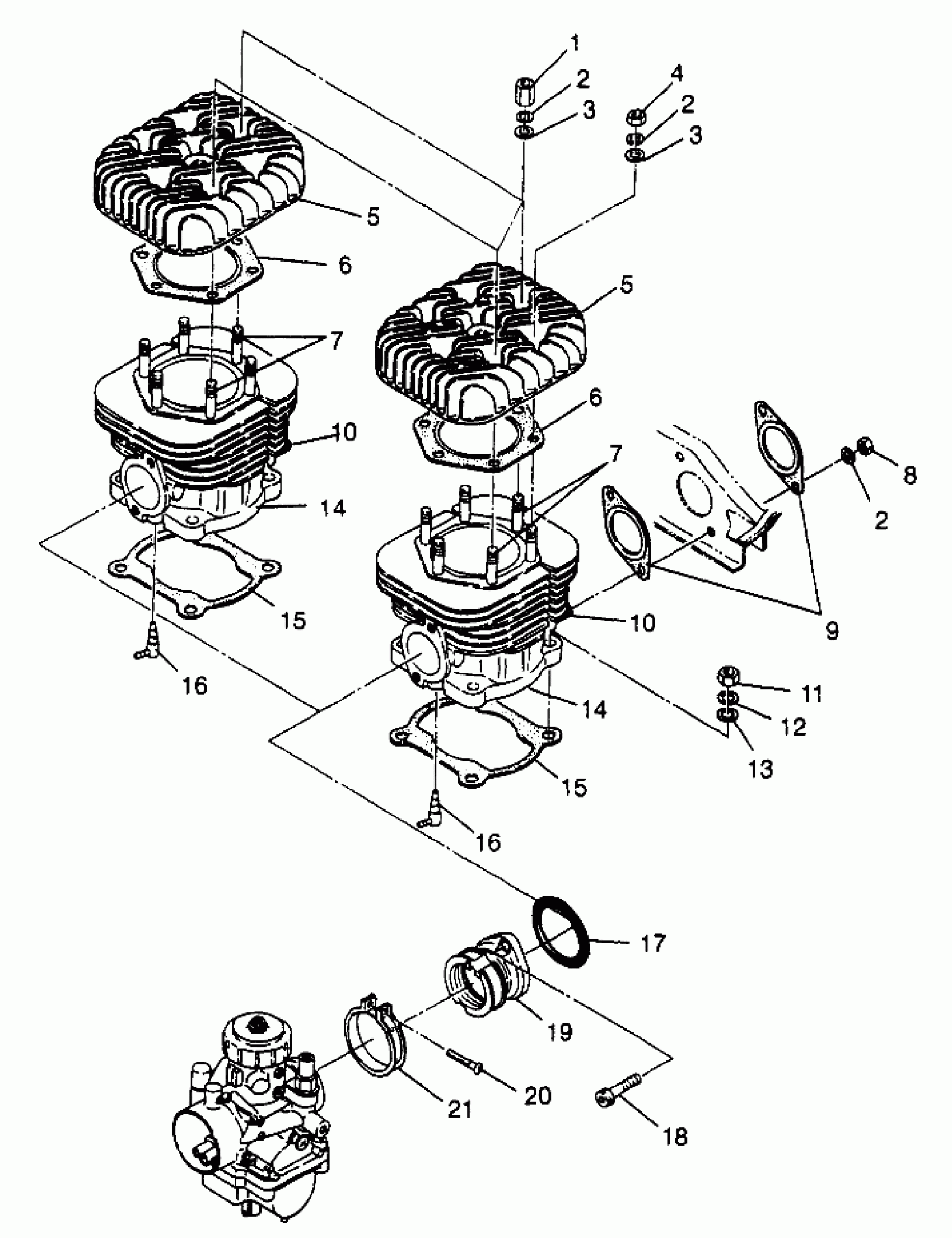

Polaris TRAIL RMK - 0970961 CYLINDER Trail RMK 0970961 (4938333833C006) Diagram
#
Description
Price
1
NUT
3083541
Unavailable
2
WASHER LOCK ,(10)
3080530
$3.19
2
WASHER LOCK ,(10)
3080530
$3.19
2
WASHER LOCK ,(10)
3080530
$3.19
3
WASHER(10)
3080142
$3.99
3
WASHER(10)
3080142
$3.99
4
NUT(10)
3080119
$2.39
5
HEAD, CYLINDER
3083707
Unavailable
5
HEAD, CYLINDER
3083707
Unavailable
6
GASKET,HEAD,(CP)
3084015
Unavailable
6
GASKET,HEAD,(CP)
3084015
Unavailable
7
Stud
3080283
$12.94
7
Stud
3080283
$12.94
8
NUT(10)
3080285
Unavailable
9
GASKET, EXHAUST
3084026
Unavailable
10
STUD,(10)
3085326
Unavailable
10
STUD,(10)
3085326
Unavailable
11
NUT-FLANGE(10)
3082911
$1.99
12
WASHER, SPRING(10)
3080281
$0.79
13
WASHER(10)
3080356
$2.99
14
CYLINDER (Incl. 7, 10)
3083695
Unavailable
14
CYLINDER (Incl. 7, 10)
3083695
Unavailable
15
GASKET, BASE
3084025
Unavailable
15
GASKET, BASE
3084025
Unavailable
16
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
16
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
17
O-RING Substituted by 3085619
3084272
Unavailable
18
Bolt, Allen
3081330
$3.99
19
ADAPTER,CARB. (Incl. 17)
3085044
Unavailable
20
SCREW,(10)
3081497
$2.39
21
BAND ASM. (Incl. 20)
3083166
$19.84
