Description

Price

1

Nut

7080229

$19.99

2

WASHER-LOCK(10)

7571610

$3.99

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

RIVET(50) Substituted by 7661130

7661643

Unavailable

5

GUIDE, RECOIL

5431385

$10.51

6

BRKT,ROPE GUIDE,BLK.

5222682-067

Unavailable

7

CONSOLE

5222756-067

Unavailable

8

KIT-CHOKE CONTROL

2200188

$24.27

9

Cable, Choke Control

7080290

$105.22

10

SWITCH,H-BAR HEATER

4110066

Unavailable

10

SWITCH,H-BAR HEATER

4110066

Unavailable

11

DECAL, CONSOLE [No Longer Available]

7072973

Unavailable

12

HOUSING

4020133

Unavailable

13

Housing w/Receptacle

4020057

$3.51

14

Housing

4020153

$1.49

15

HARNESS,MAIN WIRE

2460577

Unavailable

16

NUT(10)

7541925

$1.49

17

REGULATOR,14 VAC.LR-9

4060122

Unavailable

18

SPACER,REGULATOR

5211573

Unavailable

19

BOLT(10)

7512031

$2.23

20

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch bo

5410611

Unavailable

21

NUT, IGN.SWITCH(10)

7543101

Unavailable

22

KIT,IGN. SWITCH (Incl. 20)

2200357

Unavailable

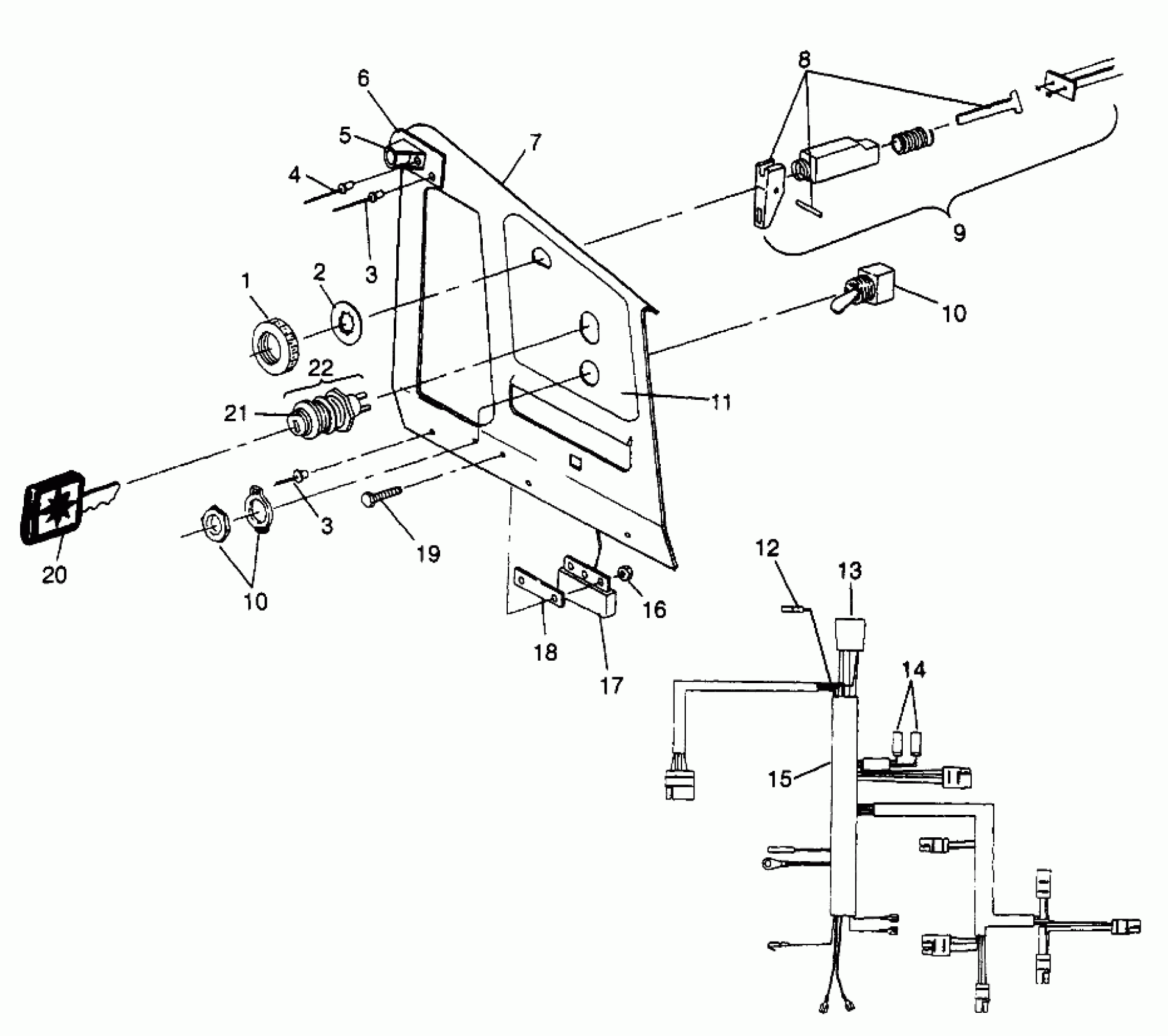

Polaris TRAIL RMK - 0970961 CONSOLE Trail RMK 0970961 (4938333833A013) Diagram

Nut

WASHER-LOCK(10)

RIVET,INTERLOCK,B(50)

RIVET,INTERLOCK,B(50)

RIVET(50) Substituted by 7661130

GUIDE, RECOIL

BRKT,ROPE GUIDE,BLK.

CONSOLE

KIT-CHOKE CONTROL

Cable, Choke Control

SWITCH,H-BAR HEATER

SWITCH,H-BAR HEATER

DECAL, CONSOLE [No Longer Available]

HOUSING

Housing w/Receptacle

Housing

HARNESS,MAIN WIRE

NUT(10)

REGULATOR,14 VAC.LR-9

SPACER,REGULATOR

BOLT(10)

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch bo

NUT, IGN.SWITCH(10)

KIT,IGN. SWITCH (Incl. 20)
