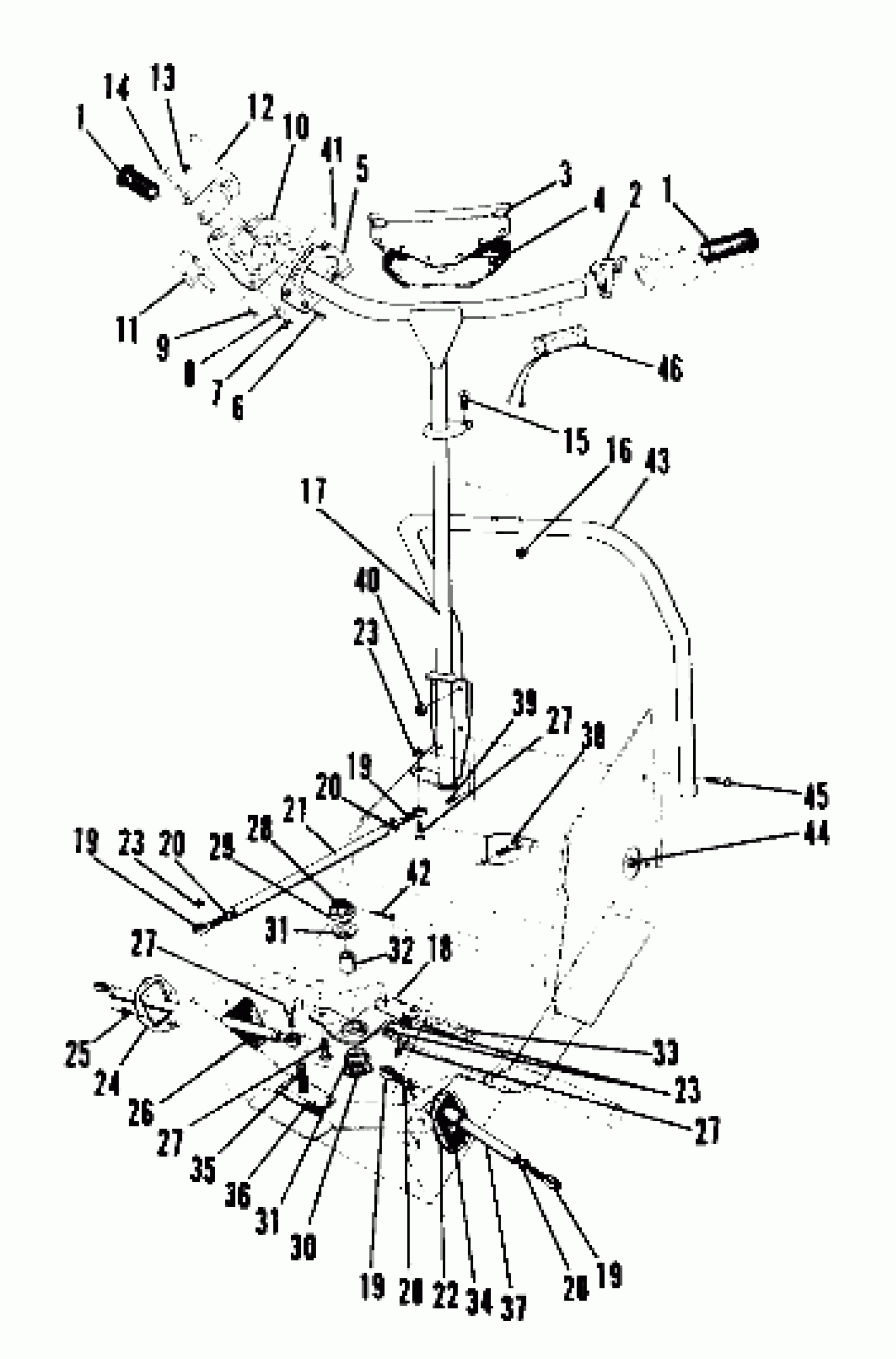

Polaris TRAIL 488 - 0850761 Steering (4909530953007A) Diagram
#
1
GRIP,H'BAR,BLACK Substituted by 5410272-067
5410272
Unavailable
1
GRIP,H'BAR,BLACK Substituted by 5410272-067
5410272
Unavailable
2
SWITCH DIMMER
4110040
Unavailable
3
PAD-HANDLEBAR [No Longer Available]
2690010
Unavailable
4
PAD, HANDLEBAR,(INDY) [No Longer Available]
5810265
Unavailable
5
BLOCK-ADAPTER
5430604
$13.75
6
SCREW-SEMS(10)
7511848
$3.99
7
RING-RETAINING EXTERNAL
7710401
$3.99
8
WASHER(10)
7555730
$3.99
9
SCREW,(10)
7511849
Unavailable
10
BLOCK,THROTTLE/BRAKE Substituted by 5431265
5430603
Unavailable
11
SWITCH-AUX.SHUT OFF Substituted by 4110056
4110058
Unavailable
12
LEVER-THROTTLE
5430652
Unavailable
13
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
14
PIN-RETAINING .186X1.780-AL
7661624
$12.79
15
SCREW(10) Substituted by 7512183
7512121
Unavailable
16
NUT-LOCK(10)
7542122
$1.49
17
POST, STEERING Substituted by 1823129-067
1823129
Unavailable
18
STEERING ARM CTR. Substituted by 1822040-067
1822040
Unavailable
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
19
ROD END,LH Substituted by 7060164
7060124
$48.56
19
ROD END RH Substituted by 7060165
7060125
$48.56
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
20
NUT HEX(10)
7542401
$2.39
20
NUT
7542424
$1.49
21
ROD-DRAG LINK
5332712
Unavailable
22
PLATE,LH,BOOTSEAL Substituted by 5210959-067
5210959
Unavailable
23
NUT LOCK(10)
7542403
$3.99
23
NUT LOCK(10)
7542403
$3.99
23
NUT LOCK(10)
7542403
$3.99
24
PLATE,RH,BOOT SEAL
5210904
Unavailable
25
RIVET(50)
7621301
$3.99
26
BOOT-TIE ROD
5410328
Unavailable
27
BOLT(10)
7512404
$3.99
27
BOLT(10)
7512404
$3.99
27
BOLT(10)
7512404
$3.99
27
BOLT(10)
7512404
$3.99
28
NUT(10)
7542712
$9.59
29
WASHER(10)
7555721
$1.49
30
WASHER,WAVE(10)
7555735
$3.99
31
BUSHING
3563907
$3.99
31
BUSHING
3563907
$3.99
32
BUSHING-SPACER
5010161
Unavailable
33
STOP STEERING [No Longer Available]
5220186
Unavailable
34
BOOT , LH
5410388
Unavailable
35
BOLT(10)
7512658
Unavailable
36
BLOCK-CTR.STEERING
5130534
Unavailable
37
ROD-TIE Substituted by 5332713-067
5332713
Unavailable
38
BOLT(10) Substituted by 7512377
7512394
Unavailable
39
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
41
SCREW(10)
7512465
$3.99
42
PIN COTTER(10)
7661203
$1.49
43
SUPPORT,STEERING Substituted by 1011488-067
1011488
Unavailable
44
Nut, Nylok
7542122
$1.49
45
BOLT-CARRIAGE(10)
7512262
Unavailable
46
HEATER,HANDLEBAR
2460247
Unavailable
