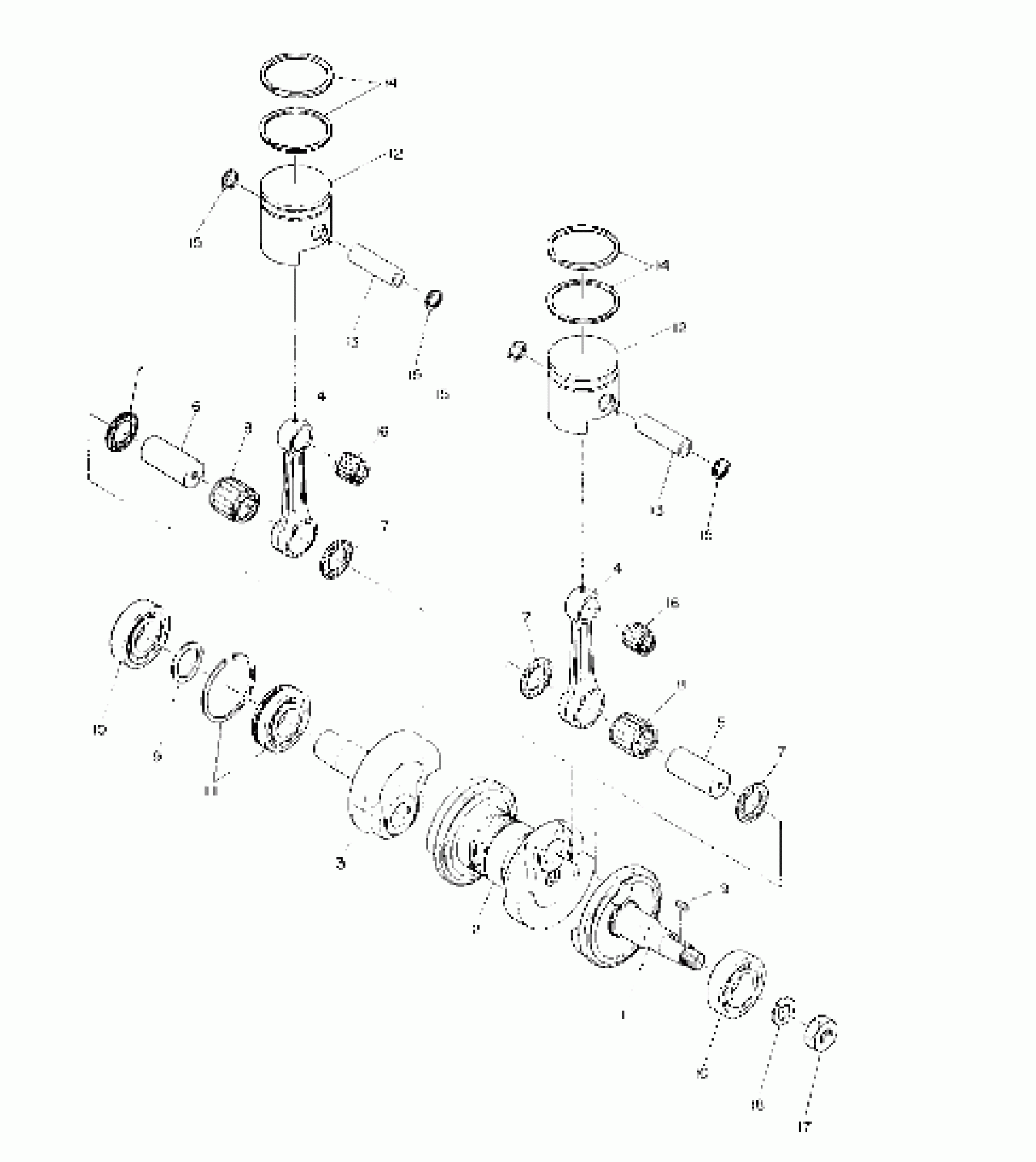

Polaris TRAIL 488 - 0850761 Piston and Crankshaft (4909530953019A) Diagram
#
Description
Price
-
CRANKSHAFT ASM. Substituted by 3083705 (Incl. 1-11)
3083542
Unavailable
1
CRANKSHAFT #1
3083362
Unavailable
2
CRANKSHAFT #2 Substituted by 3083706 (Incl. 5 & 6)
3083543
Unavailable
3
CRANKSHAFT #3 Substituted by 3084357
3083364
Unavailable
4
ROD-CONNECTING
3083252
$164.99
4
ROD-CONNECTING
3083252
$164.99
5
PIN,CRANK
3083233
$36.41
6
Pin, Crank, 2
3083456
Unavailable
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
7
SPACER(CRANKPIN)
3083277
$15.99
8
BEARING,LGE.END Substituted by 3085720
3083276
Unavailable
8
BEARING,LGE.END Substituted by 3085720
3083276
Unavailable
9
SPACER,CRANKSHAFT
3080447
$1.99
10
BEARING,BALL Substituted by 3083805
3080004
Unavailable
10
BEARING,BALL Substituted by 3083805
3080004
Unavailable
11
BEARING, BALL Substituted by 3084602
3083544
Unavailable
12
PISTON Substituted by 3083841
3083545
Unavailable
12
PISTON Substituted by 3083841
3083545
Unavailable
13
CRANKSHAFT [No Longer Available]
3083511
Unavailable
13
CRANKSHAFT [No Longer Available]
3083511
Unavailable
14
RING, PISTON
3083546
Unavailable
14
RING, PISTON
3083546
Unavailable
15
RING SNAP Substituted by 3083682
3081718
Unavailable
15
RING SNAP Substituted by 3083682
3081718
Unavailable
15
RING SNAP Substituted by 3083682
3081718
Unavailable
15
RING SNAP Substituted by 3083682
3081718
Unavailable
16
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
16
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
17
NUT
3083093
$19.99
18
WASHER-SPRING(10)
3083094
$3.17
19
KEY
3081447
Unavailable
