Description

Price

1

PUMP, OIL (Incl. 2-9)

3083556

Unavailable

2

NUT(10)

3083120

$3.19

3

WASHER-SPRING(10)

3083121

$299.99

4

LEVER, CONTROL

3083557

Unavailable

5

SPRING-RETURN

3083123

Unavailable

6

COLLAR, CAMSHAFT Substituted by 3083445

3083404

Unavailable

7

SCREW-AIR VENT

3083125

Unavailable

8

PACKING(10)

3083126

$4.03

9

O RING

3083127

Unavailable

10

BUSHING(OIL PUMP)

3083353

$31.99

11

SPACER

3083130

$1.59

12

GEAR,SMALL,OIL PUMP

3083131

$89.99

13

SCREW&WASHER ASM. Substituted by 3083774

3083558

Unavailable

14

PIPE,RUBBER(L=145) Substituted by 3083534

3083163

Unavailable

14

PIPE,RUBBER(L=145) Substituted by 3083534

3083163

Unavailable

15

CLAMP-HOSE,(10)

3083141

$1.49

15

CLAMP-HOSE,(10)

3083141

$1.49

15

CLAMP-HOSE,(10)

3083141

$1.49

15

CLAMP-HOSE,(10)

3083141

$1.49

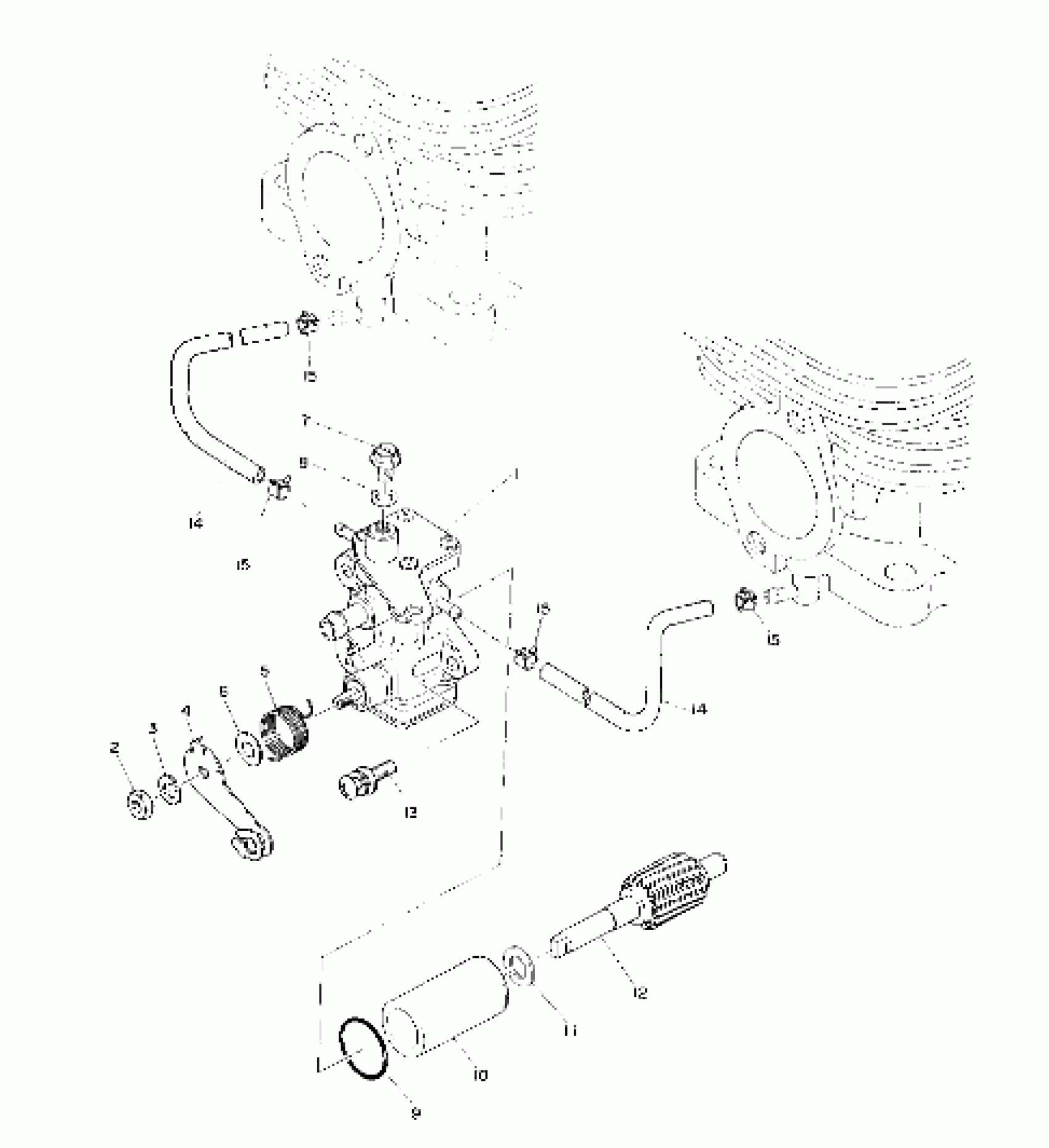

Polaris TRAIL 488 - 0850761 Oil Pump (4909530953022A) Diagram

PUMP, OIL (Incl. 2-9)

NUT(10)

WASHER-SPRING(10)

LEVER, CONTROL

SPRING-RETURN

COLLAR, CAMSHAFT Substituted by 3083445

SCREW-AIR VENT

PACKING(10)

O RING

BUSHING(OIL PUMP)

SPACER

GEAR,SMALL,OIL PUMP

SCREW&WASHER ASM. Substituted by 3083774

PIPE,RUBBER(L=145) Substituted by 3083534

PIPE,RUBBER(L=145) Substituted by 3083534

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)

CLAMP-HOSE,(10)
