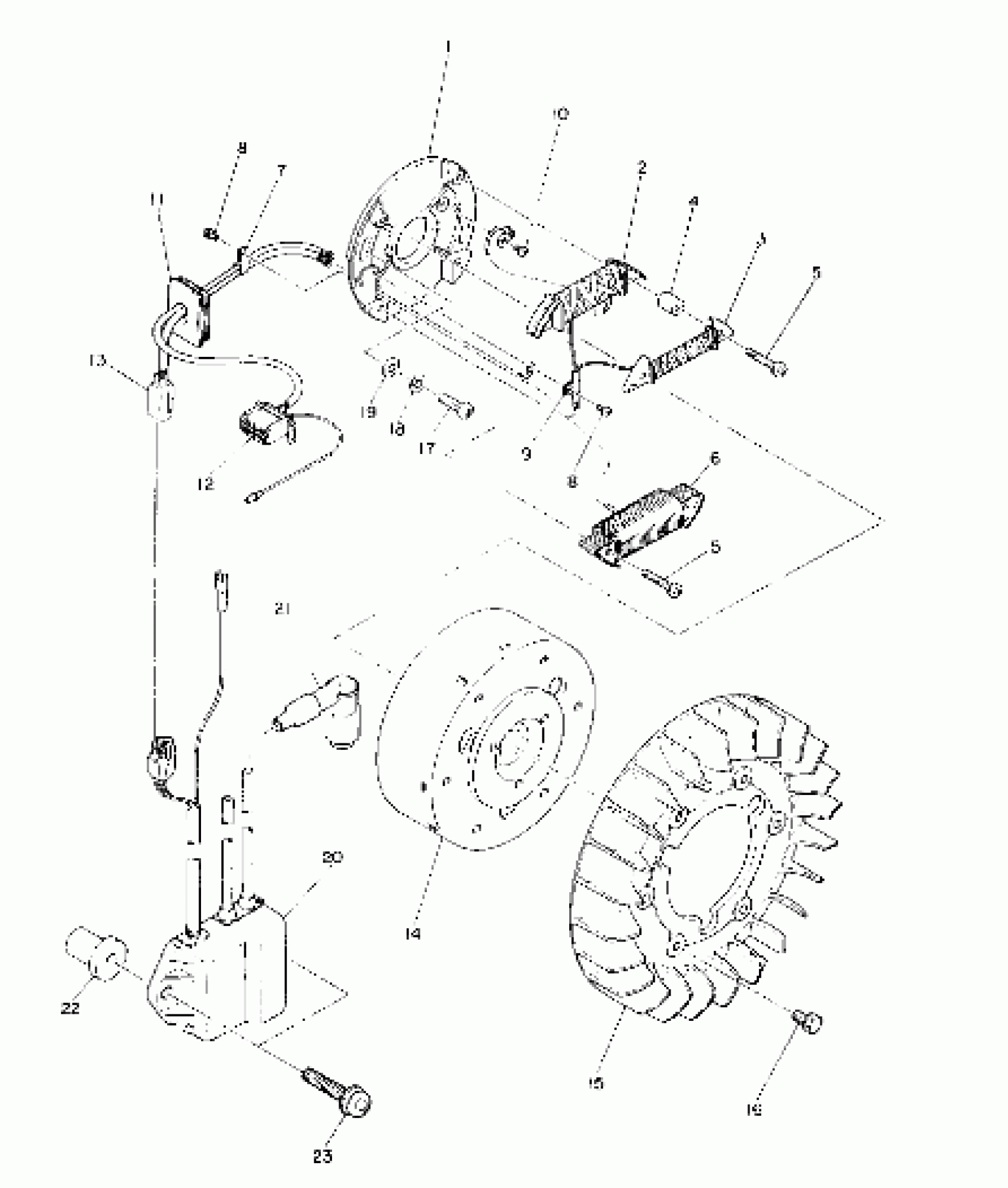

Polaris TRAIL 488 - 0850761 Magneto (4909530953021A) Diagram

#

Description
Price

-

PLATE ASM (Incl. 2-13)

3083143

$216.99

1

DESC NOT_AVAILABLE (Incl. 2-5, 7-13)

3083144

Unavailable

2

COIL EXCITER

3083145

Unavailable

3

COIL-PULSE

3083146

Unavailable

4

COLLAR

3083147

Unavailable

5

SCREW

3082483

Unavailable

5

SCREW

3082483

Unavailable

6

COIL LIGHTING

3083148

$76.65

7

Clamp

3081296

Unavailable

8

SCREW&WASHER,(10)

3081260

$3.19

8

SCREW&WASHER,(10)

3081260

$3.19

9

CLAMP

3083149

Unavailable

10

SCREW&WASHER ASM(10)

3081256

$3.19

11

Grommet

3082969

Unavailable

12

COUPLER,MALE

3081513

$19.99

13

COUPLER-3P

3083150

$10.63

14

FLYWHEEEL ASM. (Incl. 15-16)

3083559

$404.49

15

BLOWER

3083560

Unavailable

16

BOLT&WASHER

3083153

Unavailable

17

SCREW(10)

3081469

Unavailable

18

WASHER SPRING(10)

3080077

$2.39

19

Washer

3082206

$1.49

20

COIL, IGNITION Substituted by 3083726

3083561

Unavailable

21

CAP-SPARK PLUG Substituted by 4020129

3083282

Unavailable

22

NUT-RUBBER

3083240

Unavailable

23

SCREW&WASHER ASM. Substituted by 3083784

3083562

Unavailable
