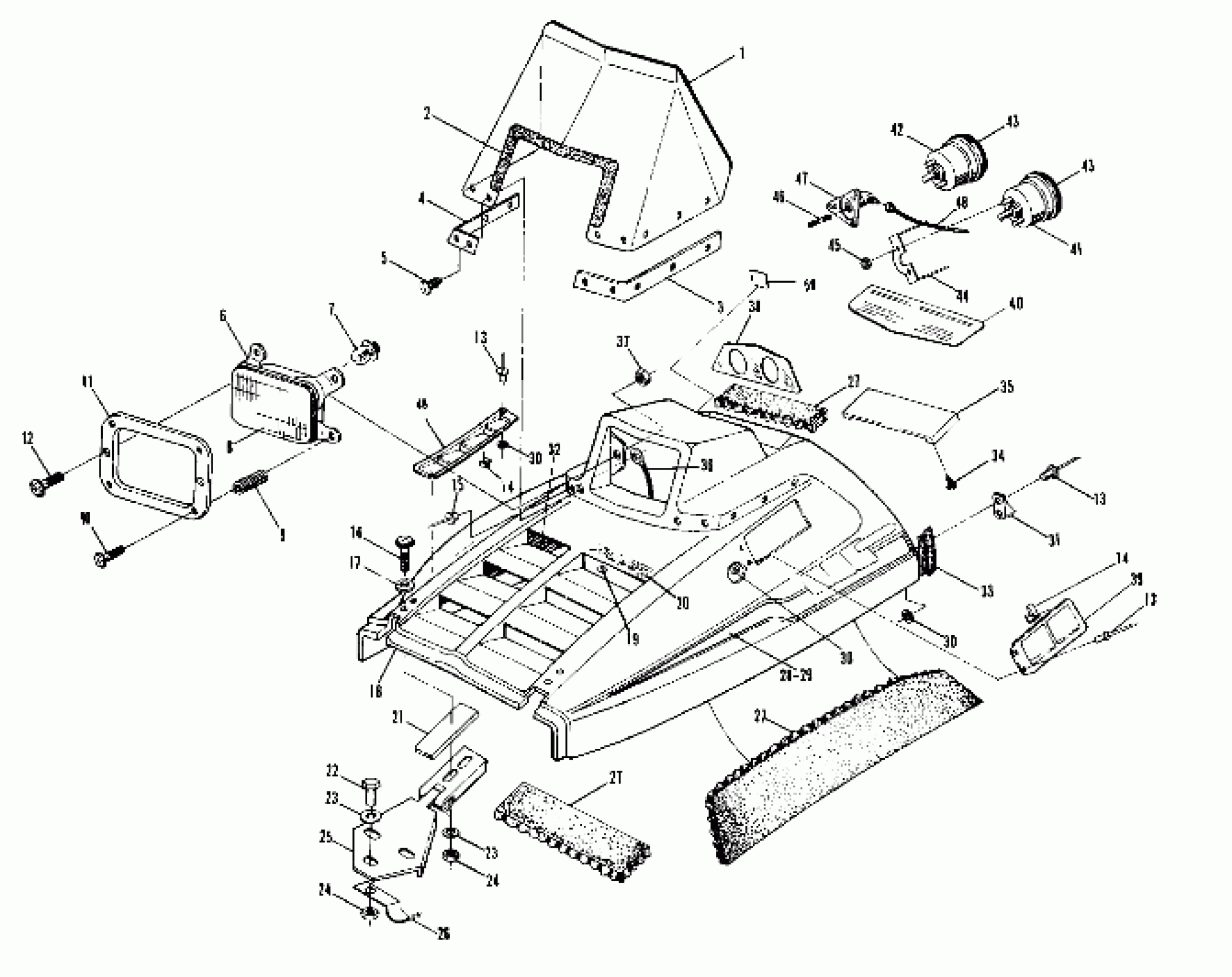

Polaris TRAIL 488 - 0850761 Hood (4909530953003A) Diagram
#
-
DESC NOT_AVAILABLE (High) - Opt.
2870497
Unavailable
-
DESC NOT_AVAILABLE (Low) - Opt.
2870533
Unavailable
-
WINDSHIELD (Smoke) - Opt.
5430691
Unavailable
1
WINDSHIELD [No Longer Available] (Bronze)
5430664
Unavailable
2
PAD, WINDSHIELD
5810248
Unavailable
3
BAND-W/S LH [No Longer Available]
5850054
Unavailable
4
BAND-W/S RH [No Longer Available]
5850055
Unavailable
5
CLIP-PLASTIC(10) Substituted by 7621505
7670041
Unavailable
6
HEADLIGHT,ASM [No Longer Available] (Incl. 7-10)
2431004
Unavailable
7
BULB,QUARTZ.H/L,INDY
2870448
$24.99
7
BULB, H/L
4030028
$29.99
8
UNIT-HEADLAMP
4032001
Unavailable
9
SPRING-ADJ
4032002
Unavailable
10
SCREW, ADJ.(10)
4032003
Unavailable
11
PLATE-H/L RING
5210940
Unavailable
12
SCREW(10)
7511985
Unavailable
13
RIVET, POP(50)
7621322
$0.56
13
RIVET, POP(50)
7621322
$0.56
13
RIVET, POP(50)
7621322
$0.56
14
U CLIP(10)
7670042
$1.59
14
U CLIP(10)
7670042
$1.59
15
BLIND RIVET(50)
7621403
$1.49
16
BOLT (GOLD)(10)
7512258
Unavailable
17
WASHER,(10) [No Longer Available]
7555731
Unavailable
18
HOOD, BURGUNDY [No Longer Available]
5440185
Unavailable
19
PALNUT(10)
7670009
$2.39
20
DESC NOT_AVAILABLE (Gold)
5430865
Unavailable
21
PAD [No Longer Available]
5850063
Unavailable
22
BOLT(10)
7512240
$3.99
23
WASHER,WROUGHT(10)
7558302
$1.59
23
WASHER,WROUGHT(10)
7558302
$1.59
24
NUT-LOCK(10)
7542122
$1.49
24
NUT-LOCK(10)
7542122
$1.49
25
HINGE,LH,HOOD Substituted by 2635001-067
2635001
Unavailable
25
HINGE ASM,RH,HOOD Substituted by 2635002-067
2635002
Unavailable
26
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
27
FOAM-HOOD-BULK-14X36
5810221
Unavailable
27
FOAM-HOOD-BULK-14X36
5810221
Unavailable
27
FOAM-HOOD-BULK-14X36
5810221
Unavailable
28
KIT, DECAL,'85 TRAIL [No Longer Available] (Inch. 29, 38, 39)
2200221
Unavailable
29
DECAL,HOOD,LH [No Longer Available]
7072104
Unavailable
29
DECAL,HOOD,RH [No Longer Available]
7072105
Unavailable
30
RIVET BURR(50)
7555727
$1.49
30
RIVET BURR(50)
7555727
$1.49
30
RIVET BURR(50)
7555727
$1.49
31
CUP, HOOD LATCH,(10)
5430733
$4.84
32
FOIL-TAPE
5810108
Unavailable
33
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
34
SCREW(10)
7511840
Unavailable
35
COVER,INLET,BLACK
5430739
Unavailable
36
CABLE, HOOD
7080284
Unavailable
37
NUT(10)
7541925
$1.49
38
DECAL, INSTRUMENT [No Longer Available]
7072024
Unavailable
39
LOUVER,AIR OUTLET [No Longer Available]
5430753
Unavailable
40
DECAL, WARNING [No Longer Available]
7072150
Unavailable
41
HEAD-SPEEDOMETER [No Longer Available]
3280064
Unavailable
42
HEAD-TACHOMETER [No Longer Available]
3280066
Unavailable
43
KIT-GLASS&BEZEL [No Longer Available]
2200205
Unavailable
43
KIT-GLASS&BEZEL [No Longer Available]
2200205
Unavailable
44
BRACKET [No Longer Available]
3280062
Unavailable
45
NUT
3280063
Unavailable
46
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
47
ANGLE DRIVE
3280046
Unavailable
48
CABLE-SPEEDOMETER
3280034
Unavailable
49
LOUVER-HOOD
5430661
Unavailable
50
EMBLEM, 30 YR.,GOLD (Gold)
5430740
Unavailable
