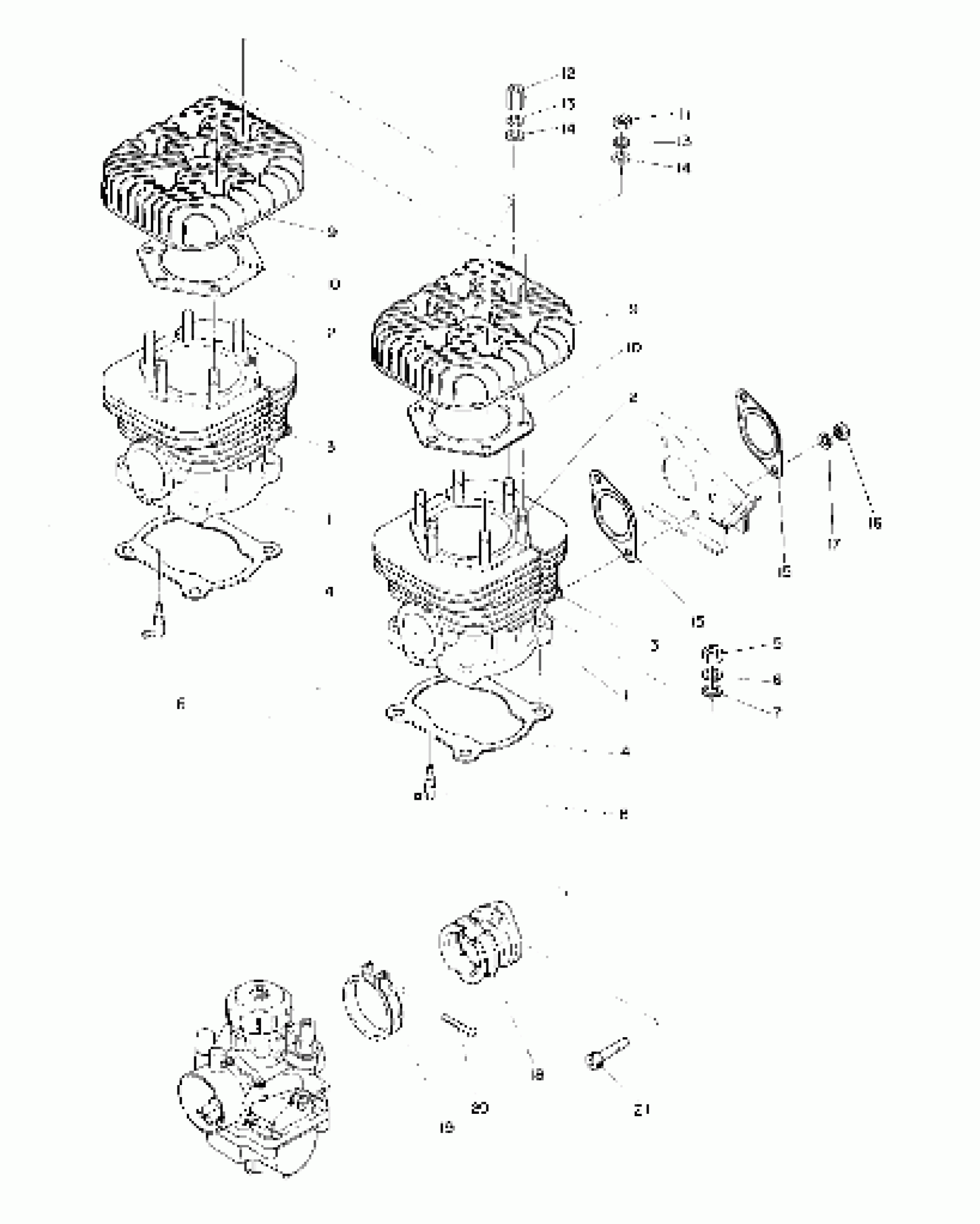

Polaris TRAIL 488 - 0850761 Cylinder (4909530953018A) Diagram
#
Description
Price
1
CYLINDER Substituted by 3083695 (Incl. 2, 3, 8)
3083538
Unavailable
1
CYLINDER Substituted by 3083695 (Incl. 2, 3, 8)
3083538
Unavailable
2
Stud
3080283
$12.94
2
Stud
3080283
$12.94
3
STUD (10)
3080016
$5.75
3
STUD (10)
3080016
$5.75
4
GASKET-CYL
3083081
Unavailable
4
GASKET-CYL
3083081
Unavailable
5
NUT Substituted by 3082911
3080047
Unavailable
6
WASHER, SPRING(10)
3080281
$0.79
7
WASHER(10)
3080356
$2.99
8
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
8
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
9
HEAD, CYLINDER Substituted by 3083707
3083539
Unavailable
9
HEAD, CYLINDER Substituted by 3083707
3083539
Unavailable
10
GASKET, HEAD Substituted by 3083768
3083540
Unavailable
10
GASKET, HEAD Substituted by 3083768
3083540
Unavailable
11
NUT(10)
3080119
$2.39
12
NUT
3083541
Unavailable
13
WASHER LOCK ,(10)
3080530
$3.19
13
WASHER LOCK ,(10)
3080530
$3.19
14
WASHER(10)
3080142
$3.99
14
WASHER(10)
3080142
$3.99
15
GASKET COMPL. (EXHAUST) Substituted by 3083770
3082068
Unavailable
15
GASKET COMPL. (EXHAUST) Substituted by 3083770
3082068
Unavailable
16
NUT(10)
3080285
Unavailable
17
Washer, Spring
3080530
$3.19
18
MOUNT, CARBURETOR Substituted by 3085044
3083306
Unavailable
19
BAND ASM. (Incl. 20)
3083166
$19.84
20
SCREW Substituted by 3081497
3083086
Unavailable
21
Bolt, Allen
3081330
$3.99
