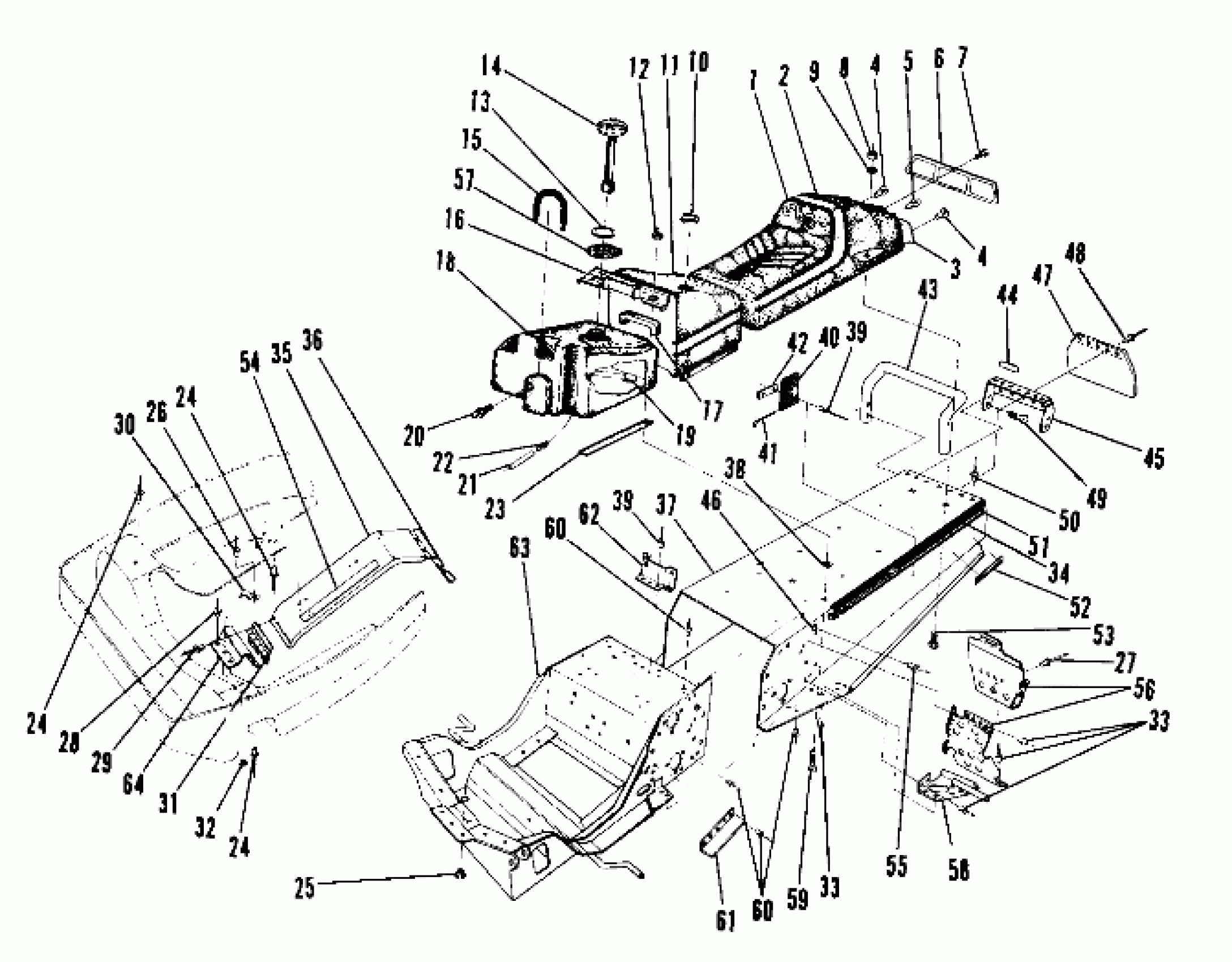

Polaris TRAIL 488 - 0850761 Chassis and Seat (4909530953001A) Diagram
#
1
SEAT ASM. Substituted by 2200748 (Incl. 2-7) NOT_AVAILABLE
2681224
Unavailable
2
COVER, SEAT [No Longer Available]
2681225
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
GROMMET-GAS TANK
5430575
Unavailable
11
COVER, TANK [No Longer Available]
2681226
Unavailable
12
Nut, Nylok
7542122
$1.49
13
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
14
GAUGE,GAS Substituted by 2511246
2511149
Unavailable
15
SPRING,TANK,(10)
7042020
$13.75
16
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
17
CUSHION,TANK H.D.
5420126
Unavailable
18
TANK,GAS (Incl. 19-22)
2511150
Unavailable
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
FITTING - OUTLET(10)
7052023
$24.99
21
KIT-TANK VENT
2200190
Unavailable
22
VENT-TANK
5430579
Unavailable
23
PAD-GAS TANK
5810063
$4.95
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
25
PLUG
7080288
Unavailable
26
POP RIVET(50)
7621402
$1.49
27
RIVET(50)
7621431
$1.49
28
RIVET(50)
7621452
$1.49
29
RIVET, POP(50)
7621330
$1.49
30
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
31
HINGE
5210728
Unavailable
32
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
34
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
35
GUARD, CLUTCH Substituted by 2251183
5223899
Unavailable
36
PIN,RETAINING,(10)
7080216
$9.70
37
TUNNEL ASM. [No Longer Available] (Incl. 45, 56, 61-63)
1011550
Unavailable
38
SPEED NUT(10)
7670021
$6.99
39
POP RIVET(50)
7621323
$1.49
39
POP RIVET(50)
7621323
$1.49
40
BELT,SEAT
7080322
Unavailable
41
WIRE-SEAT-BELT
5223864
Unavailable
42
PLATE-SEAT BELT
5210842
Unavailable
43
BUMPER-REAR
5224263
Unavailable
44
DECAL, TRACK Substituted by 7072872
7072132
Unavailable
45
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
46
SNAP-MALE(10)
7080227
Unavailable
47
FLAP, SNOW, GOLD Substituted by 5410394
5410392
$121.02
48
RIVET(50)
7621460
$1.49
49
SCREW(10)
7512252
Unavailable
50
POP RIVET(50)
7621425
$1.49
51
DECAL,TUNNEL [No Longer Available]
7072126
Unavailable
52
REFLECTOR RED
2670070
$9.91
53
BOLT(10)
7512103
$3.19
54
Desc not available [No Longer Available]
7071854
Unavailable
55
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
56
FOOT REST,LH Substituted by 2251273
1011432
Unavailable
56
FOOTREST ASM,RH Substituted by 2200254
1011433
Unavailable
57
FOAM, FILLER
5810201
Unavailable
58
SUPPORT,RH TRLG.ARM,BLK. Substituted by 1011578-067
1011428
Unavailable
58
SUPPORT, LH, BLK. Substituted by 1011577-067
1011429
Unavailable
59
BOLT(10)
7512193
$2.39
60
RIVET
7621429
$1.49
60
RIVET
7621429
$1.49
61
GUARD
5223789
Unavailable
62
BRACKET Substituted by 5221932-067
5221932
Unavailable
63
BULKHEAD Substituted by 1011612
1011560
Unavailable
64
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
