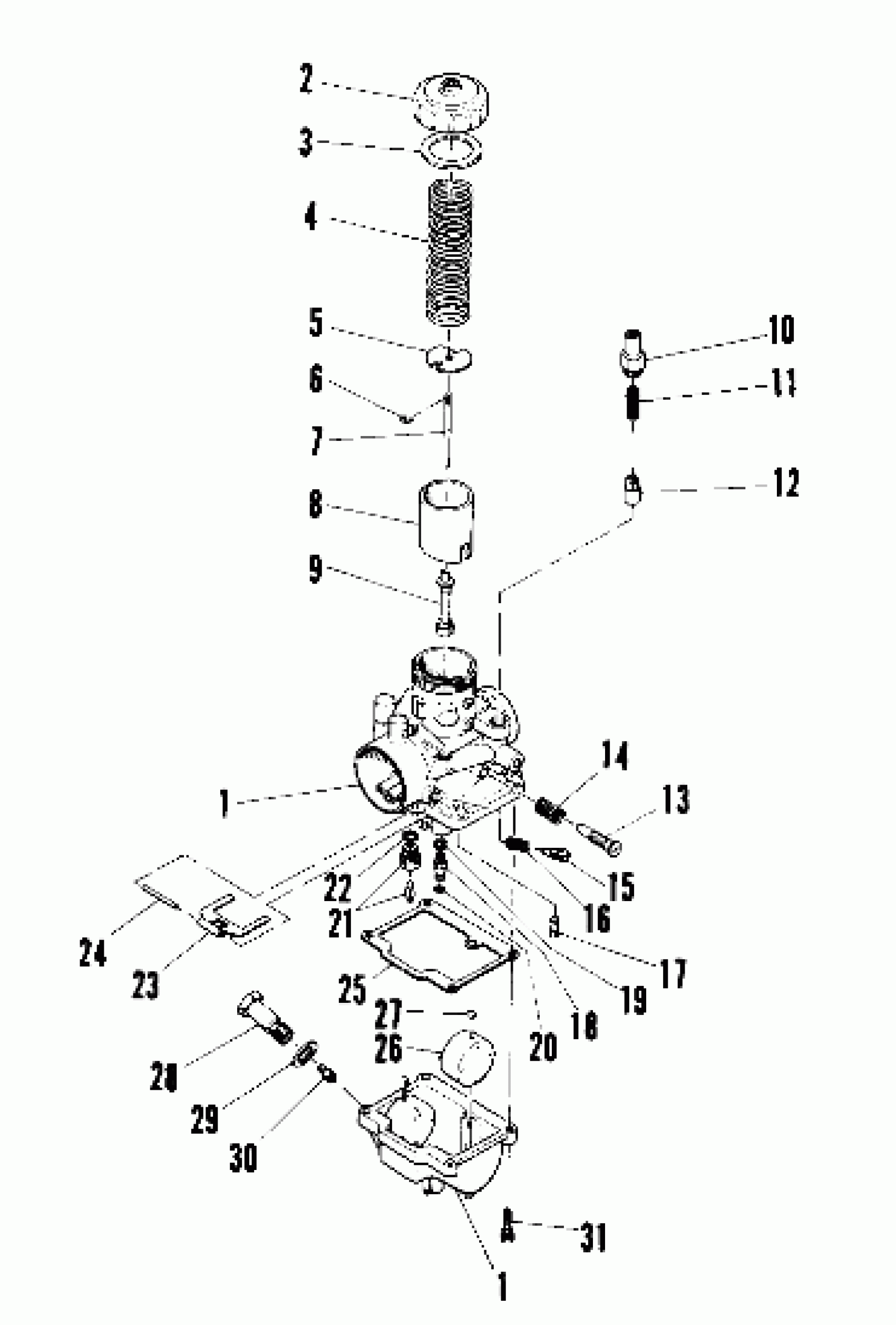

Polaris TRAIL 488 - 0850761 Carburetor (4909530953023A) Diagram
#
Description
Price
1
CARBURETOR [No Longer Available] (Incl. 2-31)
3130347
Unavailable
1
CARBURETOR [No Longer Available] (Incl. 2-31)
3130347
Unavailable
2
Carburetor Cap (Incl. 3)
-------
Unavailable
3
GASKET
-------
Unavailable
4
SPRING, THROTTLE
3130318
$20.22
5
PLATE,THROTTLE Substituted by 3130027
3130216
Unavailable
6
E RING(10) Substituted by 3130003
3130245
Unavailable
7
JET NEEDLE
3130329
Unavailable
8
THROTTLE VALVE 3.0 Substituted by 3130381 (3.0)
3130307
Unavailable
9
NEEDLE JET Substituted by 3130499
3130348
Unavailable
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR Substituted by 3130011
3130233
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET, IDLER H30 Substituted by 3130065 (No. 30}
3130331
Unavailable
18
SETTER,NEEDLE JET
3130030
Unavailable
19
WASHER (10)
3130014
$1.59
20
O RING Substituted by 3130015
3130259
Unavailable
21
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
22
PACKING(10) Substituted by 3130017
3080524
Unavailable
23
ARM,FLOAT
3130018
$24.27
24
PIN, FLOAT Substituted by 3130235
3130240
$8.89
25
PACKING,FLOAT CHAMBER
3130020
$16.17
26
FLOAT ASM. Substituted by 3130430
3130032
Unavailable
27
CAP,(10) Substituted by 3130237
3130022
Unavailable
28
BOLT, BANJO
3130210
Unavailable
29
WASHER
3130024
Unavailable
30
JET,MAIN HX.HD#280(10) Substituted by 3130131
3080715
Unavailable
31
SCREW & WASHER(10)
3130025
$3.19
