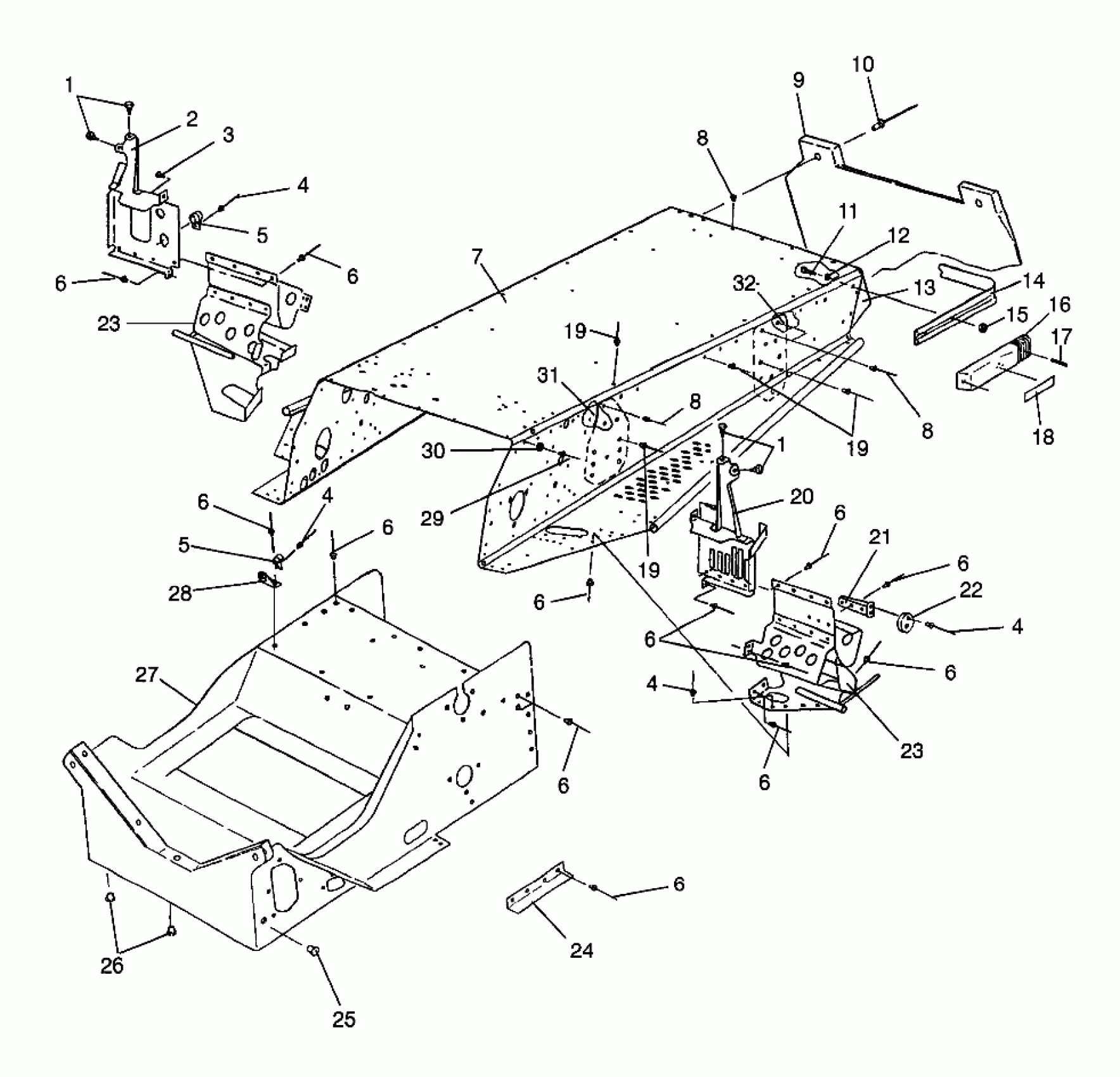

Polaris TRAIL - 0982761 TUNNEL TRAIL 0982761 (4942584258A005) Diagram
#
1
BUMPER,HOOD
5410768
$2.95
1
BUMPER,HOOD
5410768
$2.95
2
MT,CONSOLE,RH
1011952-067
$339.99
3
SCREW(10)
7512057
$2.38
4
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET,3/16X.402(50)
7621432
$1.49
4
RIVET,3/16X.402(50)
7621432
$1.49
5
GUIDE, RECOIL
5431385
$10.51
5
GUIDE, RECOIL
5431385
$10.51
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
7
TUNNEL ASM,F/C
1012330
Unavailable
8
RIVET ,(50)
7661836
$0.63
8
RIVET ,(50)
7661836
$0.63
8
RIVET ,(50)
7661836
$0.63
9
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106
5432149
Unavailable
10
POP RIVET(50)
7621418
$1.49
11
BOLT(10)
7512240
$3.99
12
WASHER(10)
7558301
$1.49
13
PANEL,TUNNELBACK
5241053-067
$308.99
14
BUMPER,REAR,STD.
5224674-067
Unavailable
15
NUT-LOCK(10)
7542122
$1.49
16
CAP, BUMPER, BLK.
5430930-070
Unavailable
17
SCREW(10)
7511863
$1.99
18
REFLECTOR RED
2670070
$9.91
19
RIVET ,(50)
7661837
$1.49
19
RIVET ,(50)
7661837
$1.49
19
RIVET ,(50)
7661837
$1.49
20
MT,CONSOLE,LH
1011951-067
$35.51
21
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
22
STOP,SIDEPANEL BUMPER
5411172
Unavailable
23
FOOTREST ASM,LH
1011954
Unavailable
23
FOOTREST ASM,RH
1011955
$126.41
23
FOOTREST ASM,LH
1011954
Unavailable
23
FOOTREST ASM,RH
1011955
$126.41
24
GUARD,ADAPTER GUIDE
5222857
$12.94
25
PLUG, HOLE(10)
7080416
$5.65
26
PLUG-HOLE
7080398
$4.84
27
BULKHEAD ASM,TRAIL,BLK.
1012483-067
Unavailable
28
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
29
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
30
SNAP-MALE(10)
7080227
Unavailable
31
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
31
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
32
PAD,LH,R.SUSP.
5241268-067
Unavailable
32
PAD,RH,R.SUSP.
5241269-067
Unavailable
