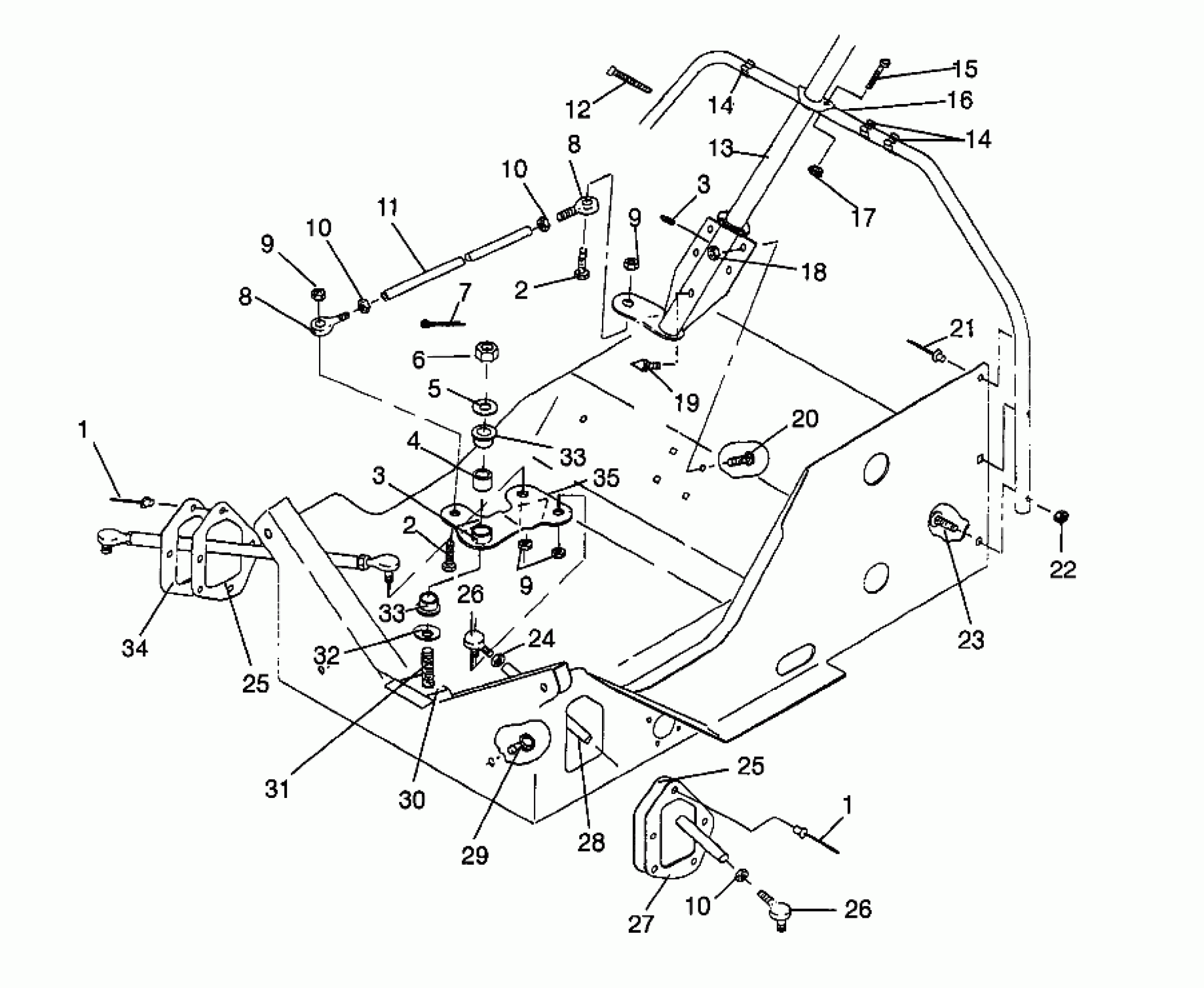

Polaris TRAIL - 0982761 STEERING - 0982761 (4942584258b004) Diagram
#
1
RIVET(50)
7621340
$0.56
1
RIVET(50)
7621340
$0.56
2
BOLT(10)
7512404
$3.99
2
BOLT(10)
7512404
$3.99
3
FITTING,LUB/VEN(10)
7080561
$4.79
3
FITTING,LUB/VEN(10)
7080561
$4.79
4
BUSHING
5010322
Unavailable
5
WASHER(10)
7555721
$1.49
6
NUT FLEX,(10)
7542703
Unavailable
7
PIN COTTER(10)
7661203
$1.49
7
PIN COTTER(10)
7661203
$1.49
8
ROD END, RH.
7060165
$48.56
8
ROD END, LH.
7060164
$48.56
8
ROD END, RH.
7060165
$48.56
8
ROD END, LH.
7060164
$48.56
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
9
NUT LOCK(10)
7542403
$3.99
10
NUT HEX(10)
7542401
$2.39
10
NUT
7542424
$1.49
10
NUT HEX(10)
7542401
$2.39
10
NUT
7542424
$1.49
10
NUT HEX(10)
7542401
$2.39
10
NUT
7542424
$1.49
11
ROD-DRAG LINK
5332712
Unavailable
12
STRAP, BLK
7080272
Unavailable
13
POST,STEERING
1822257-067
Unavailable
14
CLIP(10)
7080278
$2.63
14
CLIP(10)
7080278
$2.63
15
SCREW
7517377
$4.79
16
HOOP,STEERING,BLK.
1012326-067
Unavailable
18
NUT FLEX-LOC(10)
7542303
$6.39
19
ZERK,FITTING,THREADED(10)
7080433
$1.49
20
BOLT,(10)
7517428
$2.39
21
RIVET,INTERLOCK,B(50)
7661638
$1.49
22
BOLT-CARRIAGE(10)
7512275
$3.99
23
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
24
BOOT,TIEROD,LH,XTRA
5411122
Unavailable
24
BOOT,TIEROD,RH,XTRA
5411123
$20.22
25
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
25
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
25
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
25
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
26
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
26
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
27
TIEROD,BLK
5020856-067
Unavailable
28
CLIP, PLASTIC(10)
4020139
$4.79
29
BLOCK,STRG,(CAST)
5630563
$32.37
30
BOLT(10)
7512682
Unavailable
31
WASHER,WAVE(10)
7555735
$3.99
32
BUSHING
3563907
$3.99
33
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
33
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
34
STRG.ASM,CTR. (Incl. 3,32)
1822286
$29.60
