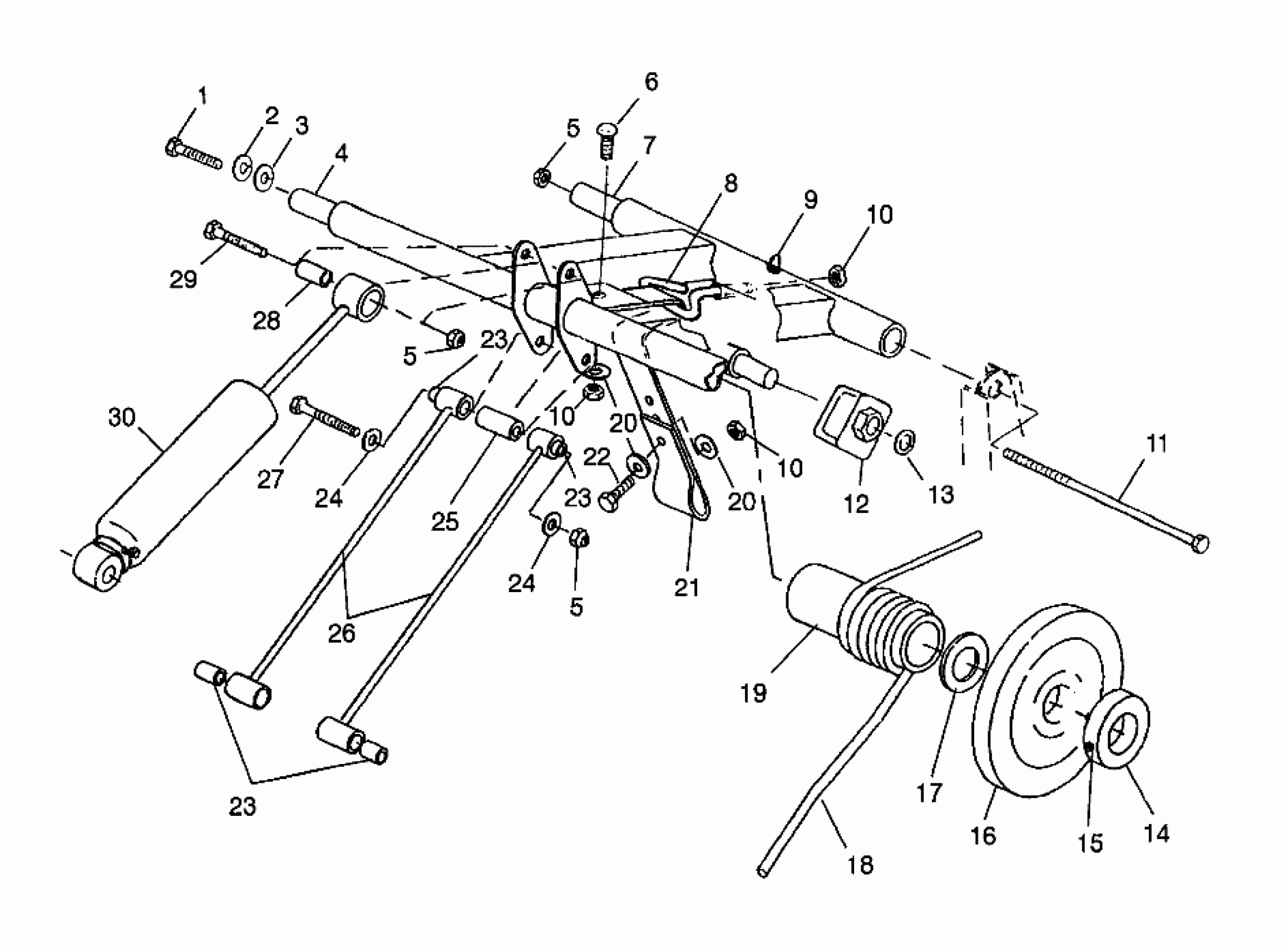

Polaris TRAIL - 0982761 REAR TORQUE ARM - 0982761 (4942584258b011) Diagram
#
Description
Price
1
SCREW,(10)
7517247
$3.19
2
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
3
WASHER(10)
7555893
$1.49
4
SHAFT,R.TORQUE,UPPER
5020845
$63.99
5
NUT LOCK(10)
7542411
$3.19
5
NUT LOCK(10)
7542411
$3.19
5
NUT LOCK(10)
7542411
$3.19
6
BOLT(10)
7512377
$4.79
7
Shaft
5333536
Unavailable
8
BOLT,EYE
7010050
Unavailable
9
ZERK,FITTING,THREADED(10)
7080433
$1.49
10
NUT-5/16-18 NYLOK-Y
7542324
$1.49
10
NUT-5/16-18 NYLOK-Y
7542324
$1.49
10
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
Screw
7517232
$19.99
12
ROLLER, SPRING ADJ.
5431168
Unavailable
13
CLIP-PUSH ON
7080394
$2.39
14
COLLAR,BRG LOCK
5010404
Unavailable
15
SCREW-SET(10)
7512257
$3.99
16
Wheel, Carrier
1543023
Unavailable
17
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
18
SPRING,LH,TORS(.421DIA) (.421)
7041461-067
Unavailable
18
SPRING,RH,TORS(.406DIA) (.406)
7041464-067
Unavailable
18
SPRING,RH,TORS(.421DIA) (.421)
7041462-067
$113.32
18
SPRING,LH,TORS(.406DIA) (.406)
7041463-067
Unavailable
19
SLEEVE,TORSION SPRING
5431923
$6.39
20
WASHER(10)
7555716
$1.59
20
WASHER(10)
7555716
$1.59
21
STRAP,LIMITER
5411061
Unavailable
22
SCREW(10)
7512310
$2.39
23
BUSHING,PIVOT TUBE
5020561
$1.59
23
BUSHING,PIVOT TUBE
5020561
$1.59
23
BUSHING,PIVOT TUBE
5020561
$1.59
24
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
24
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
25
Spacer
5333559
Unavailable
26
ROD,SHOCK
1541015-067
Unavailable
27
BOLT(10)
7515472
$2.39
28
BUSHING
5010422
$11.99
29
BOLT(10) Substituted by 7515492
7512410
Unavailable
30
SHOCK,GAS,ADJ,R.TRACK
7041441
Unavailable
