RAIL MOUNTING (SUSPENSION) - 0982761 (4942584258b009)

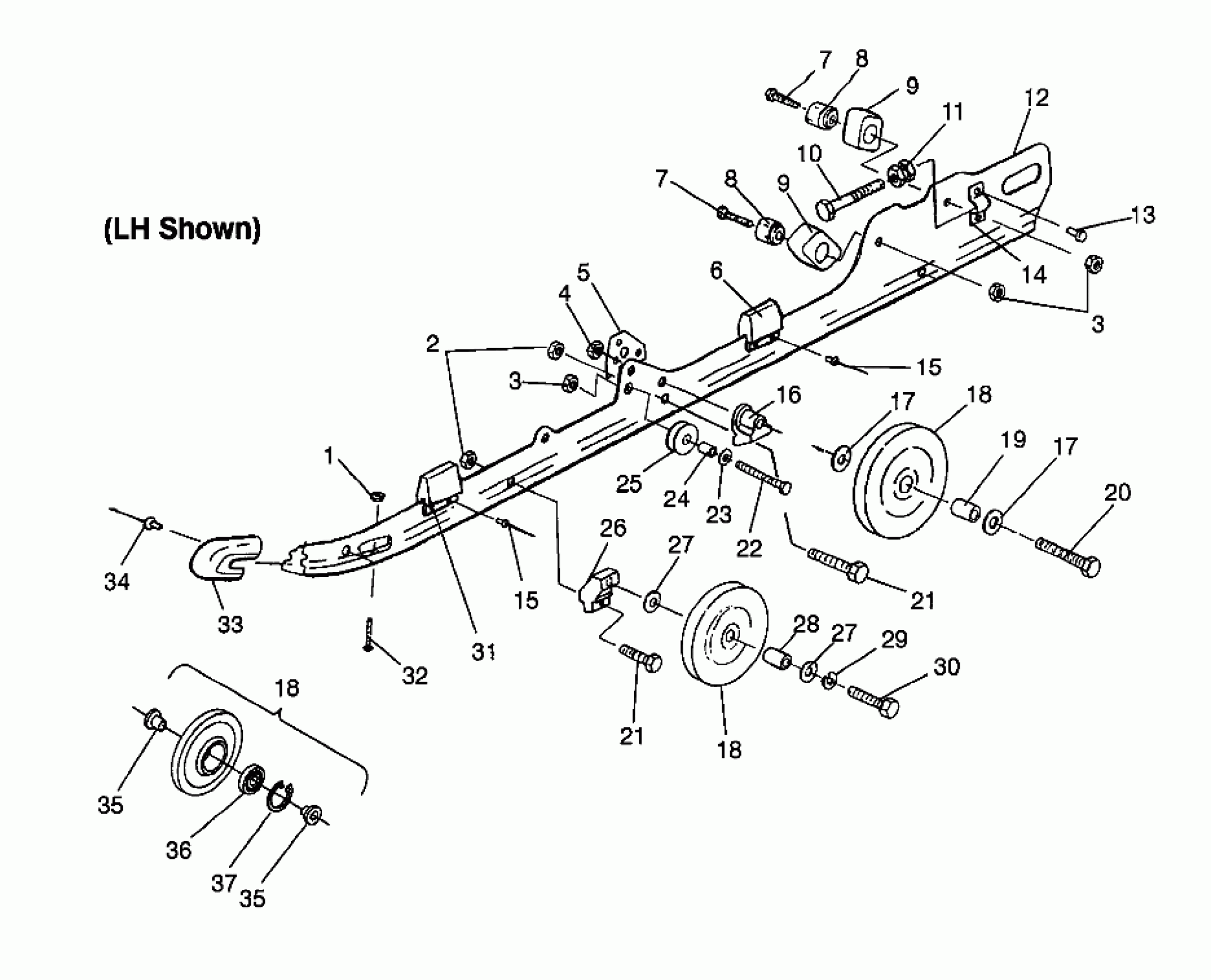

Polaris TRAIL - 0982761 RAIL MOUNTING (SUSPENSION) - 0982761 (4942584258b009) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
NUT-LOCK(10)
7542439
$1.49
3
NUT LOCK(10)
7542411
$3.19
3
NUT LOCK(10)
7542411
$3.19
4
NUT, NYLOCK(10)
7542525
$4.79
5
BRKT,RAIL,REINF
5211790
Unavailable
6
REINF., BUMPER
5222629
$13.75
6
BUMPER,SUSPENSION
5811097
Unavailable
7
BOLT,(10)
7515545
$5.59
7
BOLT,(10)
7515545
$5.59
8
BUSHING
5431113
$16.47
8
BUSHING
5431113
$16.47
9
BUMPER,F.PIVOT ARM
5410925
$12.94
9
BUMPER,F.PIVOT ARM
5410925
$12.94
10
BOLT, ADJUSTER(10)
7515455
$29.99
11
NUT,TENSIONER ADJ.
5020943
$20.22
12
RAIL,LH,121,XTRA 10 (Incl. 6,9,31,33)
1541146
$288.99
12
RAIL,RH,121,XTRA 10 (Incl. 6,9,31,33)
1541147
Unavailable
13
RIVET,(50)
7621501
$2.39
14
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
15
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
15
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
16
SPACER
5630399
$11.99
17
WASHER, FLAT(10)
7555852
$2.39
17
WASHER, FLAT(10)
7555852
$2.39
18
WHEEL, IDLER (Incl. 35-37)
1543018
$56.65
18
WHEEL, IDLER (Incl. 35-37)
1543018
$56.65
18
WHEEL, IDLER (Incl. 35-37)
1543018
$56.65
19
SPACER, WHEEL
5333116
$7.99
20
BOLT(10)
7512578
Unavailable
21
BOLT(10)
7512404
$3.99
21
BOLT(10)
7512404
$3.99
22
BOLT Substituted by 7515491
7515433
$1.59
23
WASHER(10)
7555743
Unavailable
24
Spacer
5332787
Unavailable
25
ROLLER,SPRING
5432170
Unavailable
26
BRACKET,BOGIE WHEEL
5130570
$48.56
27
WASHER(10)
7555801
$3.99
27
WASHER(10)
7555801
$3.99
28
SPACER
5332786
$7.99
29
LOCK WASHER(10)
7553201
$3.99
30
BOLT(10)
7512659
$7.99
31
REINF., BUMPER
5222629
$13.75
31
BUMPER, RAIL
5810554
$7.27
32
BOLT(10)
7515175
$3.99
33
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
34
RIVET(50)
7621435
$1.49
35
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
35
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
36
BEARING (1 per Wheel)
3514303
$11.99
37
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
