OIL TANK / AIR BOX - 0982761 (4942584258c003)

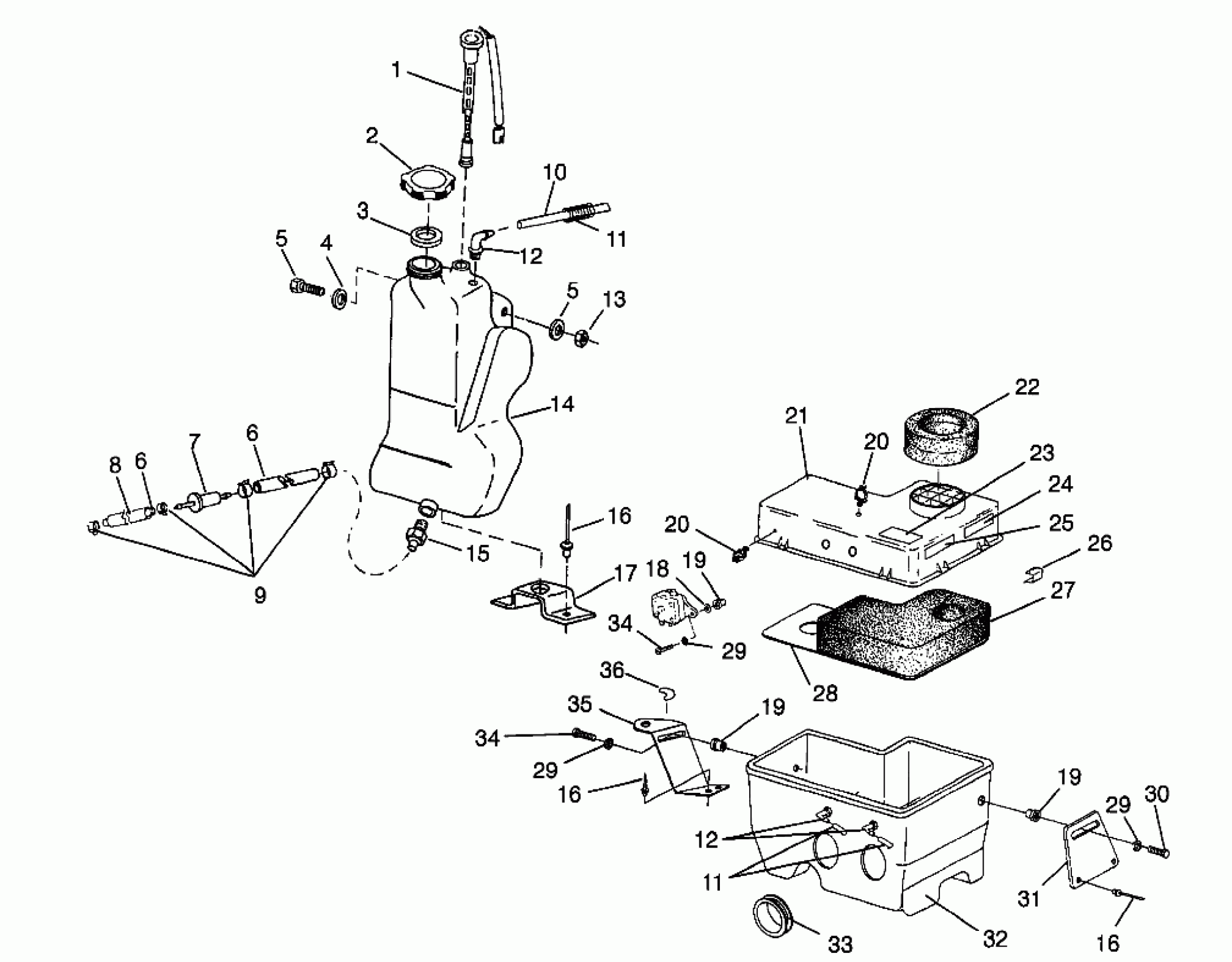

Polaris TRAIL - 0982761 OIL TANK / AIR BOX - 0982761 (4942584258c003) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512240
$3.99
5
BOLT(10)
7512240
$3.99
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
9
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
10
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
11
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
11
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
12
FITTING,90 DEG,1/8,(10)
7052095
$4.79
12
FITTING,90 DEG,1/8,(10)
7052095
$4.79
13
NUT-LOCK(10)
7542122
$1.49
14
Tank, Oil
5431437
Unavailable
15
FITTING, OUTLET
7052042
$8.99
16
RIVET-3/16-.090-.290
7661637
$1.49
16
RIVET-3/16-.090-.290
7661637
$1.49
16
RIVET-3/16-.090-.290
7661637
$1.49
17
BRKT,OILTANK,COINED
5241334
$9.70
18
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
20
CLAMP,WIRE ROUTING(10)
7080409
$2.39
20
CLAMP,WIRE ROUTING(10)
7080409
$2.39
21
COVER,AIR SILENCER
5432748
Unavailable
22
DUCT ASM,AIR
2620057
$40.46
23
DECAL,CAUTION,AIRBOX
7075351
Unavailable
24
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
25
DECAL, GREASING [No Longer Available]
7073426
$7.27
26
CLIP, AIR BOX,(10)
7670055
$7.99
27
BAFFLE ASM.
1253116
$59.99
28
PLATE,AIR SILENCER
5850075
$24.27
29
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
29
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
29
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
30
SCREW(10)
7512279
$1.49
31
BRACKET, SILENCER
5211274
$9.70
32
SILENCER,INTAKE,DRILLED
5432133
Unavailable
33
BOOT
5410403
$12.99
34
SCREW(10)
7512222
$2.39
34
SCREW(10)
7512222
$2.39
35
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
36
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
