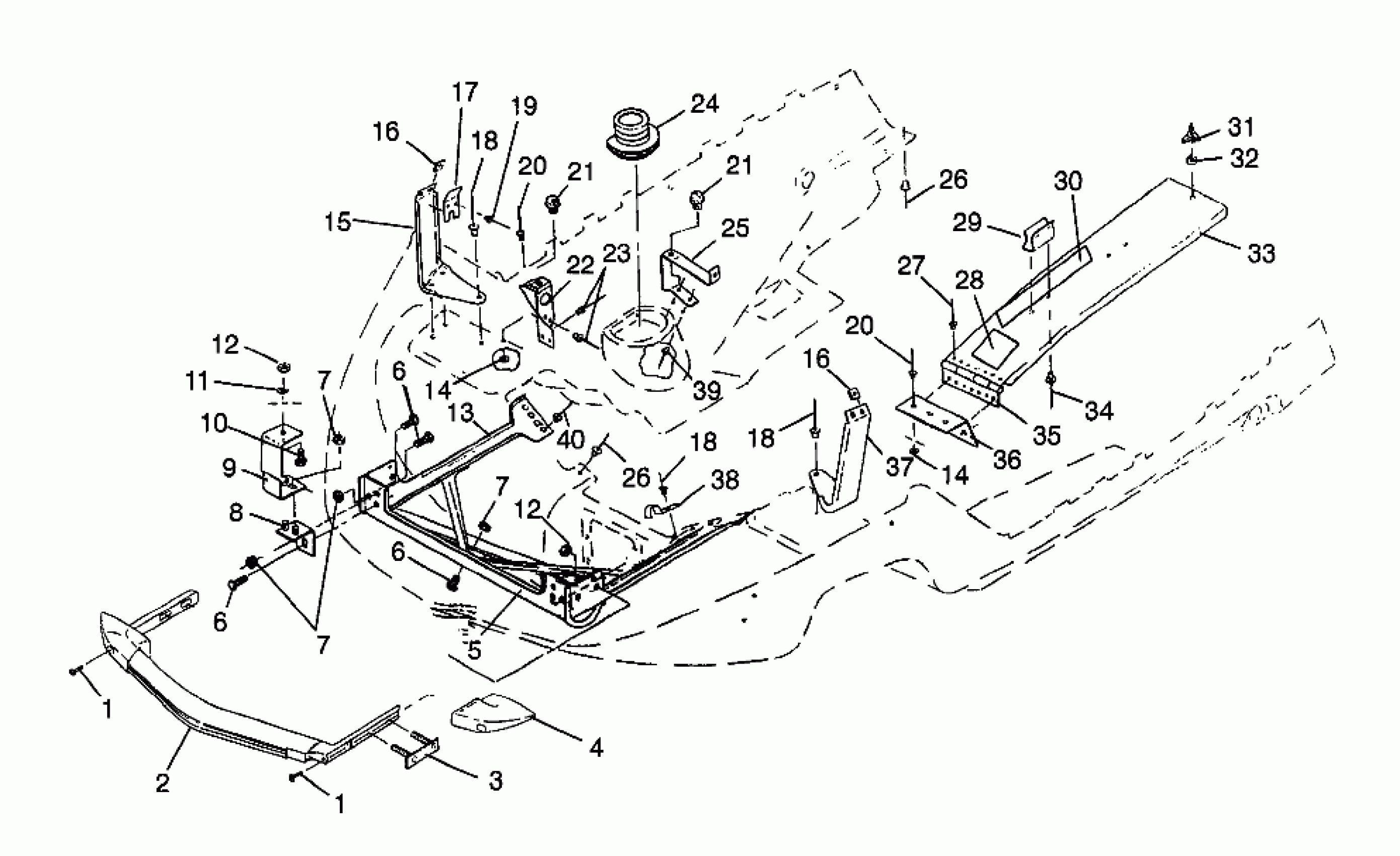

Polaris TRAIL - 0982761 NOSEPAN TRAIL 0982761 (4942584258A010) Diagram
#
1
SCREW,(10)
7512024
$4.79
1
SCREW,(10)
7512024
$4.79
2
BUMPER ASM,FR,EV,BLK MET Substituted by 2670184-067
2670184-177
Unavailable
3
STUDPLATE ASM,BUMP.SUPP.
1012648
Unavailable
4
CAP,BUMPER,BLK.MET.
5432429-177
Unavailable
5
BRACE,HD.SUPPORT,BLK.
5241003-067
$49.21
6
BOLT,(10)
7515203
$3.99
6
BOLT,(10)
7515203
$3.99
6
BOLT,(10)
7515203
$3.99
7
NUT(10)
7542153
$1.59
7
NUT(10)
7542153
$1.59
7
NUT(10)
7542153
$1.59
8
MOUNT,HINGE,BLK.
1011982-067
$45.99
9
HINGE ASM,HOOD,BLK.
2635013-067
Unavailable
10
SCREW(10)
7512310
$2.39
11
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
12
NUT FLEX-LOC(10)
7542303
$6.39
12
NUT FLEX-LOC(10)
7542303
$6.39
13
SUPPORT,LH,BUMPER
1012327-067
$63.49
13
SUPPORT,RH,BUMPER
1012328-067
$133.29
14
BURR,RIVET(50)
7555904
$1.49
14
BURR,RIVET(50)
7555904
$1.49
15
TAPE,FOIL,215 CM.(85 IN.)
8360043-215
Unavailable
15
BRKT,RH,SIDEPANEL
5240995
Unavailable
16
NUT, RETAINER(10)
7542146
Unavailable
16
NUT, RETAINER(10)
7542146
Unavailable
17
SHIELD,FASTENER
5240769
$0.90
18
RIVET(50)
7621485
$1.49
18
RIVET(50)
7621485
$1.49
18
RIVET(50)
7621485
$1.49
19
RIVET(50)
7621318
$1.49
20
RIVET(50)
7621433
$1.49
20
RIVET(50)
7621433
$1.49
21
DAMPNER, VIB.
5410467
$8.79
21
DAMPNER, VIB.
5410467
$8.79
22
SUPPORT,MUFFLER,BLK.
1260724-067
$92.99
23
RIVET-3/16-.090-.290
7661637
$1.49
24
Boot, Exhaust
5410502
$24.27
25
BRKT,R.MUFFLER SUPPORT
5240715-067
Unavailable
26
RIVET, BLIND(50)
7621467
$1.49
26
RIVET, BLIND(50)
7621467
$1.49
27
RIVET, POP(50)
7621330
$1.49
28
DECAL,TRBLSHOOT,X-10(EV/AG)
7077212
Unavailable
29
CLIP,BELT RETAINER
5222769
$8.79
30
DECAL,ENG&CLUTCH(CPSC)
7075350
Unavailable
31
KNOB,CLUTCH GUARD(10)
7080523
$4.03
32
BUMPER,CLUTCHGUARD
5431928
$2.39
33
GUARD,CLUTCH
5240999
Unavailable
34
RIVET(50)
7621429
$1.49
35
HINGE
5210728
Unavailable
36
MT,FR.CLUTCHGUARD
5222904
Unavailable
37
BRKT,LH,SIDEPANEL
5240994-067
Unavailable
38
CLIP, HALF(10)
7080393
$3.19
39
RIVET(50)
7621472
$1.49
40
RIVET,INTERLOCK,B(50)
7661638
$1.49
