FRONT SUSPENSION and SKI - 0982761 (4942584258b001)

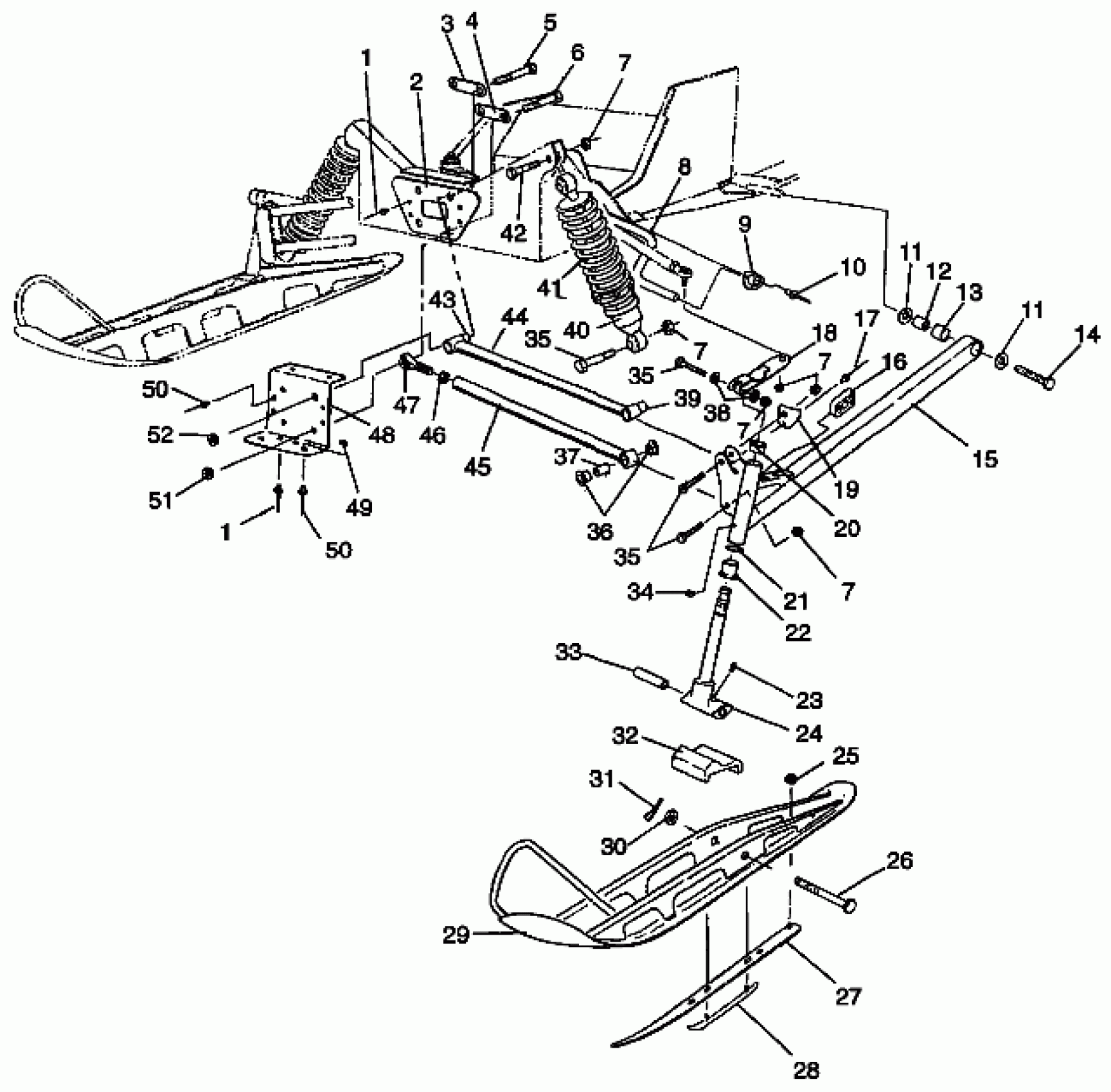

Polaris TRAIL - 0982761 FRONT SUSPENSION and SKI - 0982761 (4942584258b001) Diagram
#
1
RIVET-3/16-.090-.290
7661637
$1.49
1
RIVET-3/16-.090-.290
7661637
$1.49
2
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
3
STRAP,SPACER TOP
5211344
$7.27
4
STRAP,SPACER BOTTOM
5211345
$12.99
5
BOLT(10)
7512582
$8.79
6
BOLT(10)
7512684
Unavailable
7
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
7
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
7
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
7
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
7
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
8
BAR,SWAY,9/16,X-10,BLK
5224743-067
$70.39
9
BUSHING,SWAY BAR
5432412
$15.99
10
RIVET(50)
7621433
$1.49
11
WASHER(10)
7555721
$1.49
11
WASHER(10)
7555721
$1.49
12
TUBE, BUSHING
5010310
$9.70
13
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
14
BOLT(10)
7512557
$7.60
15
ARM,TRLG,LH Substituted by 2201319 (Incl. 12,13)
1822366
$344.99
15
ARM,TRLG,RH Substituted by 2201320 (Incl. 12,13)
1822367
Unavailable
16
SLIDE,SWAYBAR,9/16
5432332
$32.37
17
RIVET,(50)
7621477
$1.19
18
ARM,STRG,BLK
5241560-067
Unavailable
19
STOP,LH,STRG,BLK.
5241569-067
$7.27
19
STOP,RH,STRG,BLK.
5241570-067
$7.27
20
BUSHING-FLANGE
3573909
$2.39
21
WASHER SPECIAL(10)
7556509
$1.59
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
24
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
25
NUT-5/16-18 NYLOK-Y
7542324
$1.49
26
BOLT(10)
7515462
$8.79
27
Plate, Skag
1011829-067
$54.99
28
SKAG, BLK.
1820318-067
$49.99
29
SKI WELD
1820430-067
Unavailable
30
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
31
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
32
Stop, Rubber
5411083
$12.94
33
BUSHING,PIVOT,(10)
5010158
$19.99
34
ZERK,FITTING,THREADED(10)
7080433
$1.49
35
BOLT(10) Substituted by 7517583
7515491
Unavailable
35
BOLT(10) Substituted by 7517583
7515491
Unavailable
35
BOLT(10) Substituted by 7517583
7515491
Unavailable
36
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
37
BUSHING-RADIUS ROD,(10)
5010127
$7.99
38
WASHER(10) Substituted by 7555832
7555851
Unavailable
39
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
40
SHOCK,GAS,IFS,SELECT
7041496
Unavailable
41
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
41
RING,SPRING PRELOAD ADJ.
5431734
$52.60
41
SPRING,COMP,IFS
7041552-067
$44.51
41
DESC NOT_AVAILABLE
5020580
Unavailable
42
BOLT(10) Substituted by 7515415
7515515
Unavailable
43
BUSHING,PIVOT,7/16
5411095
$15.99
44
ROD,RAD.UPPER,FIXED
1822435
$49.21
45
ROD,RAD,LOWER,BLK
1822410-067
Unavailable
46
NUT-JAM(10)
7542711
$2.39
47
ROD END Substituted by 7061027
7060162
$48.56
48
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
49
BURR,RIVET(50)
7555904
$1.49
50
RIVET, BLIND(50)
7621467
$1.49
50
RIVET, BLIND(50)
7621467
$1.49
51
NUT FLEX,(10)
7542703
Unavailable
52
NUT, LOCK,(10)
7542503
$10.39
