Description

Price

1

NUT

3083541

Unavailable

2

WASHER LOCK ,(10)

3080530

$3.19

2

WASHER LOCK ,(10)

3080530

$3.19

3

WASHER(10)

3080142

$3.99

4

NUT-FLANGE(10)

3082910

$2.39

5

HEAD, CYLINDER

3083707

Unavailable

5

HEAD, CYLINDER

3083707

Unavailable

6

GASKET,HEAD,(CP)

3084015

Unavailable

6

GASKET,HEAD,(CP)

3084015

Unavailable

7

Stud

3080283

$12.94

7

Stud

3080283

$12.94

8

NUT(10)

3080285

Unavailable

9

GASKET, EXHAUST

3084026

Unavailable

10

STUD,(10)

3085326

Unavailable

10

STUD,(10)

3085326

Unavailable

11

NUT-FLANGE(10)

3082911

$1.99

12

CYLINDER (Incl. 7,10)

3083695

Unavailable

12

CYLINDER (Incl. 7,10)

3083695

Unavailable

13

GASKET, BASE

3084025

Unavailable

13

GASKET, BASE

3084025

Unavailable

14

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

14

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

15

O-RING Substituted by 3085619

3084272

Unavailable

16

Bolt, Allen

3081330

$3.99

17

ADAPTER,CARB. (Incl. 15)

3085044

Unavailable

18

SCREW,(10)

3081497

$2.39

19

BAND ASM. (Incl. 18)

3083166

$19.84

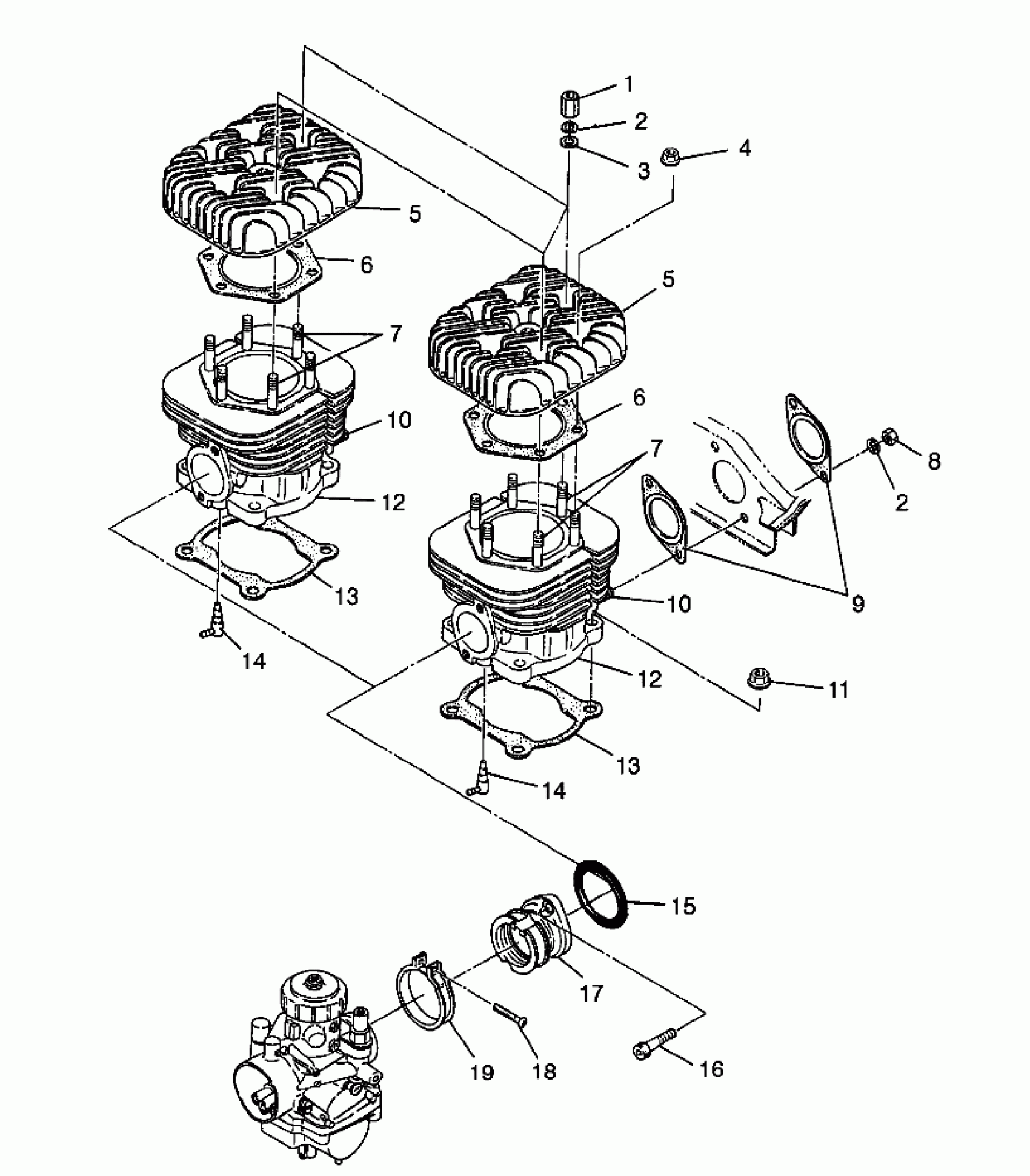

Polaris TRAIL - 0982761 CYLINDER - 0982761 (4942584258c005) Diagram

NUT

WASHER LOCK ,(10)

WASHER LOCK ,(10)

WASHER(10)

NUT-FLANGE(10)

HEAD, CYLINDER

HEAD, CYLINDER

GASKET,HEAD,(CP)

GASKET,HEAD,(CP)

Stud

Stud

NUT(10)

GASKET, EXHAUST

STUD,(10)

STUD,(10)

NUT-FLANGE(10)

CYLINDER (Incl. 7,10)

CYLINDER (Incl. 7,10)

GASKET, BASE

GASKET, BASE

VALVE, CHECK Substituted by 3086785

VALVE, CHECK Substituted by 3086785

O-RING Substituted by 3085619

Bolt, Allen

ADAPTER,CARB. (Incl. 15)

SCREW,(10)

BAND ASM. (Incl. 18)
