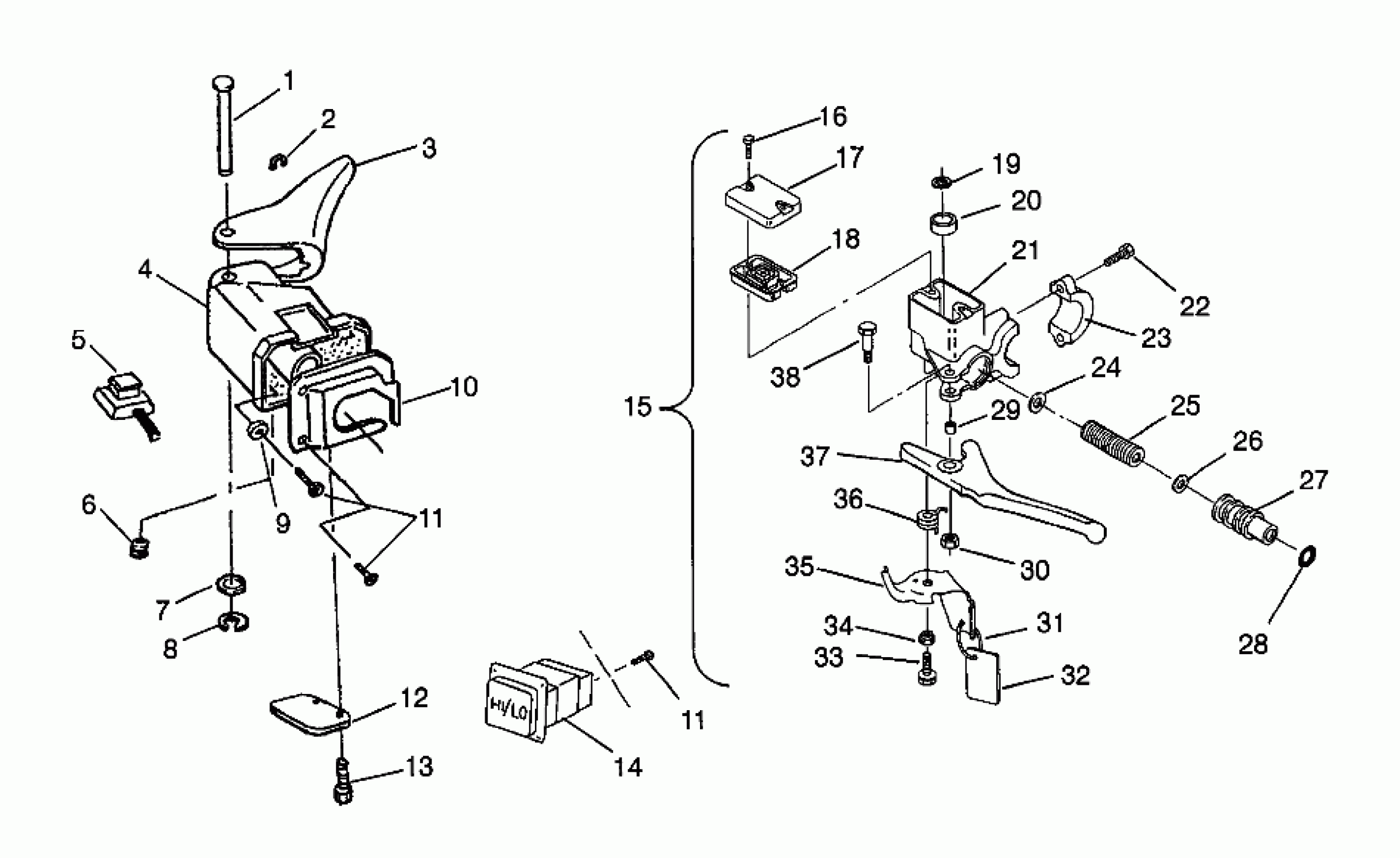

Polaris TRAIL - 0982761 CONTROLS TRAIL 0982761 (4942584258A014) Diagram
#
Description
Price
1
PIN-RETAINING .186X1.780-AL
7661624
$12.79
2
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
3
LEVER,THROTTLE,W/HEATER
2010119
Unavailable
3
LEVER, THROTTLE
5431318-067
Unavailable
4
BLOCK,THROTTLE(EASY) Substituted by 5433343
5431311-067
Unavailable
5
SWITCH, KILL
4110118
Unavailable
6
SCREW(10)
7512465
$3.99
7
WASHER(10)
7555730
$3.99
8
RING-RETAINING EXTERNAL
7710401
$3.99
9
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
10
BLOCK,ADAPTER,BLK.
5431313-067
Unavailable
11
SCREW-SEMS(10)
7511848
$3.99
11
SCREW-SEMS(10)
7511848
$3.99
12
HOLDER-WIRE
5432261
$24.27
13
SCREW(10)
7511858
$3.99
14
SWITCH, DIMMER
4110136
Unavailable
15
MASTER CYL.ASM,3/4" (Incl. 16-18, 19-30, 37-38)
2050070
Unavailable
16
SCREW,W/WASHER(10)
7512050
$3.99
17
COVER,MASTER CYL.
5630338
Unavailable
18
GASKET,MASTER CYL.
5410527
$8.99
19
WASHER, BAFFLE(10)
1930662
Unavailable
20
BAFFLE,MASTER CYL.
1930673
Unavailable
21
HOUSING,MASTERCYL.
5130955
$293.65
22
BOLT,SOCKET HEAD(10)
7512290
$4.79
23
CLAMP, MASTER CYL.
5630342
Unavailable
24
WASHER(10)
7555708
$3.99
25
SPRING, MASTERCYL.
7041311
Unavailable
26
U PACKING SEAL
5410164
Unavailable
27
PISTON,MASTER CYL.
5020679
Unavailable
28
O RING
5410163
$1.60
29
BUSHING,BRAKE LEVER
5332931
Unavailable
30
NUT(10)
7542124
Unavailable
31
STRAP,PARK.BRAKE TAG
7080447
Unavailable
32
TAG,PARK.BRAKE
5431389
Unavailable
33
SCREW(10)
7511866
$4.79
34
BUSHING,PK.BRAKE LEVER
5020670
Unavailable
35
LEVER,PARK.BRAKE
5240809
Unavailable
36
SPRING,PK.BRAKE
7041229
$32.37
37
LEVER, BRAKE
5630409
Unavailable
38
BOLT,BRAKE LEVER(10)
7512287
Unavailable
