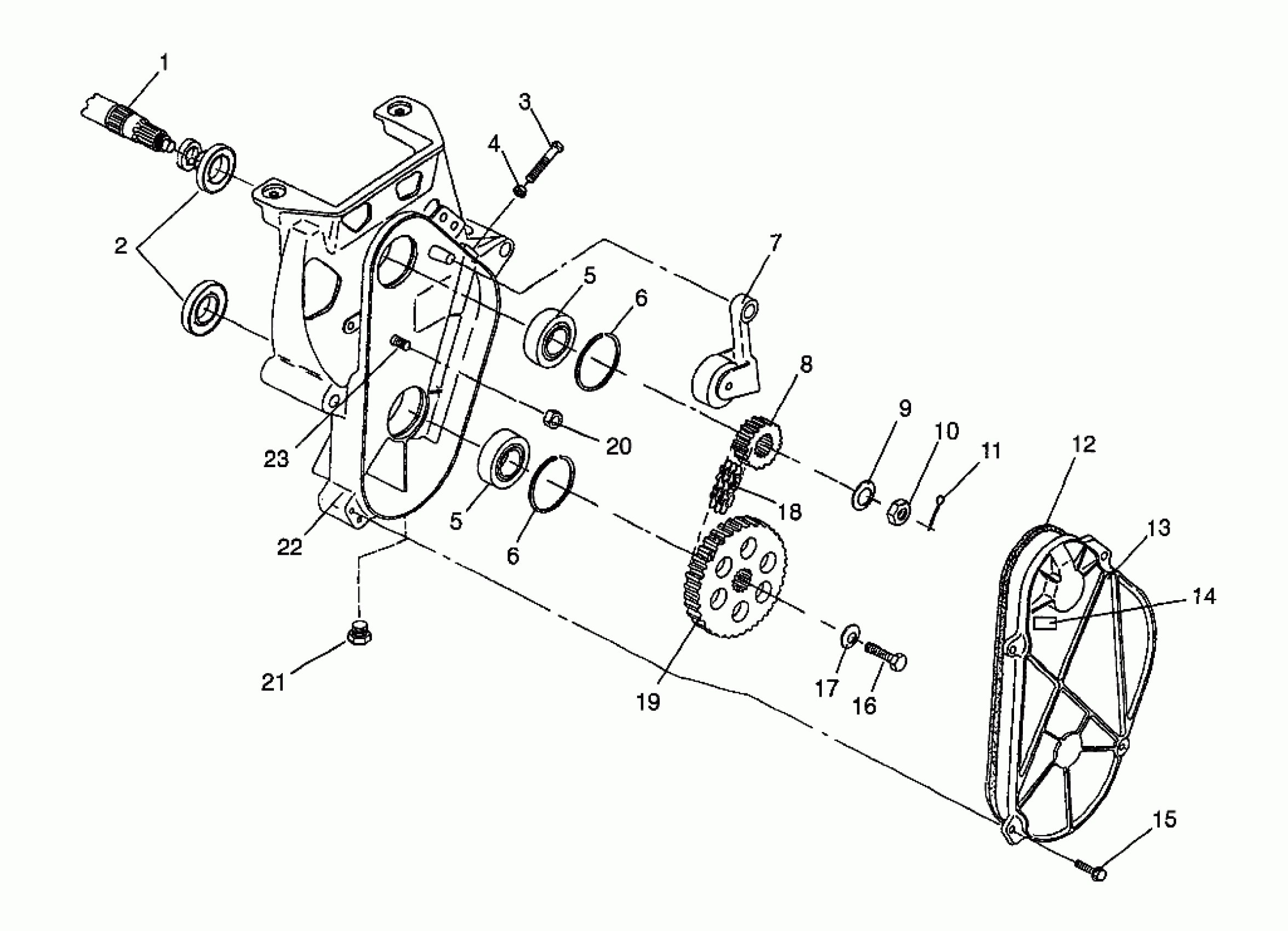

Polaris TRAIL - 0982761 CHAINCASE - 0982761 (4942584258b005) Diagram
#
Description
Price
1
Jackshaft (See Footnote) (See Drive Train Pg. B6, Ref. 16)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515551
$6.39
4
NUT(10)
7542404
$1.59
5
BEARING,BALL
3514309
$15.87
5
BEARING,BALL
3514309
$15.87
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
PIN,CHAIN TIGHTENER
7662210
Unavailable
7
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
7
BEARING
3553002
$11.99
7
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
7
WHEEL,C/C IDLER
5630123
Unavailable
7
WASHER THRUST(10)
7558702
$1.59
8
SPROCKET, 22T
3221089
Unavailable
9
WASHER, SLOTTED(10)
7571620
$7.19
10
NUT
7542811
Unavailable
11
COTTER PIN(10)
7661401
$1.49
12
GASKET-CHAINCASE
5410277
$24.99
13
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
14
DECAL,CAUT.SPKT/CHAIN
7076764
Unavailable
15
SCREW(10)
7512242
$2.39
16
SCREW(10)
7515350
$3.97
17
WASHER(10)
7571618
$6.39
18
CHAIN,68P,3/4W,HYVO Substituted by 3221112
3224070
Unavailable
19
SPKT,41T,3/4W,15T SPL,HYVO Substituted by 2900014
3222095
Unavailable
20
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
21
PLUG(10)
7052115
$5.65
22
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
23
BOLT(10)
7515477
$34.99
