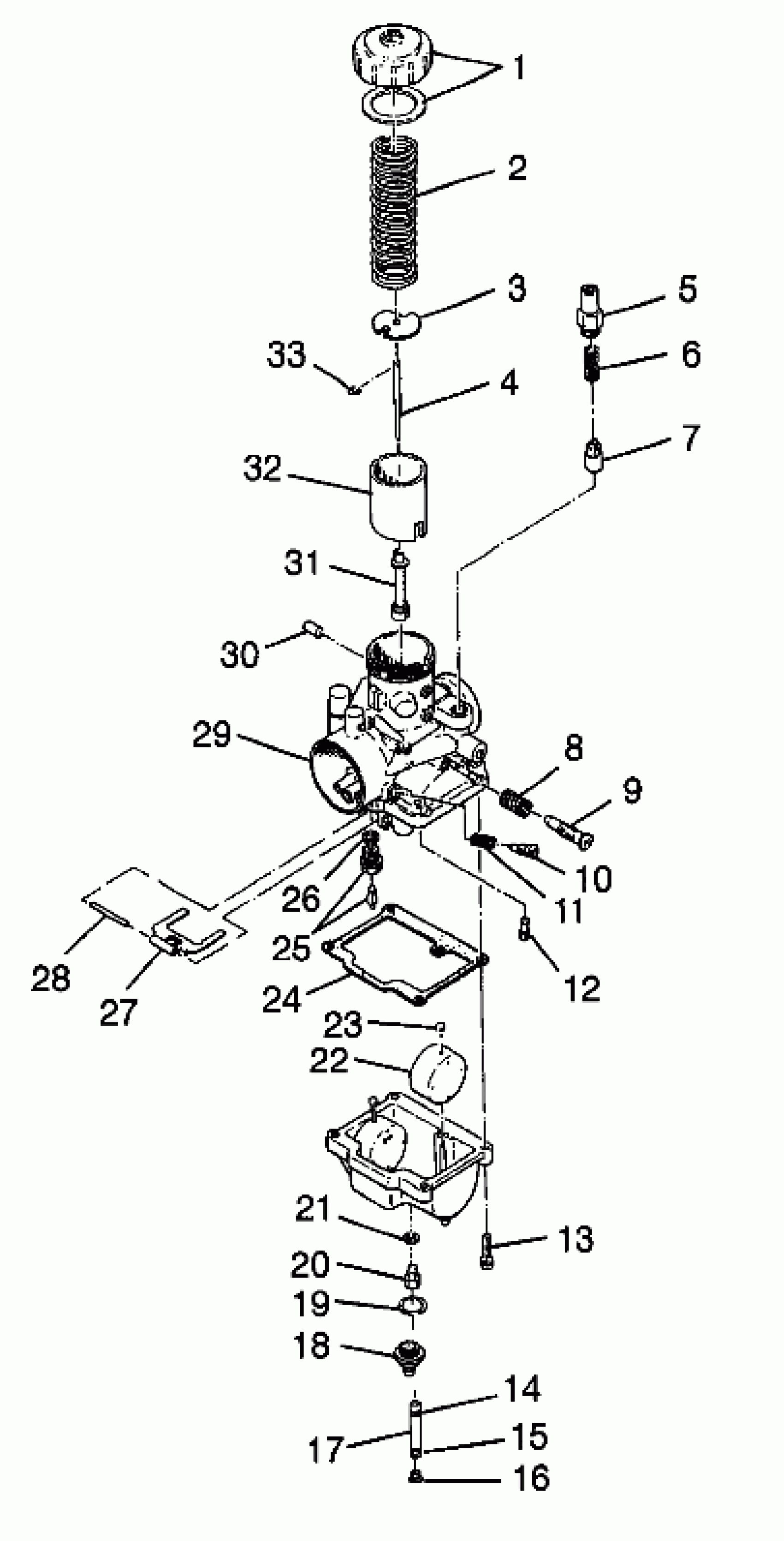

Polaris TRAIL - 0982761 CARBURETOR - 0982761 (4942584258c008) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
JET NEEDLE (6DH7-3)
3130329
Unavailable
5
HOLDER,GUIDE
3130199
$28.32
6
SPRING,PLUNGER
3130006
$8.89
7
PLUNGER ASM, STARTER
3130328
$32.37
8
SPRING,THROTTLE ADJ.
3130010
$8.89
9
SCREW,THROTTLE STOP
3130009
$19.99
10
SCREW,AIR
3130011
$19.99
11
SPRING,AIR ADJUST
3130012
$8.89
12
JET,PILOT,#45(10) (#40)
3130068
$8.89
13
SCREW & WASHER(10)
3130025
$3.19
14
CLAMP,SPRING,(10)
7080534
$1.59
15
CLAMP,HOSE(10)
7080544
Unavailable
16
PLUG,TRAP
5431893
$12.94
17
FUEL LINE, 5 FT.
8450045-153
Unavailable
18
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
19
O RING
3130239
Unavailable
20
JET,MAIN,HX.HD#230(10) (#230)
3130126
$7.27
21
WASHER (10)
3130014
$1.59
22
FLOAT ASM.
3130430
$43.56
23
CAP,(10)
3130237
$4.03
24
PACKING,FLOAT CHAMBER
3130020
$16.17
25
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
26
PACKING(10)
3130017
$4.03
27
ARM,FLOAT
3130018
$24.27
28
PIN, FLOAT
3130361
$8.89
29
CARBURETOR (Incl. 1-13,18-33)
3130689
Unavailable
30
CAP
3130479
$14.56
31
NEEDLE JET (P-8)
3130421
Unavailable
32
VALVE,THROTTLE,(3.0) (2.0)
3130372
$52.60
33
E RING(10) Substituted by 3130508
3130003
Unavailable
