SUSPENSION TRAIL TOURING 0972262 and EUROPEAN TRAIL TOURING E972262 (4938313831C003)

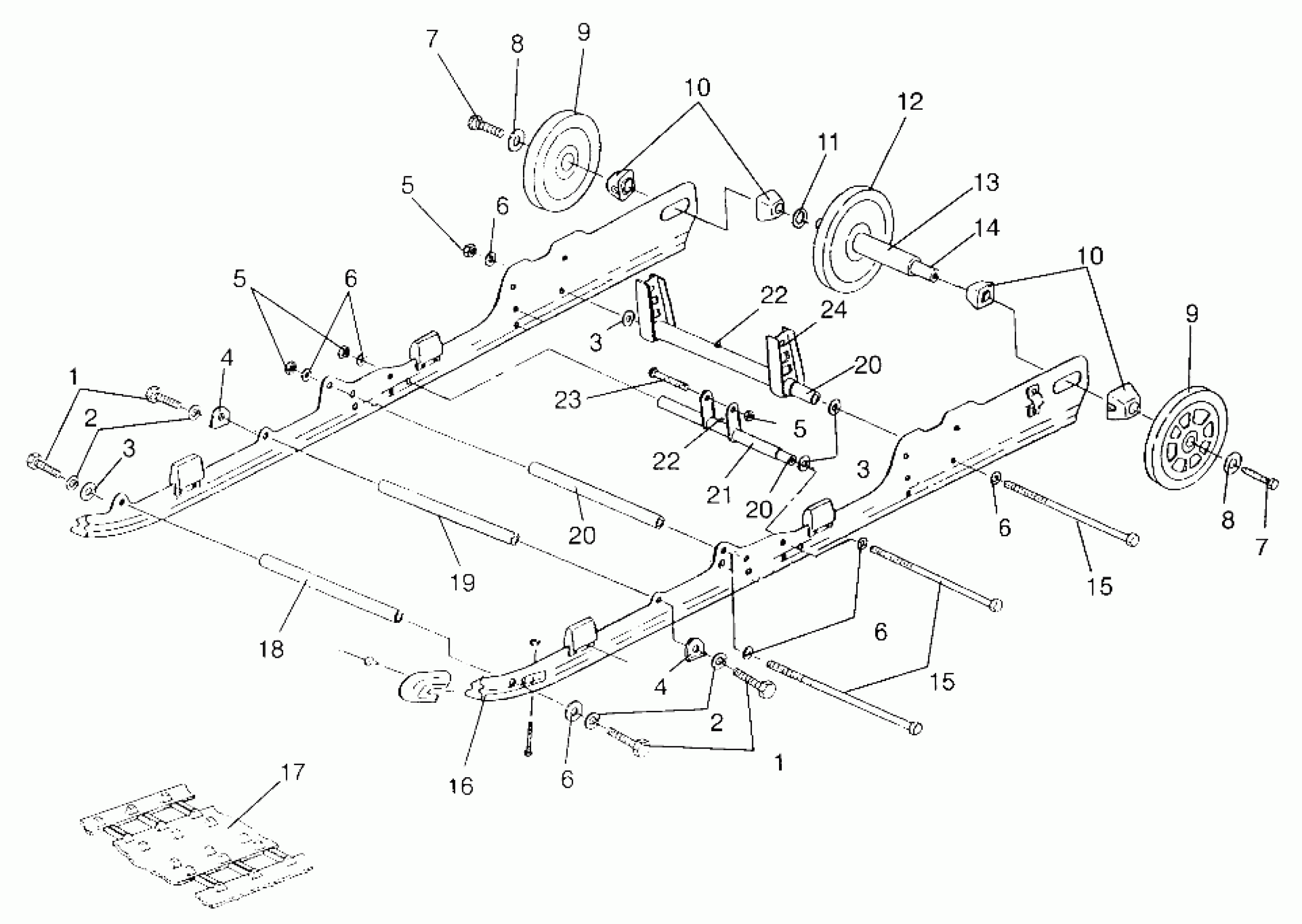

Polaris TRAIL - 0972761 SUSPENSION TRAIL TOURING 0972262 and EUROPEAN TRAIL TOURING E972262 (4938313831C003) Diagram
#
1
SCREW,(10)
7517247
$3.19
1
SCREW,(10)
7517247
$3.19
2
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
2
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
3
WASHER(10)
7555893
$1.49
3
WASHER(10)
7555893
$1.49
3
WASHER(10)
7555893
$1.49
4
BRKT-SHAFT SUPPORT
5241443
Unavailable
4
BRKT-SHAFT SUPPORT
5241443
Unavailable
5
NUT LOCK(10)
7542411
$3.19
5
NUT LOCK(10)
7542411
$3.19
5
NUT LOCK(10)
7542411
$3.19
6
WASHER(10) Substituted by 7555806
7555720
$0.79
6
WASHER(10) Substituted by 7555806
7555720
$0.79
6
WASHER(10) Substituted by 7555806
7555720
$0.79
6
WASHER(10) Substituted by 7555806
7555720
$0.79
6
WASHER(10) Substituted by 7555806
7555720
$0.79
7
BOLT(10)
7515526
$1.19
7
BOLT(10)
7515526
$1.19
8
WASHER(10) Substituted by 7556130
7571629
Unavailable
8
WASHER(10) Substituted by 7556130
7571629
Unavailable
9
WHEEL,IDLER,20 MM,TEAL (Teal)
1594056-176
$48.56
9
WHEEL,IDLER,20 MM,TEAL (Teal)
1594056-176
$48.56
10
SPACER-IDLER
5432535
$11.99
10
SPACER-IDLER
5432535
$11.99
11
BUSHING(10)
7555918
$1.59
12
WHEEL,IDLER,BLK(20MM)
1594056-070
$48.56
13
SPACER-IDLER, LONG
5333285
$11.99
14
SHAFT,IDLER
5020744
$59.99
15
SCREW Substituted by 7517353
7515549
Unavailable
15
SCREW Substituted by 7517353
7515549
Unavailable
16
SLIDER,BLACK(2)
5521320
Unavailable
17
TRACK,133"X1",MOD(LIGHTNING) (EURO)
5411060
Unavailable
17
Clip, Slide
5241473
Unavailable
17
Clip, Guide
5241474
Unavailable
17
TRACK,133X.82,MOD LTNG,HS Substituted by 5411687
5411176
Unavailable
18
SHAFT,PIVOT ARM
5020723
$29.99
19
SHAFT,PIVOT ARM
5020724
$29.99
20
SHAFT
5333404
$24.27
20
SHAFT
5333404
$24.27
20
SHAFT
5333404
$24.27
21
ARM,SHOCK PIVOT
1541001-067
$43.65
22
ZERK,FITTING,THREADED(10)
7080433
$1.49
22
ZERK,FITTING,THREADED(10)
7080433
$1.49
23
BOLT(10)
7515472
$2.39
24
ARM,R.PIVOT
1540981-067
Unavailable
