SEAT and GAS TANK TRAIL 0972761, EUROPEAN TRAIL E972761, TRAIL TOURING 097 (4938313831A010)

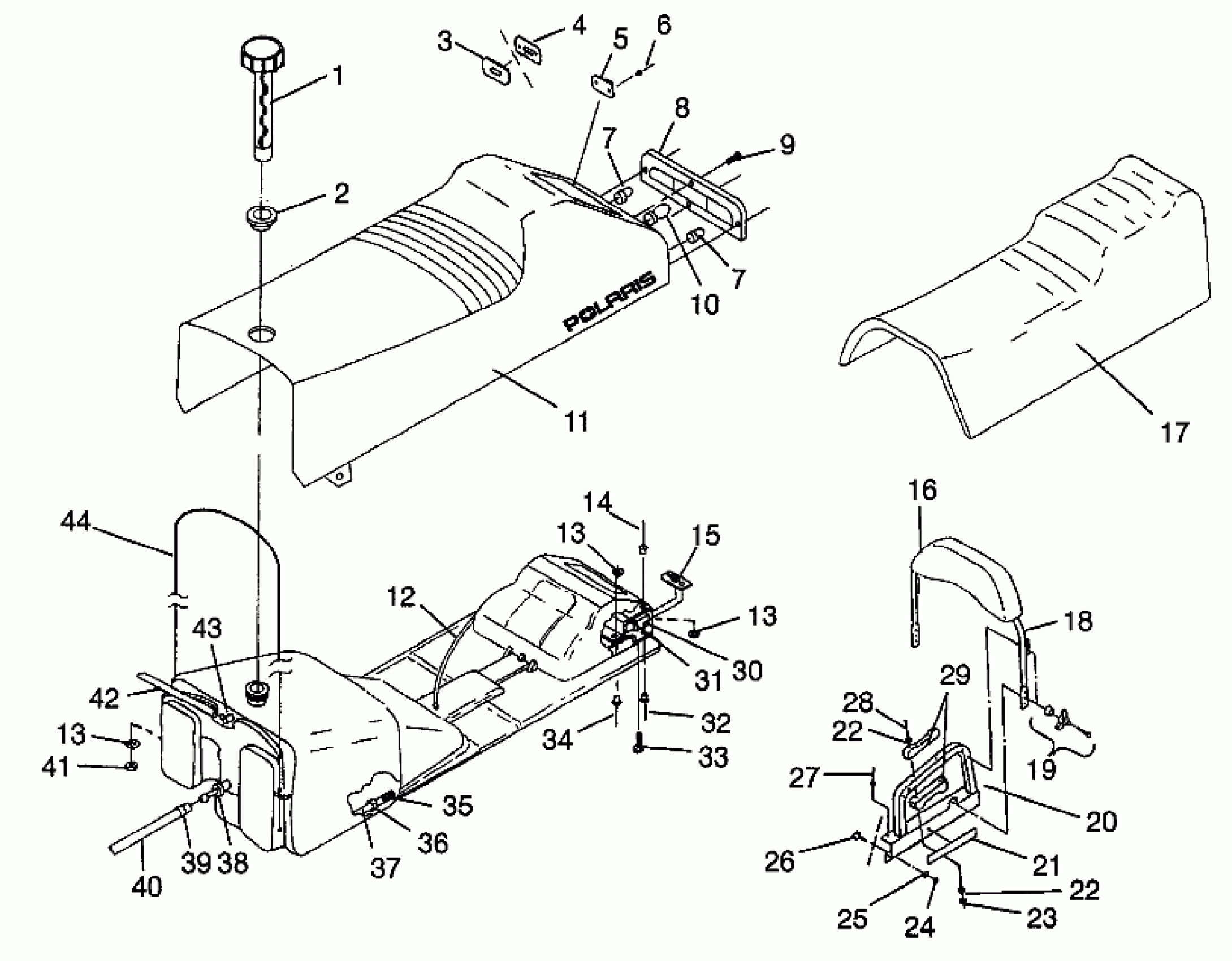

Polaris TRAIL - 0972761 SEAT and GAS TANK TRAIL 0972761, EUROPEAN TRAIL E972761, TRAIL TOURING 097 (4938313831A010) Diagram
#
1
GASKET, GAS CAP
5810513
$8.89
1
CAP,GAS,W/GAUGE
2511248
$44.51
2
GROMMET,FUELTANK
5410815
Unavailable
3
GROMMET,RELATCH,1",BOTT.(10) (Trail)
7080550
Unavailable
4
GROMMET,RELATCH,1",TOP(10) (Trail)
7080549
Unavailable
5
TWISTLOCK,RELATCH,1",W/HOLE(10) (Trail)
7080548
Unavailable
6
RIVET(50) (Trail)
7621337
$1.49
7
BULB,TAILLIGHT(10)
4030024
$4.84
7
BULB,TAILLIGHT(10)
4030024
$4.84
8
LENS,TAILLIGHT
5430423
Unavailable
9
SCREW(10)
7511840
Unavailable
10
Bulb, Brakelight
4030045
Unavailable
11
COVER,SEAT,LONG (Trail)
2682104
Unavailable
11
COVER,SEAT,2-UP (Tour)
2682105
Unavailable
12
HARNESS,TAILLIGHT
2460398
Unavailable
13
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
13
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
13
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
14
RIVET, BLIND(50)
7621467
$1.49
15
NUT,RETAINER-WELD.(10)
7542147
$17.59
16
COVER ASM,BACKREST (Tour)
2682125
Unavailable
17
CUSHION,SEAT,LONG (Trail) (Incl. 3-6, 7-15, 35-38, 43, 44)
2681978
Unavailable
17
CUSHION,SEAT,2-UP (Tour) (Incl. 3-6, 7-15, 35-38, 43, 44)
2681979
Unavailable
18
BACKREST ASM. (Tour) (Incl. 16)
2682124
$216.17
19
KNOB ASM,BACKREST (Tour)
2670130
Unavailable
20
BAR,GRAB,LH,BLK. (Tour)
1011729-067
Unavailable
20
BAR,GRAB,RH,BLK. (Tour)
1011730-067
Unavailable
21
REFLECTOR RED (Tour)
2670070
$9.91
22
WASHER(10) (Tour)
7555783
$3.99
22
WASHER(10) (Tour)
7555783
$3.99
23
NUT, LOCK(10) Substituted by 7541925 (Tour)
7541929
Unavailable
24
NUT, NYLOK(10) (Tour)
7542327
$4.79
25
WASHER(10) Substituted by 7558402 (Tour)
7555770
Unavailable
26
BOLT(10) Substituted by 7512325 (Tour)
7515363
Unavailable
27
RIVET,INTERLOCK,B(50) (Tour)
7661638
$1.49
28
SCREW(10) (Tour)
7510504
$6.76
29
GRIP, HAND Substituted by 5433383 (Tour)
5431015
$19.68
30
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
31
COVER,T/L PROTECTOR
5431436
$21.43
32
RIVET(50)
7621301
$3.99
33
SCREW(10)
7512242
$2.39
34
RIVET(50)
7621464
$3.99
35
FUELPICKUP,W/STRAINER
7052037
$12.94
36
RING, COMPRESSION(10)
7080402
$1.60
37
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
39
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
39
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
40
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
41
NUT(10)
7541925
$1.49
42
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
43
FITTING,90 DEG,1/8,(10)
7052095
$4.79
44
CABLE,TANK,RETENTION
7080559
Unavailable
