TUNNEL ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUROPEAN TRAIL (4928862886A006)

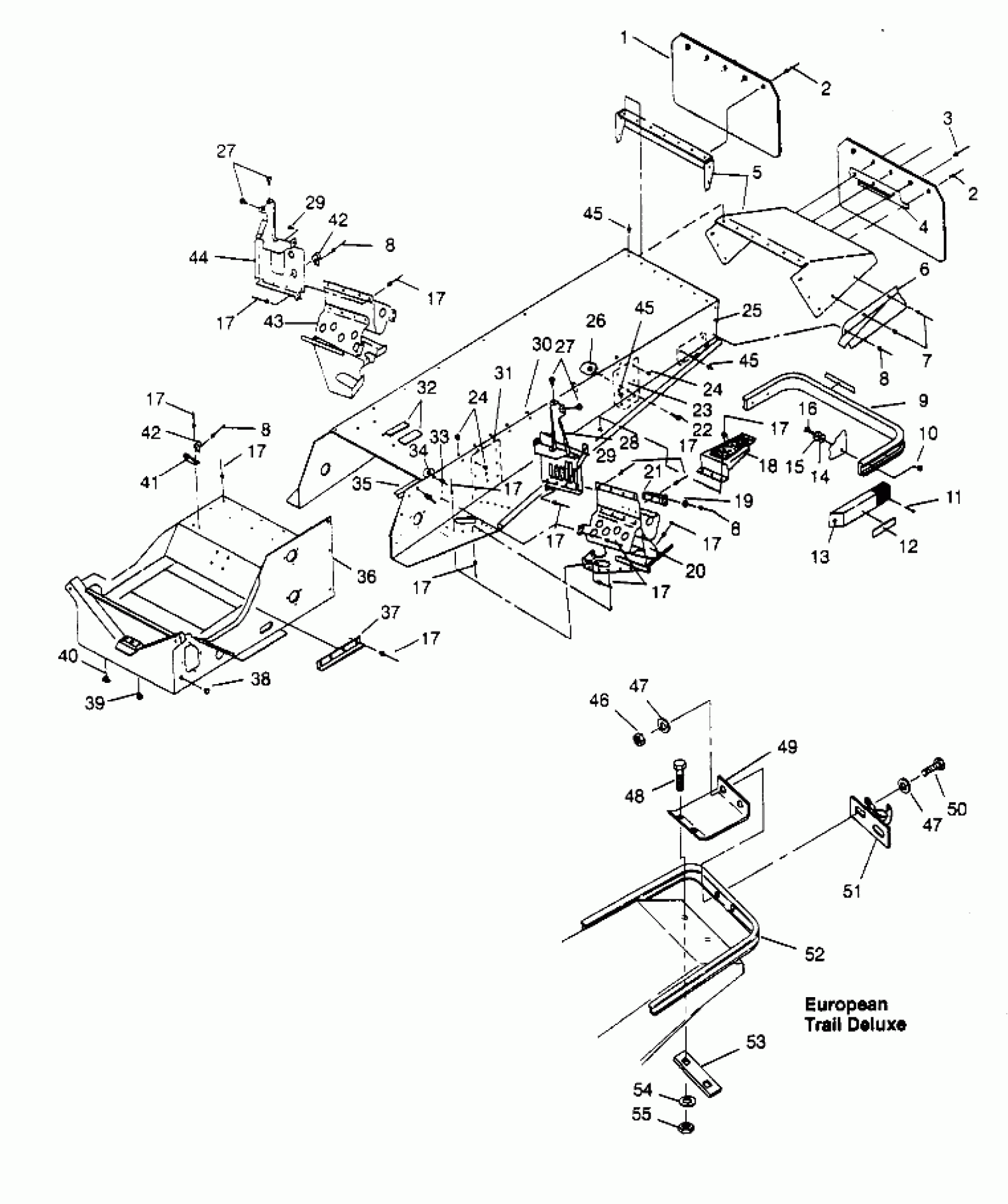

Polaris TRAIL - 0952761 TUNNEL ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUROPEAN TRAIL (4928862886A006) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
2
POP RIVET(50) (Trail)
7621418
$1.49
2
POP RIVET(50) (Trail)
7621418
$1.49
3
RIVET(50) (Deluxe)
7661641
Unavailable
4
RETAINER, FLAP Substituted by 5241874-067 (Deluxe)
5222659-067
Unavailable
5
PANEL,TUNNEL-BACK,BLK. (Trail)
5240599-067
Unavailable
5
CLOSEOFF ASM,REAR (Deluxe) (Incl. Rivets)
1012089
$26.39
6
SKIRT,LH,SNO,TEAL (Deluxe)
5431627-176
Unavailable
6
SKIRT,RH,SNO,TEAL (Deluxe)
5431645-176
Unavailable
7
RIVET(50) (Deluxe)
7621472
$1.49
8
RIVET,3/16X.402(50) (Deluxe)
7621432
$1.49
8
RIVET,3/16X.402(50) (Deluxe)
7621432
$1.49
8
RIVET,3/16X.402(50) (Deluxe)
7621432
$1.49
8
RIVET,3/16X.402(50) (Deluxe)
7621432
$1.49
9
BUMPER,REAR,BLK. (Trail)
5224334-067
Unavailable
9
BUMPER ASM, REAR (Deluxe)
2670122
Unavailable
9
Asm., Rear Bumper (Euro) (See Ref. 52)
-------
Unavailable
10
RIVNUT(10)
7542130
$6.23
11
SCREW(10)
7511863
$1.99
12
REFLECTOR RED
2670070
$9.91
13
CAP, BUMPER, BLK.
5430930-070
Unavailable
14
WASHER(10)
7558301
$1.49
15
LOCK WASHER(10)
7552801
$1.59
16
BOLT(10)
7512240
$3.99
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
17
RIVET-3/16-.090-.290
7661637
$1.49
18
FOOTREST,LH REAR (Deluxe)
5220893
Unavailable
18
FOOTREST,RH REAR (Deluxe)
5220894
$32.15
18
PAD,LH FOOT SAFETY (Deluxe)
5830007
$7.89
18
PAD,RH FOOT SAFETY (Deluxe)
5830008
$4.92
19
STOP, BUMPER
5410826
Unavailable
20
FOOTREST ASM,LH
1011954
Unavailable
21
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
22
BOLT(10) Substituted by 7515494 (Deluxe)
7515482
Unavailable
23
BRKT,RH.REAR SUSP. (Del.)
1011906-067
Unavailable
23
BRKT,LH.REAR SUSP (Del.)
1011905-067
Unavailable
23
BRKT,RH,R.SUSP. (Trail)
1011858-067
Unavailable
23
BRKT,LH,R.SUSP (Trail)
1011857-067
Unavailable
24
RIVET ,(50)
7661837
$1.49
24
RIVET ,(50)
7661837
$1.49
25
TUNNEL ASM,'SKS'EVOL. (Del.)
1012083
$366.65
25
TUNNEL ASM. (Trail)
1012090
$366.65
26
NUT(10) (Deluxe)
7542423
$3.99
27
BUMPER,HOOD
5410768
$2.95
27
BUMPER,HOOD
5410768
$2.95
28
MT,CONSOLE,LH
1011951-067
$35.51
29
SCREW(10)
7512057
$2.38
29
SCREW(10)
7512057
$2.38
30
NUT,SERT(10)
7541938
Unavailable
31
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
32
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
33
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
34
SNAP-MALE(10)
7080227
Unavailable
35
BRACE,REINF.TUNNEL
5240242
Unavailable
36
BULKHEAD,BLK.
1012084-067
$396.83
37
GUARD,ADAPTER GUIDE
5222857
$12.94
38
PLUG, HOLE(10)
7080416
$5.65
39
PLUG-HOLE (Trail)
7080398
$4.84
40
BUSHING,OPEN/CLOSE(10) (Deluxe)
7080399
$2.39
41
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
42
GUIDE, RECOIL
5431385
$10.51
42
GUIDE, RECOIL
5431385
$10.51
43
FOOTREST ASM,RH
1011955
$126.41
44
MT,CONSOLE,RH
1011952-067
$339.99
45
RIVET ,(50)
7661836
$0.63
45
RIVET ,(50)
7661836
$0.63
45
RIVET ,(50)
7661836
$0.63
46
NUT-HEX-3/8-16 A ZTB NYL (Euro)
7542451
$1.49
47
WASHER(10) (Euro)
7555806
$1.49
47
WASHER(10) (Euro)
7555806
$1.49
48
BOLT(10) (Euro)
7512377
$4.79
49
BRKT, HITCH (Euro)
5222605-067
$11.51
50
BOLT(10) (Euro)
7515521
$3.99
51
Asm., Hitch (Euro)
-------
Unavailable
52
DESC NOT_AVAILABLE (Euro)
2670123
Unavailable
53
PLATE, BACKING (Euro)
5211122-067
Unavailable
54
WASHER-.344X.688X.063 FL-Y (Euro)
7558402
$1.49
55
NUT-5/16-18 NYLOK-Y (Euro)
7542324
$1.49
