STEERING ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUROPEAN TRAI (4928862886B008)

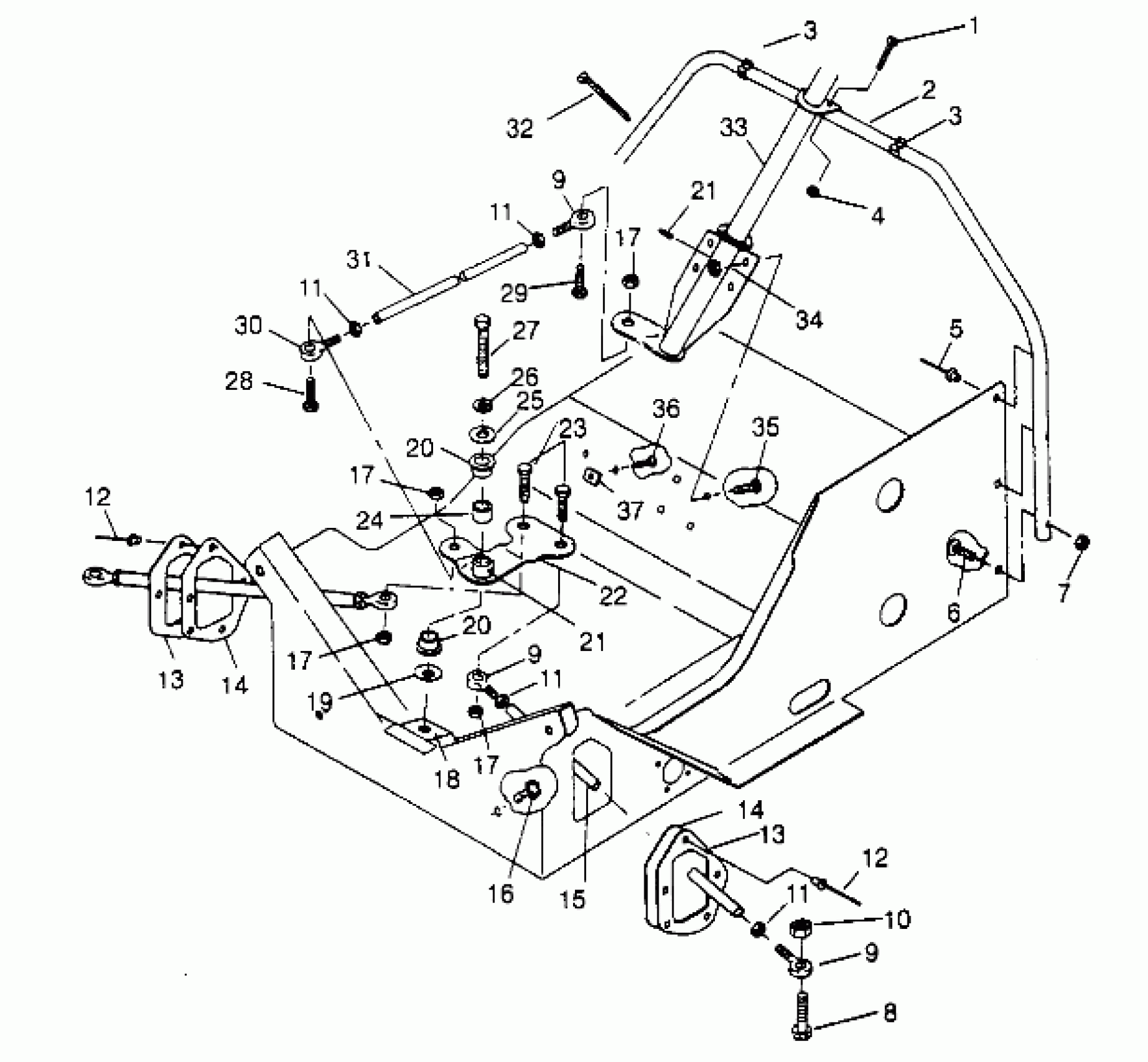

Polaris TRAIL - 0952761 STEERING ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUROPEAN TRAI (4928862886B008) Diagram
#
1
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
2
HOOP,STRG,F/C,BLK.
1012272-067
Unavailable
3
CLIP(10)
7080278
$2.63
3
CLIP(10)
7080278
$2.63
4
NUT(10)
7542124
Unavailable
5
RIVET-3/16-.090-.290
7661637
$1.49
6
BOLT-CARRIAGE(10)
7512275
$3.99
7
NUT, LOCK(10)
7542103
$5.59
8
BOLT(10) Substituted by 7515528
7515529
Unavailable
9
ROD END, LH Substituted by 7060166
7060151
$48.56
9
ROD END, RH Substituted by 7060167
7060152
$48.56
9
ROD END, LH Substituted by 7060166
7060151
$48.56
9
ROD END, RH Substituted by 7060167
7060152
$48.56
9
ROD END, LH Substituted by 7060166
7060151
$48.56
9
ROD END, RH Substituted by 7060167
7060152
$48.56
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
12
POP RIVET(50)
7621323
$1.49
12
POP RIVET(50)
7621323
$1.49
13
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
13
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
14
BOOT,TIEROD
5410761
$12.94
14
BOOT,TIEROD
5410761
$12.94
15
TIEROD
5020636-067
Unavailable
16
CLIP, PLASTIC(10)
4020139
$4.79
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
18
BLOCK, CTR.STRG.
5130889
$139.68
19
WASHER,WAVE(10)
7555735
$3.99
20
BUSHING
3563907
$3.99
20
BUSHING
3563907
$3.99
21
FITTING,LUB/VEN(10)
7080561
$4.79
21
FITTING,LUB/VEN(10)
7080561
$4.79
22
STRG.ASM,CTR. (Incl., 20, 21)
1822212
Unavailable
23
BOLT(10)
7515528
$8.79
24
BUSHING
5010322
Unavailable
25
WASHER(10)
7555721
$1.49
26
LOCK WASHER(10)
7553201
$3.99
27
BOLT(10)
7512681
Unavailable
28
BOLT(10)
7512404
$3.99
29
BOLT(10) Substituted by 7515492
7512410
Unavailable
30
ROD END,LH Substituted by 7060164
7060124
$48.56
31
ROD, DRAG, LINK
5333144
Unavailable
32
STRAP, BLK
7080272
Unavailable
33
POST,STRG,BLK.
1823157-067
Unavailable
34
NUT-5/16-18 NYLOK-Y
7542324
$1.49
35
BOLT(10) Substituted by 7512377
7512394
Unavailable
36
BOLT-CARRIAGE(10)
7512263
$3.99
37
SPEED NUT(10)
7670021
$6.99
