SEAT and GAS TANK ASSEMBLY TRAIL DELUXE 0952262 (4928862886A010)

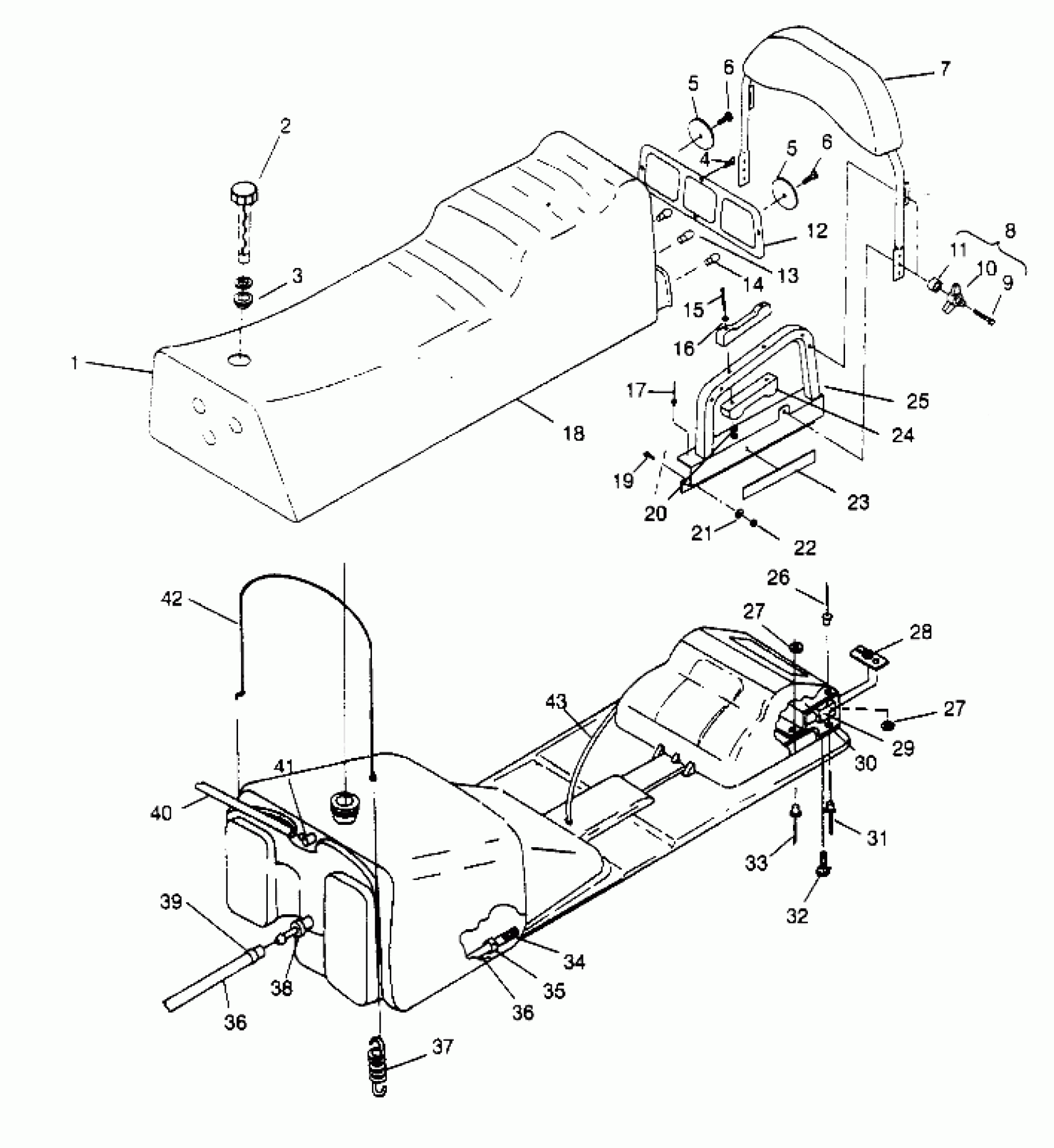

Polaris TRAIL - 0952761 SEAT and GAS TANK ASSEMBLY TRAIL DELUXE 0952262 (4928862886A010) Diagram
#
1
SEAT ASM, 2-UP (Incl. 4, 12-18, 26-43)
2681751
Unavailable
2
CAP,GAS,W/GAUGE
2511248
$44.51
3
GROMMET,FUELTANK
5410815
Unavailable
4
SCREW(10)
7511840
Unavailable
5
REFLECTOR (Euro)
5430781
Unavailable
5
REFLECTOR (Euro)
5430781
Unavailable
6
SCREW(10) (Euro)
7511856
Unavailable
6
SCREW(10) (Euro)
7511856
Unavailable
7
COVER,BACKREST ASM. Substituted by 2681265
2681790
Unavailable
7
BACKREST ASM. Substituted by 2681356
2681789
Unavailable
8
KNOB ASM,BACKREST
2670130
Unavailable
9
SCREW(10)
7515352
Unavailable
10
Knob, Backrest
5630386-067
$20.22
11
SPACER
5431285
Unavailable
12
LENS,TAILLIGHT
5430423
Unavailable
13
Bulb, Brakelight
4030045
Unavailable
14
BULB,TAILLIGHT(10)
4030024
$4.84
15
SCREW(10)
7510504
$6.76
16
WASHER(10)
7555783
$3.99
17
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
COVER,SEAT,2-UP
2681752
Unavailable
19
BOLT(10) Substituted by 7512325
7515363
Unavailable
20
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
21
WASHER(10) Substituted by 7558402
7555770
Unavailable
22
NUT, NYLOK(10)
7542327
$4.79
23
REFLECTOR RED
2670070
$9.91
24
GRIP, HAND Substituted by 5433383
5431015
$19.68
25
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
25
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
26
RIVET, BLIND(50)
7621467
$1.49
27
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
27
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
28
NUT,RETAINER-WELD.(10)
7542147
$17.59
29
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
30
COVER,T/L PROTECTOR
5431436
$21.43
31
RIVET(50)
7621301
$3.99
32
SCREW(10)
7512242
$2.39
33
RIVET(50)
7621460
$1.49
34
FUELPICKUP,W/STRAINER
7052037
$12.94
35
RING, COMPRESSION(10)
7080402
$1.60
36
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
36
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
37
SPRING-EXHAUST(10)
7042029
$4.84
38
FITTING - OUTLET(10)
7052023
$24.99
39
CLAMP, HOSE
7080490
Unavailable
40
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
41
FITTING,90 DEG,1/8,(10)
7052095
$4.79
42
CABLE,TANK RETENTION
7080473
Unavailable
43
HARNESS,TAILLIGHT
2460398
Unavailable
