OIL TANK / AIR BOX ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUR (4928862886C011)

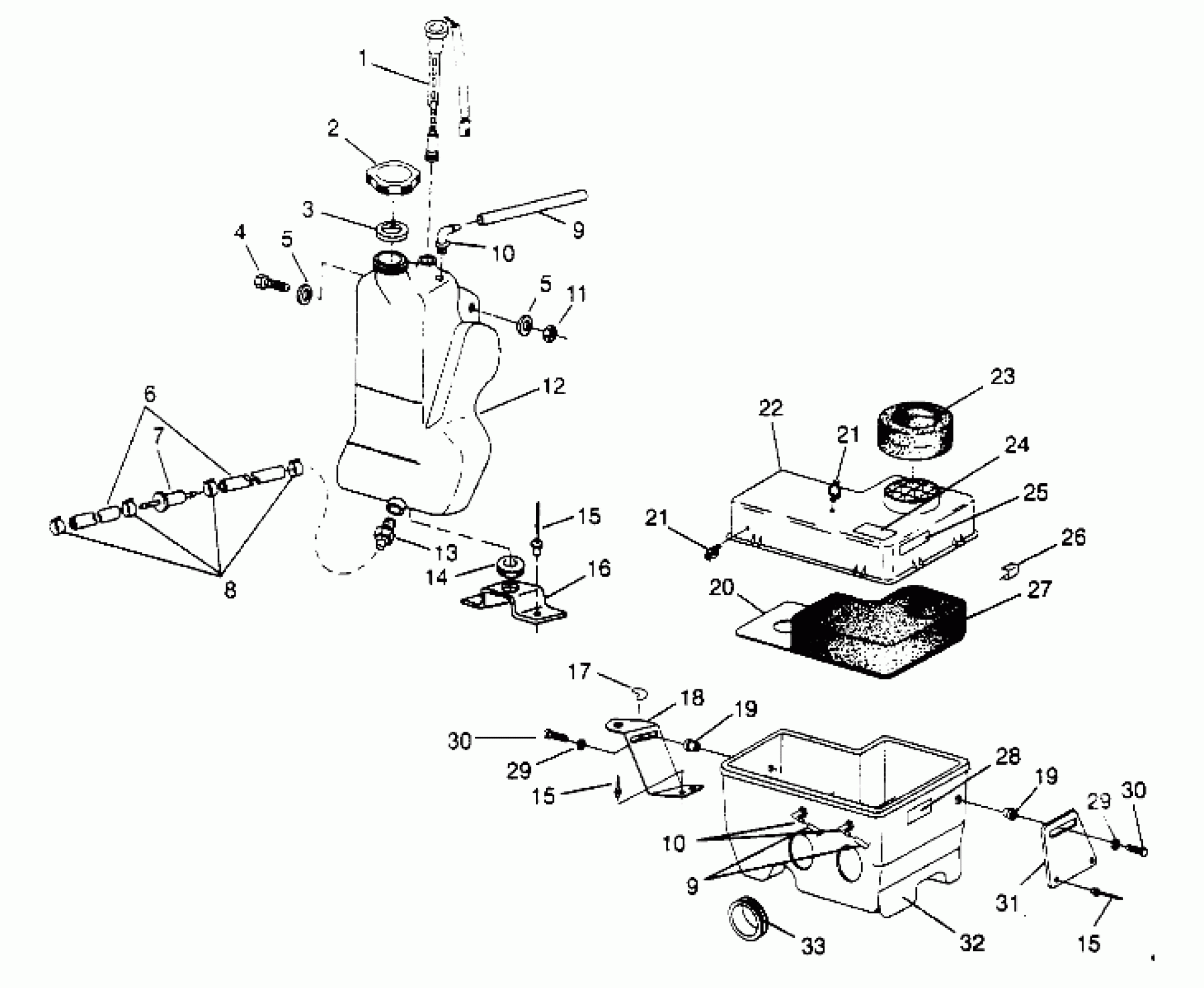

Polaris TRAIL - 0952761 OIL TANK / AIR BOX ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUR (4928862886C011) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512240
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FITTING,90 DEG,1/8,(10)
7052095
$4.79
10
FITTING,90 DEG,1/8,(10)
7052095
$4.79
11
NUT-LOCK(10)
7542122
$1.49
12
Tank, Oil
5431437
Unavailable
13
FITTING, OUTLET
7052042
$8.99
14
GROMMET RUBBER
5410021
Unavailable
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
16
BRACKET
5223985
Unavailable
17
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
18
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
20
PLATE,AIR SILENCER
5850075
$24.27
21
CLAMP,WIRE ROUTING(10)
7080409
$2.39
21
CLAMP,WIRE ROUTING(10)
7080409
$2.39
22
SILENCER,AIR,UPPER
5431496
Unavailable
23
DUCT ASM,AIR
2620057
$40.46
24
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
25
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
26
CLIP, AIR BOX,(10)
7670055
$7.99
27
BAFFLE ASM.
1253116
$59.99
28
DECAL, GREASING [No Longer Available]
7073426
$7.27
29
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
29
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
30
SCREW(10)
7512279
$1.49
30
SCREW(10)
7512279
$1.49
31
BRACKET, SILENCER
5211274
$9.70
32
SILENCER,INTAKE,DRILLED
5431791
$15.87
33
BOOT
5410403
$12.99
