NOSEPAN ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUROPEAN TRAIL DE (4928862886A012)

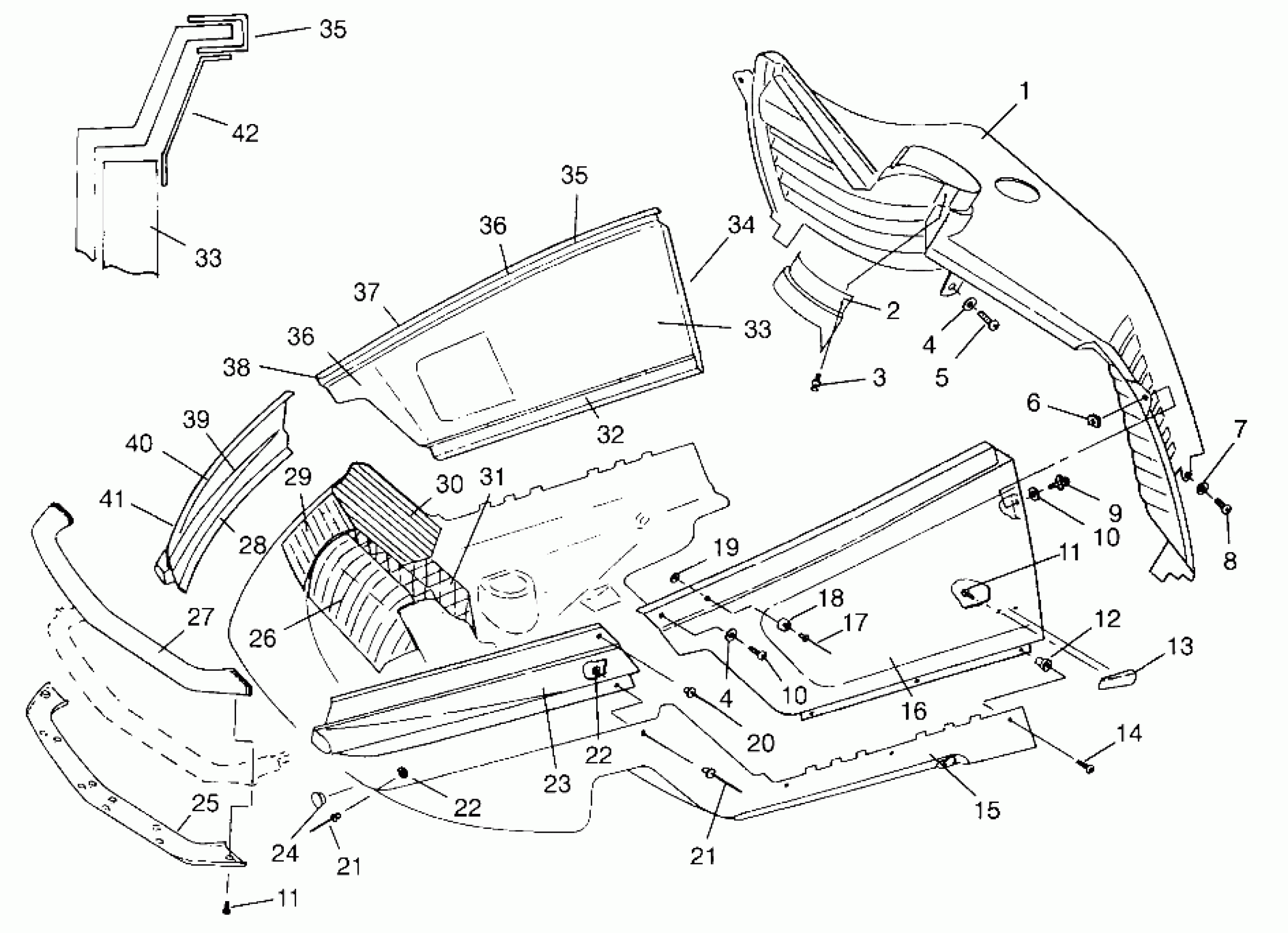

Polaris TRAIL - 0952761 NOSEPAN ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUROPEAN TRAIL DE (4928862886A012) Diagram
#
1
CONSOLE,EUROPE (Euro)
5431697
Unavailable
1
CONSOLE,BASIC
5431467
Unavailable
2
COVER,CONSOLE
5431535
$54.35
3
RIVET,PLASTI-LOC.(50)
7621509
$1.49
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
5
SCREW(10)
7512252
Unavailable
6
NUT,RETAINER(10)
7542138
Unavailable
7
WASHER(10)
7555792
$4.79
8
SCREW(10)
7512069
Unavailable
9
RETAINER,HOODLATCH
5431502
$12.94
10
WASHER,RUBBER(10)
7555884
$5.70
10
WASHER,RUBBER(10)
7555884
$5.70
11
SCREW(10)
7512068
$2.39
11
SCREW(10)
7512068
$2.39
12
NUT-WELL(10)
7541923
$5.59
13
BUMPER,SIDE PANEL Substituted by 5432456
5431662
Unavailable
14
SCREW(10)
7512279
$1.49
15
NOSEPAN, BLK.
5431899-070
$253.97
16
PANEL,LH,SIDE,BLK.MET.
5431742-177
Unavailable
16
FOAM,LH,SIDEPANEL
5811076
Unavailable
17
RIVET(50)
7621315
$3.99
18
BUMPER,RUBBER STOP Substituted by 5411440
5410843
Unavailable
19
RIVET BURR(50)
7555756
$2.99
20
RIVET(50)
7621472
$1.49
21
RIVET, BLIND(50)
7621467
$1.49
21
RIVET, BLIND(50)
7621467
$1.49
22
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
22
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
23
BUMPERSIDE,LH,BLK.
5431492-177
Unavailable
24
PLUG,NOSEPAN HOLE
5410820
$15.99
25
COVER,F.BUMP.BOTTOM
5431481
Unavailable
26
FOIL,F.SHOCK TOWER
5810937
Unavailable
27
COVER,F.BUMP.TOP,BLK.
5431480-070
Unavailable
28
FOIL,SIDE BUMP,LOWER
5811085
Unavailable
29
FOIL,SIDE.SHOCKTOWER
5810939
Unavailable
30
FOIL,RH,PAN
5810908
Unavailable
31
FOIL,LOW.SIDEPANEL
5811071
Unavailable
32
TAPE,FOIL,100 CM. (Service)
8360044-100
Unavailable
33
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
33
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
34
PANEL,RH,SIDE,FOIL,BLK.
2610008-177
Unavailable
35
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
35
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
36
FOIL,FR.SIDEPANEL
5811072
Unavailable
36
FOIL,FR.SIDEPANEL
5811072
Unavailable
37
PANEL,RH,SIDE,BLK. (Incl. 39-32)
2610008-070
Unavailable
38
FOIL,TOP,INNER,SIDEPANEL
5811074
Unavailable
39
FOIL,SIDE BUMP,MIDDLE
5811086
Unavailable
40
FOIL,SIDE BUMP,UPPER
5811084
Unavailable
41
BUMPER,RH.SIDE/FOIL,BLK.MT. Substituted by 2610010-177
2610006-177
Unavailable
42
FOIL,UP.SIDEPANEL
5811073
Unavailable
