HOOD ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUROPEAN TRAIL DE (4928862886A014)

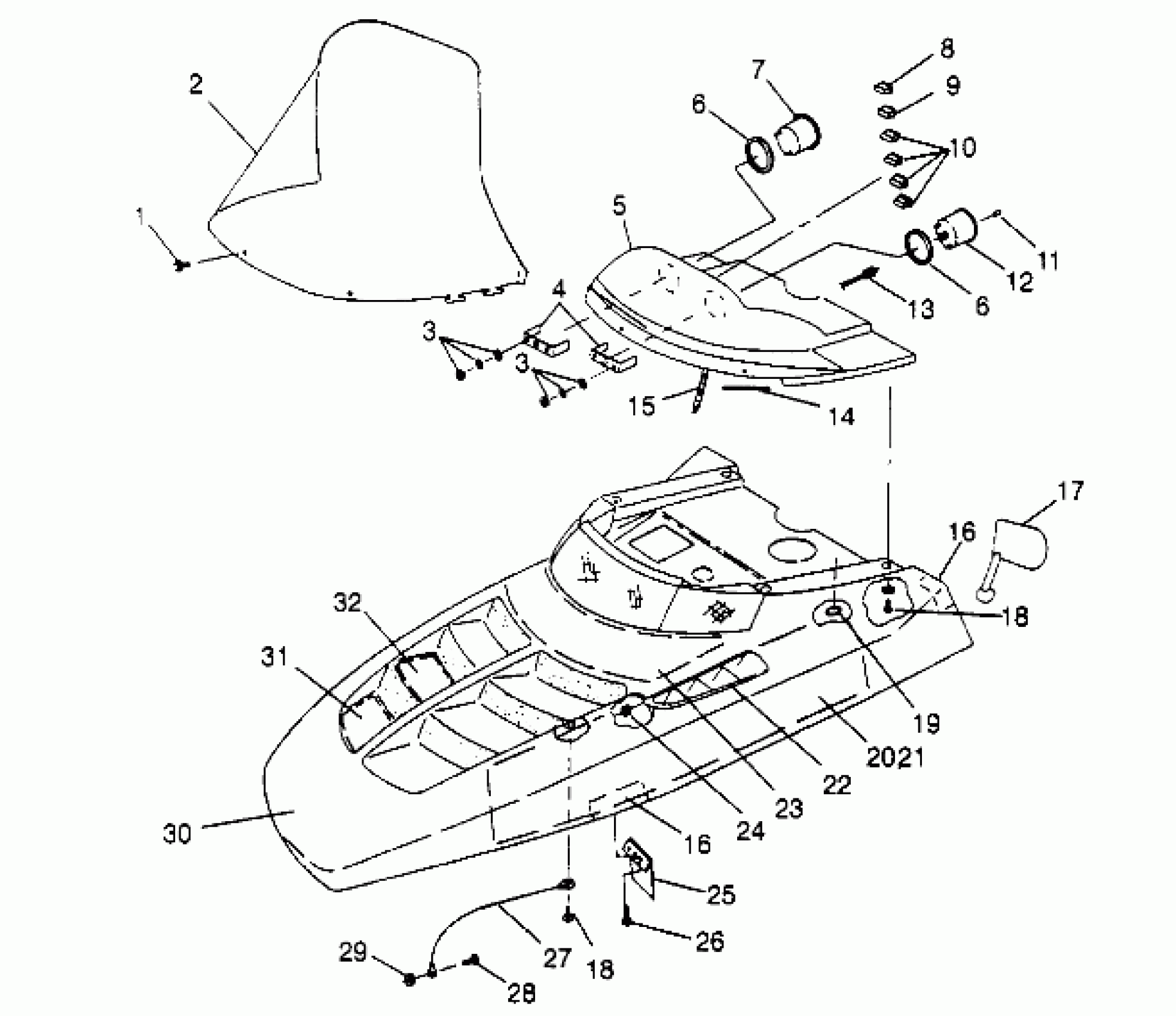

Polaris TRAIL - 0952761 HOOD ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUROPEAN TRAIL DE (4928862886A014) Diagram
#
1
RIVET,PLASTI-LOC.(50)
7621509
$1.49
2
WNDSHLD,HI CLEAR(TRL.DLX/XLT TOUR) (Deluxe)
5431465
$159.99
2
WNDSHLD,STD,SMOKE,EV. (Trail)
5431930
Unavailable
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
BRKT,SPEEDO/TACH
3280153
Unavailable
5
HSG.ASM,INST. (Incl. Warning Decals)
2652130
$78.39
5
HSG.ASM,INSTRUMENT
2652143
$70.39
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
7
BULB TAILLIGHT(10)
4030015
$4.03
7
TACHOMETER,BACKLIT(2P) (Trail) (Incl. 3, 4, 6)
3280149
Unavailable
7
PLUG,HOLE,(SKS) (Deluxe)
7080444
Unavailable
8
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
9
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
10
PLUG,INDIC.HOLE
5430967
$5.65
11
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
12
SPEEDOMETER,BACKLIT (Incl. 3, 4, 6)
3280148
Unavailable
12
SPEEDO,KILOMETER
3280159
$113.99
13
CABLE,SPEEDO.
3280094
$60.70
14
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
15
HARNESS,H/L,TRAIL
2460493
$37.62
16
FOIL,TAPE,1.5X6
5810949
$3.19
16
FOIL,TAPE,1.5X6
5810949
$3.19
17
PR,MIRRORS,R.VIEW (Deluxe)
2870938
Unavailable
18
SCREW(10)
7512070
Unavailable
18
SCREW(10)
7512070
Unavailable
19
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
20
FOAM,HOOD,RH.
5811047
Unavailable
20
FOIL,HOOD,RH.
5811048
Unavailable
21
FOAM,HOOD,LH.
5811046
Unavailable
22
VENT,LH,HD.TEAL,MET.
5431763-168
Unavailable
22
VENT,RH,HD.TEAL,MET.
5431764-168
Unavailable
23
FOAM,HOOD,CTR.
5810875
Unavailable
24
NUT, PUSH-ON(10)
7670068
$2.39
25
BAFFLE,FRONT
5240552
Unavailable
26
SCREW(10)
7511861
Unavailable
27
CABLE,HOOD RETAINER
7080521
$24.27
28
SCREW(10)
7511930
$2.39
29
NUT FLEX LOC(10)
7541906
$3.19
30
HOOD,F/C,TEAL,FOAM/FOIL (Incl. 16, 20-23, 31, 32, 24)
2631630-168
Unavailable
31
FOIL,HOOD,FRONT
5810874
Unavailable
32
FOIL,HOOD,CTR.
5810873
Unavailable
