FRONT TORQUE ARM ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUROP (4928862886C005)

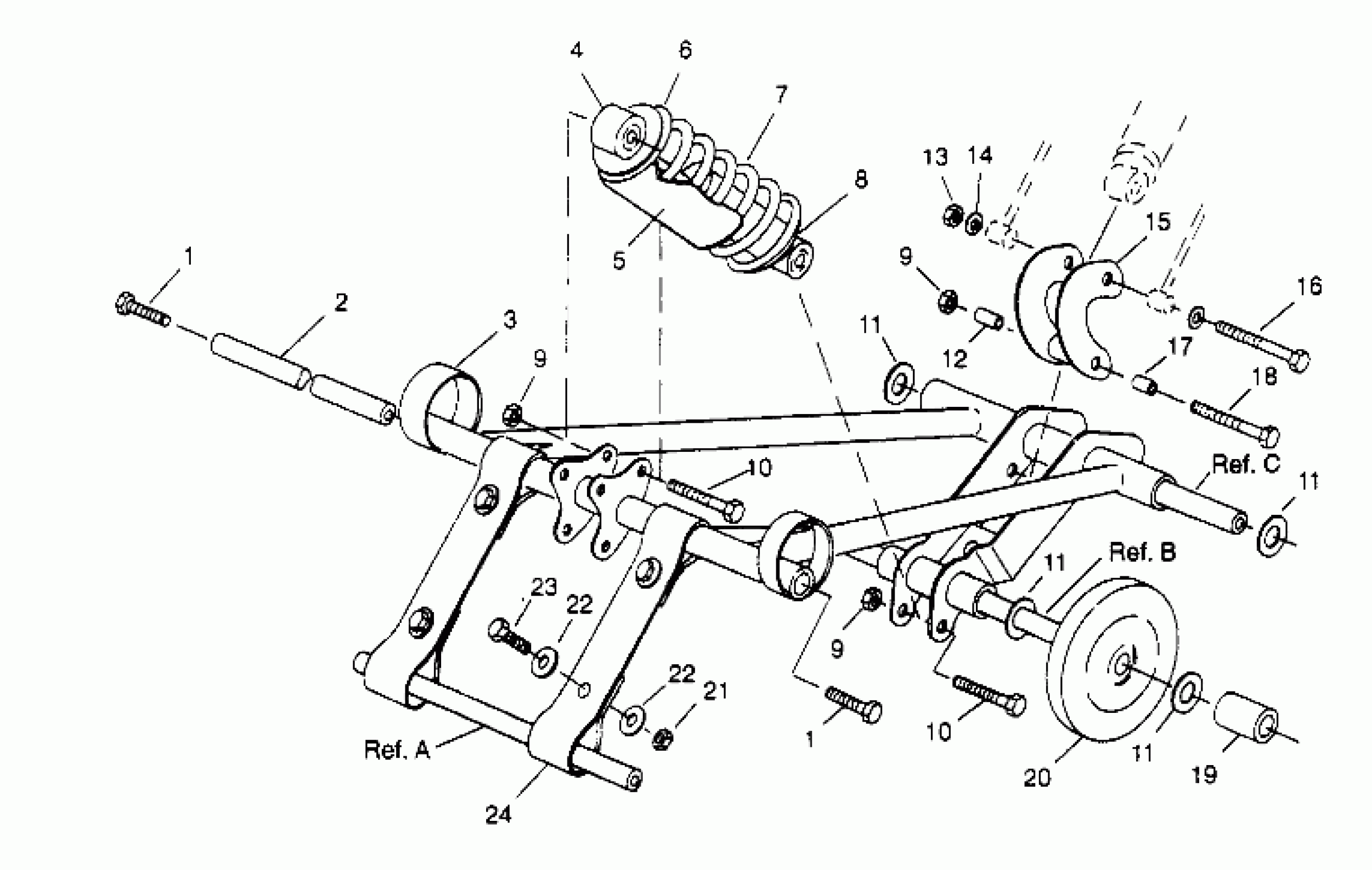

Polaris TRAIL - 0952761 FRONT TORQUE ARM ASSEMBLY TRAIL 0952761, TRAIL DELUXE 0952262, and EUROP (4928862886C005) Diagram
#
Description
Price
1
BOLT(10)
7515432
Unavailable
1
BOLT(10)
7515432
Unavailable
2
SHAFT,MOUNTING
5010149
Unavailable
3
ARM,FR.TORQUE,BLK.
1540794-067
Unavailable
4
SHOCK,CTR.SUSP.
7041281
Unavailable
5
SHIELD-SPRING
5430671
$24.27
6
RETAINER-TOP
5220225
$10.39
7
SPRING-SHOCK SUSP
7041140
Unavailable
8
SPACER,SHOCK RETAINER(10)
5210953
$6.39
9
NUT-LOCK(10)
7542439
$1.49
9
NUT-LOCK(10)
7542439
$1.49
9
NUT-LOCK(10)
7542439
$1.49
10
BOLT(10)
7515415
$1.49
10
BOLT(10)
7515415
$1.49
11
MACHINERY BUSHING(10)
7556301
$3.19
11
MACHINERY BUSHING(10)
7556301
$3.19
11
MACHINERY BUSHING(10)
7556301
$3.19
11
MACHINERY BUSHING(10)
7556301
$3.19
12
BUSHING,PIVOT TUBE
5020561
$1.59
13
NUT FLEX LOC,(10)
7542402
$6.39
14
WASHER(10) Substituted by 7555806
7555720
$0.79
15
SHOCK ARM WELD,BLK.
1540791-067
$55.56
16
BOLT(10)
7515525
Unavailable
17
Spacer
5333028
$1.59
18
BOLT(10)
7515438
$4.79
19
SPACER, OUTER
5332784
Unavailable
20
Asm., Bogie Wheel (See Pg. A30, Ref. 24)
-------
Unavailable
21
NUT-5/16-18 NYLOK-Y
7542324
$1.49
22
WASHER(10)
7555716
$1.59
22
WASHER(10)
7555716
$1.59
23
BOLT(10)
7515307
$3.99
24
STRAP, LIMITER
5410397
Unavailable
