CARBURETOR TRAIL 0950761, TRAIL DELUXE 0950262 and EUROPEAN TRAIL DELUXE E (4928862886D003)

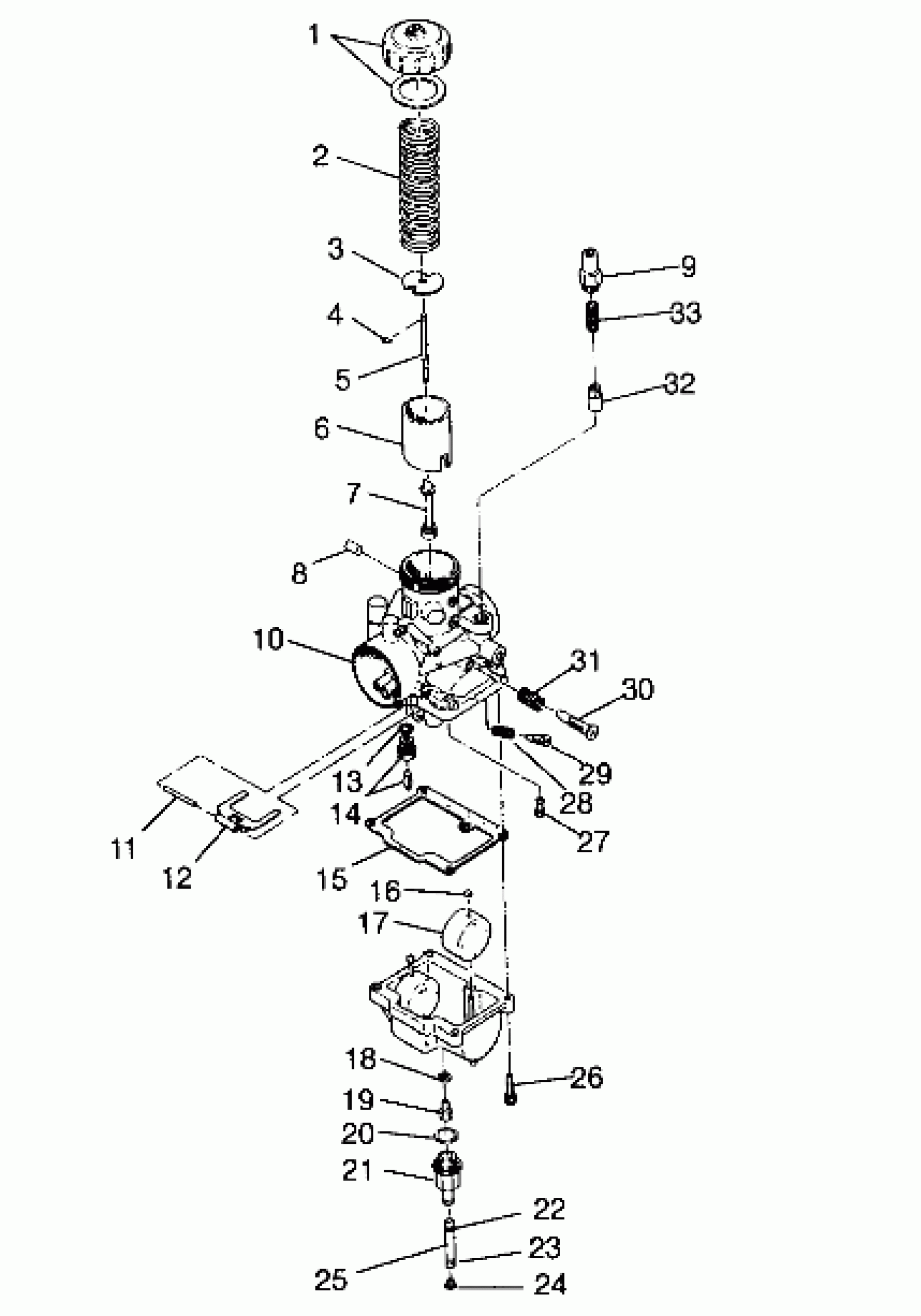

Polaris TRAIL - 0952761 CARBURETOR TRAIL 0950761, TRAIL DELUXE 0950262 and EUROPEAN TRAIL DELUXE E (4928862886D003) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE (6DH7-3)
3130329
Unavailable
6
VALVE,THROTTLE,(3.0) (3.0)
3130372
$52.60
7
NEEDLE JET (P-8)
3130421
Unavailable
8
CAP
3130479
$14.56
9
HOLDER,GUIDE
3130199
$28.32
10
CARBURETOR (Incl. 10-
3130548
Unavailable
11
PIN, FLOAT Substituted by 3130361
3130235
$8.89
12
ARM,FLOAT
3130018
$24.27
13
PACKING(10)
3130017
$4.03
14
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
15
PACKING,FLOAT CHAMBER
3130020
$16.17
16
CAP,(10)
3130237
$4.03
17
FLOAT ASM.
3130430
$43.56
18
WASHER (10)
3130014
$1.59
19
JET,MAIN,#240 Substituted by 3130127 (#240)
3130549
Unavailable
20
O RING
3130239
Unavailable
21
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
22
CLAMP,SPRING,(10)
7080534
$1.59
23
CLAMP,HOSE(10)
7080544
Unavailable
24
PLUG,TRAP
5431893
$12.94
25
DESC NOT_AVAILABLE
8450045-600
Unavailable
26
SCREW & WASHER(10)
3130025
$3.19
27
JET,PILOT,#35(10) (#35)
3130066
$8.89
28
SPRING,AIR ADJUST
3130012
$8.89
29
SCREW,AIR
3130011
$19.99
30
SCREW,THROTTLE STOP
3130009
$19.99
31
SPRING,THROTTLE ADJ.
3130010
$8.89
32
Asm., Plunger
3130328
$32.37
33
SPRING,PLUNGER
3130006
$8.89
