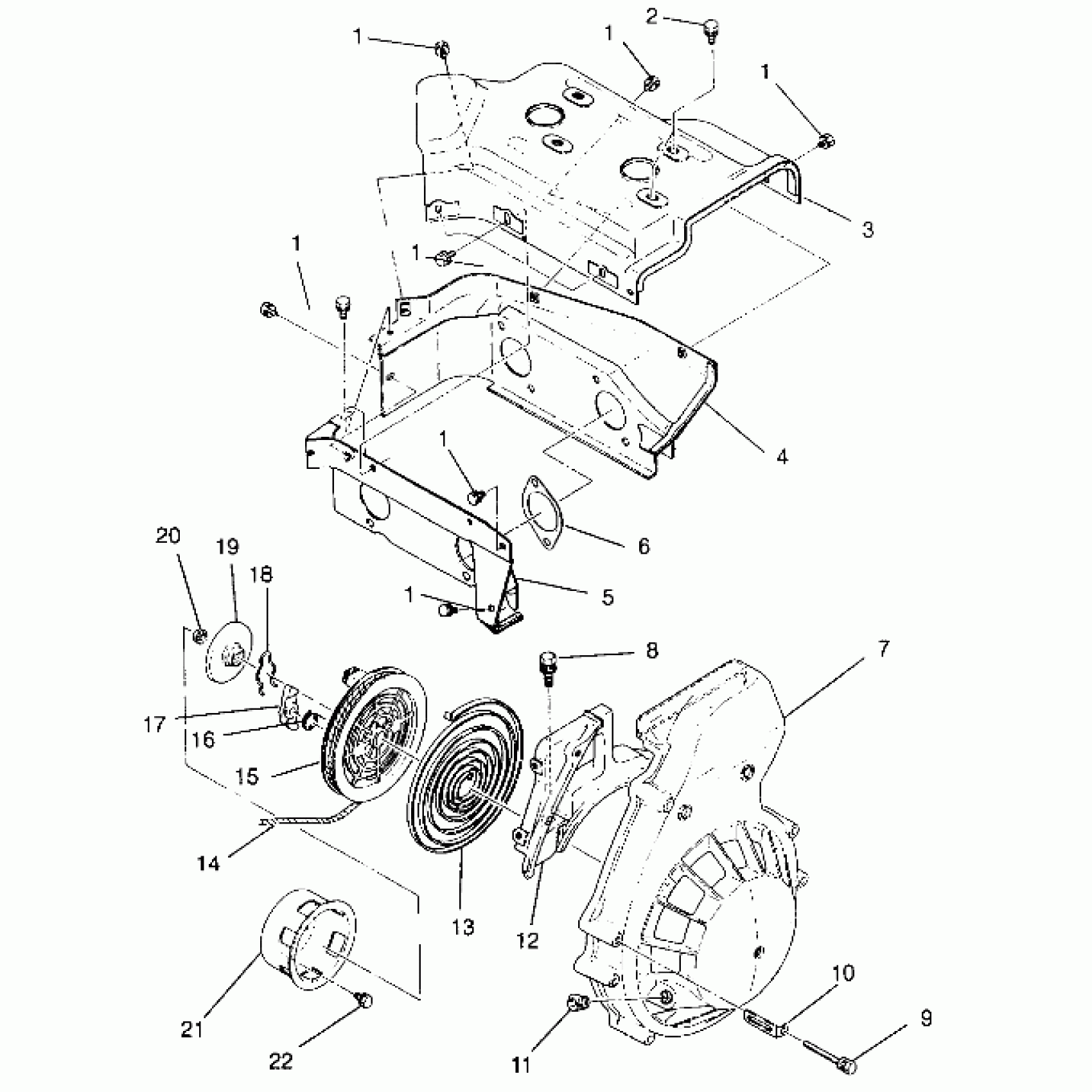

Polaris TRAIL - 0952761 BLOWER HOUSING & RECOIL STARTER ASSEMBLY TRAIL 0950761, TRAIL DELUXE 09502 (4928862886D005) Diagram

#

Description
Price

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

2

BOLT&WASHER ,(10)

3083840

Unavailable

3

BAFFLE,CYL,TOP

3085010

Unavailable

4

BAFFLE,CYL.#2

3085008

Unavailable

5

BAFFLE,CYL.#3 (Incl. 6)

3085009

Unavailable

6

GASKET, INTAKE

3084027

Unavailable

7

RECOIL STARTER (Incl. 7, 11, 13, 15-20)

3083547

Unavailable

7

CASE, STARTER

3083548

Unavailable

8

BOLT&WASHER ASM.

3084225

$3.99

9

BOLT&WASHER ASM.

3083550

Unavailable

10

CLAM(10)

3083187

Unavailable

11

GUIDE-ROPE

3083107

Unavailable

12

HOUSING,BLOWER,#2

3083697

Unavailable

13

Spring, Spiral

3083376

$179.11

14

ROPE,100 FT,NYL.STARTER

2870621

$34.99

15

REEL, REWIND

3083377

$56.65

16

Spring, Return

3083463

$4.03

17

Ratchet

3083378

$20.22

18

Spring, Friction

3083379

$24.27

19

Plate, Friction

3083464

$28.32

20

NUT, FLANGE ,(10)

3083381

$2.99

21

PULLEY, STARTER

3083549

Unavailable

22

BOLT,(10)

3081665

$3.19
