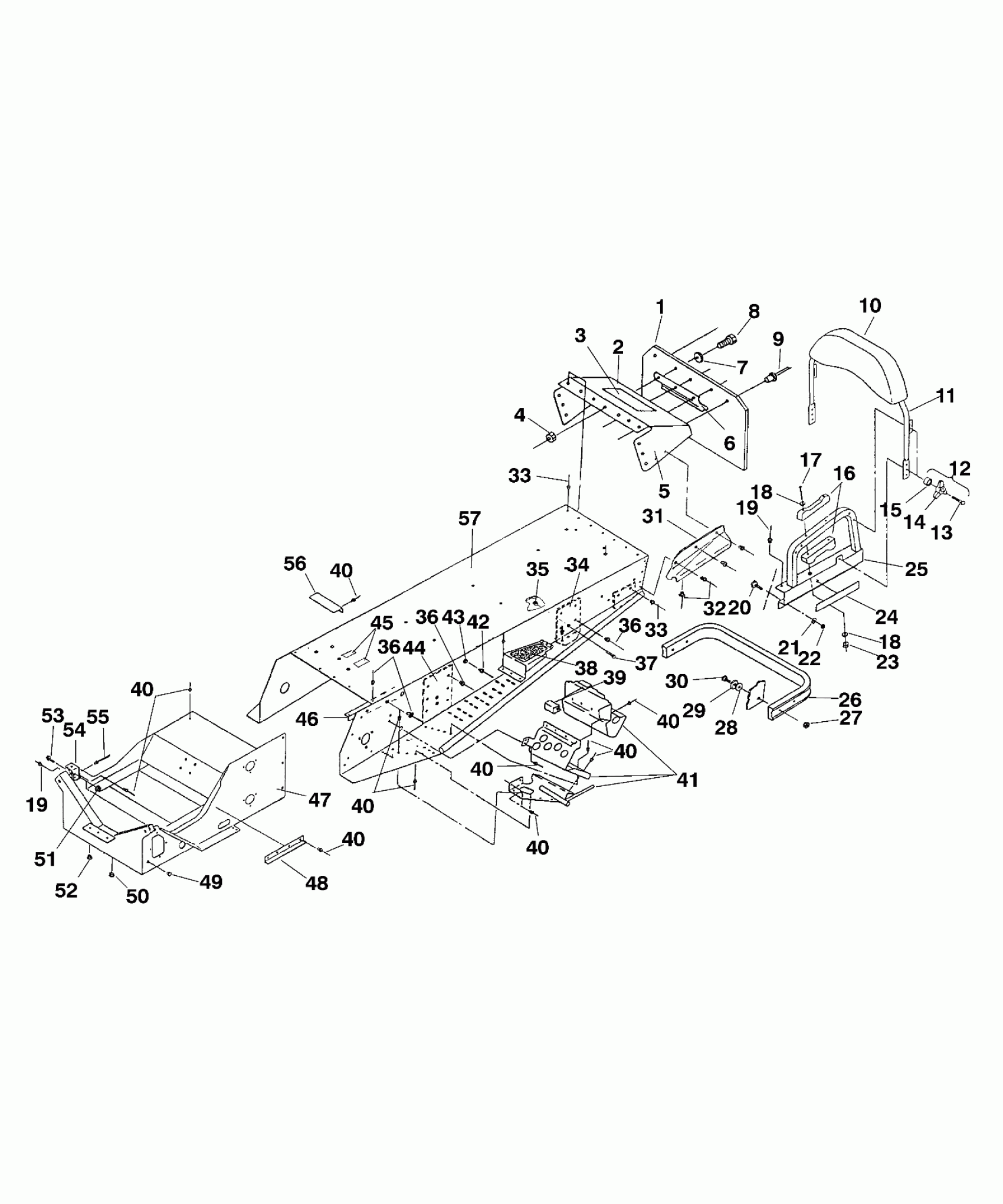

Polaris TRAIL - 0940761 TUNNEL ASSEMBLY - 0940262 (4924972497a005) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106 (Silver)
5410394
$121.02
2
DECAL,TRACK/SEAT(CPSC) (Black)
7074254
Unavailable
3
DECAL,'TRLDLX'CLOSEOFF(94 DLX.)
7073943
Unavailable
4
NUT(10)
7541925
$1.49
5
PANEL,R.CLOSE-OFF ASM.
1011799
$32.95
6
RETAINER, FLAP Substituted by 5241874-067
5222659-067
Unavailable
7
WASHER, FLAT(10)
7558201
$5.79
8
SCREW(10)
7511930
$2.39
9
POP RIVET(50)
7621418
$1.49
10
COVER,B'REST(93TRLDLX)
2681630
$216.17
11
BACKREST ASM,COOL/SLATE
2681629
Unavailable
12
KNOB ASM,BACKREST
2670130
Unavailable
13
SCREW(10)
7515352
Unavailable
14
Knob, Backrest
5630386-067
$20.22
15
SPACER
5431285
Unavailable
16
GRIP, HAND Substituted by 5433383
5431015
$19.68
17
SCREW(10)
7510504
$6.76
18
WASHER(10)
7555783
$3.99
18
WASHER(10)
7555783
$3.99
19
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
RIVET,INTERLOCK,B(50)
7661638
$1.49
20
BOLT(10) Substituted by 7512325
7515363
Unavailable
21
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
22
NUT, NYLOK(10)
7542327
$4.79
23
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
24
REFLECTOR RED
2670070
$9.91
25
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
25
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
26
BUMPER, REAR Substituted by 2670122
5224420
Unavailable
27
RIVNUT(10)
7542130
$6.23
28
LOCK WASHER(10)
7552801
$1.59
29
WASHER(10)
7558301
$1.49
30
BOLT(10)
7512240
$3.99
31
SKIRT,LH,SNOW,BLK.
5431627-070
$26.98
31
SKIRT,RH,SNOW,BLK.
5431645-070
$31.35
32
RIVET,3/16X.402(50)
7621432
$1.49
33
RIVET Substituted by 7661829
7661828
Unavailable
33
RIVET Substituted by 7661829
7661828
Unavailable
34
BRKT,RH.REAR SUSP.
1011906-067
Unavailable
34
BRKT,LH.REAR SUSP
1011905-067
Unavailable
35
NUT(10)
7542423
$3.99
36
RIVET,(50)
7661825
$1.49
36
RIVET,(50)
7661825
$1.49
36
RIVET,(50)
7661825
$1.49
37
BOLT(10) Substituted by 7515494
7515482
Unavailable
38
FOOTREST,LH REAR
5220893
Unavailable
38
FOOTREST,RH REAR
5220894
$32.15
38
PAD,LH FOOT SAFETY
5830007
$7.89
38
PAD,RH FOOT SAFETY
5830008
$4.92
39
EXTRUSION,CLUTCHGUARD
5521238
$6.46
40
RIVET-3/16-.090-.290
7661637
$1.49
40
RIVET-3/16-.090-.290
7661637
$1.49
40
RIVET-3/16-.090-.290
7661637
$1.49
40
RIVET-3/16-.090-.290
7661637
$1.49
40
RIVET-3/16-.090-.290
7661637
$1.49
40
RIVET-3/16-.090-.290
7661637
$1.49
40
RIVET-3/16-.090-.290
7661637
$1.49
40
RIVET-3/16-.090-.290
7661637
$1.49
41
FOOTREST ASM,LH
1011890
Unavailable
41
FOOTREST ASM, RH
1011891
$164.79
42
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
43
SNAP-MALE(10)
7080227
Unavailable
44
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
45
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
46
BRACE,TUNNEL REINF. Substituted by 5240242
5240265
Unavailable
47
BULKHEAD,(94TRAIL) Substituted by 1011959-067
1011959
Unavailable
48
GUARD
5223789
Unavailable
49
PLUG, HOLE(10)
7080416
$5.65
50
PLUG-HOLE
7080398
$4.84
51
NUT LOCK(10)
7542321
$1.49
52
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
53
SCREW(10)
7512307
$3.99
54
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
55
RIVET(50)
7621452
$1.49
56
BRKT, TOOL BOX
5220973
Unavailable
57
TUNNEL ASM, (SKS) (Incl. 5,34)
1011961
$366.65
